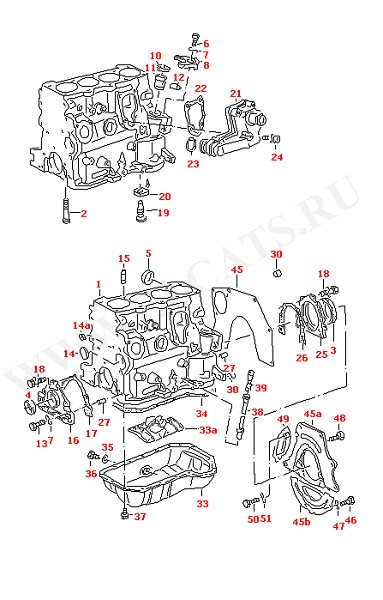

Оригинальный
номер |
Название |
Заказ |
| (1) |
051103101A |
cylinder block with pistons |
|
| (1) |
037103101P |
cylinder block with pistons |
|
| (1) |
050103101E |
cylinder block with pistons |
|
| (1) |
051103101C |
cylinder block with pistons |
|
| (12) |
N 0162011 |
cup rivet AK4,8X14 |
|
| (14A) |
N 0119077 |
locking cover A14 |
|
| (15) |
037103139A |
parallel dowel pin 4MM |
|
| (15) |
037103139 |
parallel dowel pin 8MM |
|
| (16) |
051103152 |
sealing flange front |
|
| (17) |
026103161B |
gasket |
|
| (26) |
026103181B |
gasket |
|
| (3) |
068198171 |
repair kit for sealing flange |
|
| (33) |
051103601 |
oil sump |
|
| (34) |
044103609D |
gasket |
|
| (37) |
N 90592703 |
bolt, hex. hd. with shoulder, self-locking M6X16 |
|
| (45B) |
068103648K |
cover panel lower |
|
| (48) |
N 0143401 |
hexagonal head bolt M6X10 |
|
| (49) |
038103645A |
cover plate |
|
| - |
867971928 |
plug 38 |
|
| - |
037198011C |
set of gaskets for cylinder block |
|
| - |
037198011G |
set of gaskets for cylinder block |
|
| - |
N 0122265 |
spring washer B6X12X0,5 |
|
| 11 |
056103541 |
bush |
|
| 12 |
056103117 |
plug 6,4MM |
|
| 13 |
N 01024016 |
hexagonal head bolt M8X20 |
|
| 14 |
036103113A |
locking cover 36,6 |
|
| 15 |
026103139 |
parallel dowel pin 6M6X20 |
|
| 18 |
N 01021612 |
hexagonal head bolt also use: M6X18 N 012 226 5 |
|
| 2 |
N 10263801 |
hexagonal head bolt M10X65 |
|
| 21 |
048103772C |
breather assy. |
|
| 22 |
048103771 |
gasket |
|
| 23 |
N 90467301 |
round seal 34,2X3 |
|
| 24 |
N 10022701 |
allen key head bolt M8X38Z3 |
|
| 25 |
068103171F |
sealing flange rear |
|
| 25 |
028103171B |
sealing flange rear |
|
| 27 |
N 0432072 |
parallel dowel pin 8H8X14 |
|
| 30 |
022103139 |
dowel sleeve 16X13,5 |
|
| 33A |
051103623 |
baffle |
|
| 35 |
N 0138492 |
seal A14X20 |
|
| 36 |
N 90288901 |
sealing plug M14X1,5X16 |
|
| 38 |
049103634 |
tube for oil dipstick |
|
| 39 |
053103663 |
guide funnel |
|
| 4 |
068103085E |
oil seal 47X10 |
|
| 45 |
068105551 |
intermediate plate |
|
| 45A |
068103621E |
cover panel upper |
|
| 46 |
N 0102276 |
bolt, hexagon head self-locking M7X12 |
|
| 47 |
N 0122345 |
spring washer B7X14X0,8 |
|
| 48 |
N 90483201 |
hexagonal head bolt M6X8 |
|
| 5 |
036103113A |
locking cover 36,6 |
|
| 50 |
N 0102085 |
hexagonal head bolt M6X8 |
|
| 51 |
N 0122265 |
spring washer B6X12X0,5 |
|
| 7 |
N 01224110 |
spring washer B8X15X0,8 |
|
