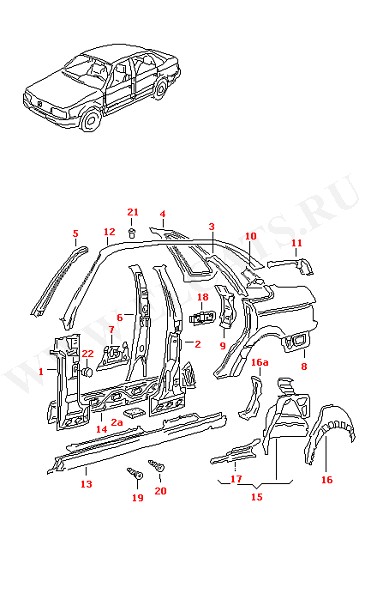

Оригинальный
номер |
Название |
Заказ |
| (1) |
357809206A |
a-pillar, outer right lower |
|
| (10) |
3A5809616 |
hinge reinforcement right |
|
| (11) |
357809642 |
water drain channel right |
|
| (12) |
357809672A |
roof frame F 31-P-330 001>>* right |
|
| (12) |
357809672A |
roof frame F >> 31-P-330 000* right |
|
| (13) |
357809675B |
side member F 31-P-000 001>> left outer |
|
| (13) |
357809676B |
side member F 31-P-000 001>> right outer |
|
| (13) |
357809676 |
side member F >> 31-N-400 000 right outer |
|
| (14) |
357810314 |
helper reinforcement side member right |
|
| (15) |
357803424B |
wheel housingliner also use: right rear 357 813 568 B 3A0 802 400 |
|
| (16) |
357803424B |
wheel housingliner right rear outer |
|
| (2) |
3A0809222 |
b-pillar, outer F 31-P-300 001>> right |
|
| (2) |
3A0809222 |
b-pillar, outer F >> 31-P-300 000* right |
|
| (2) |
3A0809221 |
b-pillar, outer F 31-P-300 001>> left |
|
| (3) |
357809354 |
c-pillar, outer right |
|
| (4) |
357809406 |
side panel, inner right upper |
|
| (5) |
357809438 |
a-pillar, inner right upper |
|
| (6) |
3A0809444 |
b-pillar, inner right |
|
| (7) |
357810318 |
insert piece b-pillar, inner right right lower |
|
| (8) |
357809606B |
side panel right outer |
|
| (9) |
3A5809612A |
reinforcement for pillar c right inner |
|
| - |
357804985 |
molded piece b-pillar lower |
|
| - |
357813568B |
corner panel right rear |
|
| - |
357813567B |
corner panel left rear |
|
| - |
3A0802400 |
wheel housing rear right inner |
|
| - |
3A0802399 |
wheel housing rear left inner |
|
| 1 |
357809205A |
a-pillar, outer left lower |
|
| 10 |
3A5809615 |
hinge reinforcement left |
|
| 11 |
357809641 |
water drain channel left |
|
| 12 |
357809671A |
roof frame left |
|
| 13 |
357809675 |
side member F >> 31-N-400 000 left outer |
|
| 14 |
357810313 |
helper reinforcement side member left |
|
| 15 |
357803423B |
wheel housingliner also use: left rear 357 813 567 B 3A0 802 399 |
|
| 16 |
357803423B |
wheel housingliner left rear outer |
|
| 18 |
357803483 |
housing for fuel filler neck |
|
| 19 |
N 90175701 |
weld pin order unit 100 5X12 |
|
| 2 |
3A0809221 |
b-pillar, outer F >> 31-P-300 000* left |
|
| 20 |
N 90231601 |
weld pin order unit 100 FD-5X25 |
|
| 3 |
357809353 |
c-pillar, outer left |
|
| 4 |
357809405 |
side panel, inner left upper |
|
| 5 |
357809437 |
a-pillar, inner left upper |
|
| 6 |
3A0809443 |
b-pillar, inner left |
|
| 7 |
3A0810317 |
insert plate b-pillar, inner left lower left lower |
|
| 8 |
357809605B |
side panel left outer |
|
| 9 |
3A5809611A |
reinforcement for pillar c left inner |
|
