Оригинальный
номер |
Название |
Заказ |
| (1) |

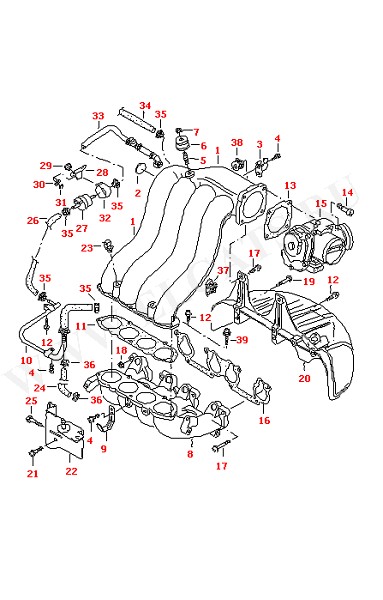

06A133203CF |
intake manifold - upper part also use: 12MM 030 133 335 A N 102 582 01 |
|
| (15) |
06A133062D |
throttle valve control unit |
|
| (20) |
06A133229N |
support |
|
| (22) |
06A133942 |
retaining panel |
|
| - |
030133335A |
cap 12MM |
|
| 10 |
06A133366C |
connecting hose |
|
| 11 |
06A129717 |
gasket |
|
| 12 |
N 90500601 |
hexagon socket head bolt with collar M6X22 |
|
| 13 |
028129748 |
gasket |
|
| 14 |
N 10408601 |
bolt, with polygon socket hd. (combi.) M6X50 |
|
| 16 |
037129717C |
gasket |
|
| 17 |
N 10226001 |
hexagon socket head bolt with collar M8X26 |
|
| 18 |
N 01508311 |
hexagon nut, shouldered M8 |
|
| 19 |
N 90425401 |
allen key head bolt (combi) M8X40 |
|
| 2 |
06A133672 |
locking cover 28 |
|
| 21 |
N 10239402 |
hexagon socket head bolt with collar M8X22 |
|
| 23 |
N 10331401 |
retainer A01-6XC13-6 |
|
| 24 |
06A133374N |
connecting hose 5,5X2,5X430 |
|
| 25 |
N 0195432 |
hexagon head bolt c/w shoulder M8X50 |
|
| 27 |
1C0906517A |
valve |
|
| 28 |
1J0133559 |
bracket for valve |
|
| 31 |
N 10009503 |
hexagon head bolt (combi) M6X18 |
|
| 32 |
535133459 |
support ring |
|
| 33 |
1J0133366E |
connecting hose |
|
| 34 |
1J0133778 |
vacuum hose |
|
| 35 |
N 10292201 |
spring-type clip A14X12 |
|
| 36 |
N 0245281 |
pipe clip LC8-12 |
|
| 37 |
06A133567 |
stop buffer |
|
| 4 |
N 10248001 |
hexagon socket head bolt with collar M6X14 |
|
| 8 |
06A133206B |
intake manifold - lower part |
|
| 9 |
06A133376 |
retaining panel |
|
