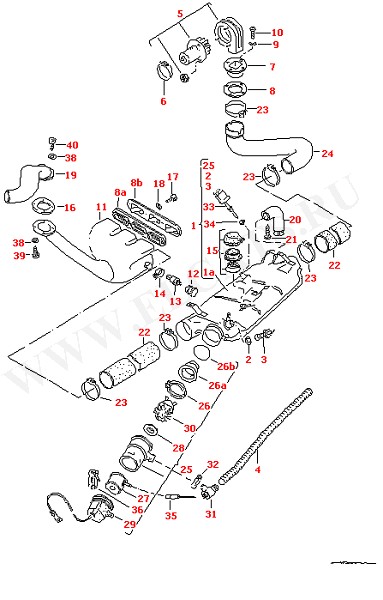

Оригинальный
номер |
Название |
Заказ |
| (1) |
281261105F |
heater complete with cable herness see illustration: 129-30+40 |
|
| (1) |
291261105F |
heater complete with cable herness see illustration: 129-30+40 |
|
| (22) |
N 90012205 |
hose for models with double cab 90X3X1300 |
|
| (29) |
211963037 |
protective cap |
|
| (3) |
251963319F |
glow plug |
|
| - |
291261387A |
tube warm air vent for models with wheelbase: 2950MM |
|
| - |
211035265 |
suppression condenser hot air fan motor |
|
| 1 |
281261105B |
heater complete with cable herness see illustration: 129-30+40 |
|
| 10 |
N 0139612 |
oval head panel screw ST3,9X13-F |
|
| 11 |
281261377B |
warm air vent |
|
| 12 |
411261293 |
plug |
|
| 13 |
211963261 |
temperature sensor |
|
| 14 |
N 0245065 |
pipe clip AL25-40 |
|
| 15 |
211963239 |
overheating switch |
|
| 16 |
281261393A |
gasket |
|
| 17 |
N 0139755 |
oval head panel screw ST4,8X19 |
|
| 18 |
N 0116511 |
washer 5,8X10X0,9 |
|
| 19 |
281261376 |
warm air outlet, upper part |
|
| 1A |
251261113D |
heat exchanger |
|
| 1A |
251261113C |
heat exchanger |
|
| 2 |
211261115B |
gasket |
|
| 20 |
251261603A |
exhaust pipe |
|
| 21 |
N 0139655 |
oval head panel screw B4,2X9,5 |
|
| 22 |
N 90012203 |
hose 90X3X500 |
|
| 23 |
N 0245083 |
pipe clip LA80-100 |
|
| 24 |
281261969 |
elbow |
|
| 25 |
281963031A |
motor (screened) for combustion air 12 V |
|
| 26 |
211261163 |
pipe clip |
|
| 26A |
211261845B |
housing with vanes |
|
| 26B |
004301185 |
seal |
|
| 27 |
411963025A |
round connector housing |
|
| 28 |
411963053 |
rubber support ring |
|
| 3 |
211963319A |
glow plug |
|
| 30 |
211963041 |
radial blower wheel |
|
| 31 |
251963097 |
combustion air valve |
|
| 32 |
N 0245077 |
pipe clip AL32-50 |
|
| 33 |
211963203 |
fuel cut-off |
|
| 34 |
211963207 |
double taper ring |
|
| 35 |
411963253 |
rd. connector sleeve housing |
|
| 36 |
411963071A |
contact breaker points AEG |
|
| 38 |
N 01152318 |
washer A5,3X10X1 |
|
| 39 |
N 0139694 |
oval head panel screw B4,8X16 |
|
| 4 |
211261129A |
hose 39,5X1010 |
|
| 40 |
N 0139705 |
oval head panel screw B4,8X9,5 |
|
| 5 |
281261193A |
hot air blower motor |
|
| 6 |
N 0245054 |
pipe clip LC50-70 |
|
| 7 |
281261965 |
connection piece |
|
| 8 |
281261369 |
gasket |
|
| 8A |
281261369A |
gasket |
|
| 8B |
281261379A |
trim |
|
| 9 |
N 0122243 |
spring washer B4X9X0,5 |
|
