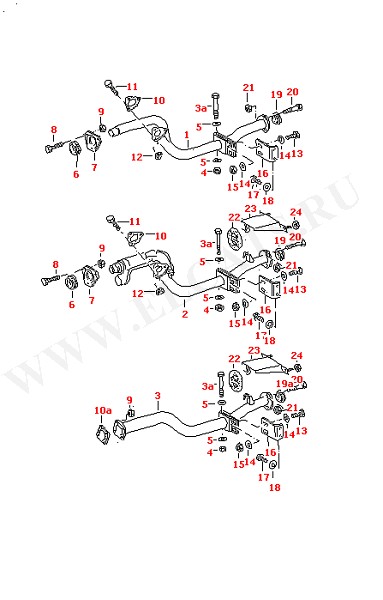

Оригинальный
номер |
Название |
Заказ |
| (1) |
075253101L |
exhaust pipe for models with wheelbase: F >> 28-H-006 070 F >> 28-J-025 000 F 28-D-007 274>> front 1296,5MM 2950MM |
|
| (1) |
075253101H |
exhaust pipe for models with engageable 4-wheel drive front |
|
| (16) |
075253307A |
retainer for models with power take-off |
|
| (2) |
073253101H |
exhaust pipe for models with engageable 4-wheel drive front |
|
| (2) |
073253101P |
exhaust pipe for models with wheelbase: front 1300,5 MM 2950 MM |
|
| (2) |
075253101L |
exhaust pipe for models with wheelbase: F 28-K-000 001>> front 1296,5MM 2950MM |
|
| (3) |
075253101B |
exhaust pipe permissible total weight: front 806MM 4600KG>> |
|
| (3) |
075253101D |
exhaust pipe for models with engageable 4-wheel drive front |
|
| (7) |
437253225B |
flange |
|
| (7) |
431253225A |
flange |
|
| (8) |
N 0103883 |
hexagonal head bolt M8X90 |
|
| (9) |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 1 |
073253101J |
exhaust pipe for models with wheelbase: F >> 28-H-006 070 F 28-D-007 274>> front 840,5MM 2500/3650MM |
|
| 10 |
433253115 |
gasket |
|
| 10A |
075253115 |
gasket |
|
| 11 |
N 0102754 |
hexagonal head bolt M10X35 |
|
| 12 |
N 10209005 |
hexagon nut, self-locking M10 |
|
| 13 |
N 01024222 |
hexagonal head bolt M8X25 |
|
| 14 |
N 90033301 |
washer B8,4X20X2,5 |
|
| 15 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 16 |
075253307B |
retainer |
|
| 17 |
N 01023820 |
hexagonal head bolt M8X15 |
|
| 18 |
N 90033301 |
washer B8,4X20X2,5 |
|
| 19 |
855253137A |
seal 50/50 |
|
| 19A |
447253137 |
seal 60/60 |
|
| 2 |
073253101F |
exhaust pipe for models with wheelbase: F 28-H-006 071>> front 840,5MM 2500/3650 |
|
| 20 |
N 01034510 |
hexagonal head bolt M8X45 |
|
| 21 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 22 |
8A0253147A |
retaining ring F 28-K-000 001>> F 28-K-004 001>>* |
|
| 23 |
075253457 |
outrigger with bracket for muffler F 28-K-000 001>> F 28-K-004 001>>* |
|
| 24 |
N 01100830 |
hexagonal nut M8 |
|
| 3 |
075253101M |
exhaust pipe for models with wheelbase: permissible total weight: front 1256MM 2950MM >> 4000KG |
|
| 3 |
075253101M |
exhaust pipe for models with wheelbase: permissible total weight: front 1256MM 2950MM 4600KG |
|
| 3A |
N 0103805 |
hexagonal head bolt M8X80 |
|
| 4 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 5 |
N 01152520 |
washer A8,4X16X1,6 |
|
| 6 |
076253117A |
seal |
|
| 7 |
076253225 |
flange |
|
| 8 |
N 0103533 |
hexagonal head bolt M8X42 |
|
| 9 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
