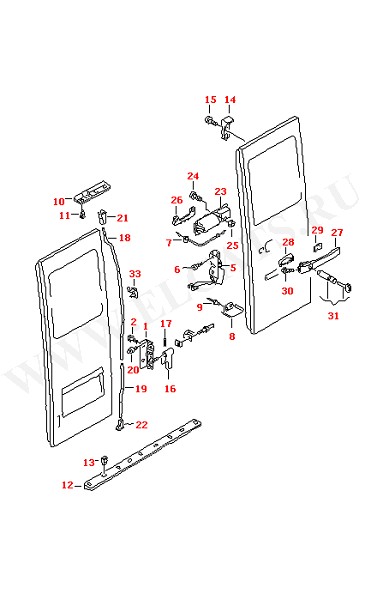

Оригинальный
номер |
Название |
Заказ |
|
2D1829313 U71 |
flannel grey |
|
|
2D1829309 U71 |
flannel grey |
|
| (13) |
N 90731101 |
locking cover 14X21X6,5 |
|
| (18) |
2D1827843B |
locking bar use if required: upper *>>2D-X-021000 2D1 827 310 |
|
| (2) |
N 0141395 |
fillister hd. bolt M6X12 |
|
| (31) |
107837217GA |
lock cylinder without key * to retain the one key * * system the key code * * number and/or chassis * * number must be quoted * * when ordering * |
|
| (5) |
2D2837016 |
door lock for vehicles with central locking system use if required: right 2D0 959 775 A N 013 961 2 |
|
| (5) |
2D2837016 |
door lock also use: right 2D0 959 775 A N 013 961 2 |
|
| - |
N 0139612 |
oval head panel screw ST3,9X13-F |
|
| - |
2D0959775A |
positioning motor for central locking system right |
|
| - |
G 052778A2 |
lock cylinder lubricant spray 50ML |
|
| - |
2D0959775C |
positioning motor for central locking system |
|
| 1 |
2D1827505 |
door lock left rear |
|
| 10 |
2D1827639 |
latch upper |
|
| 11 |
2D1867741 |
plug |
|
| 12 |
2D1863487 |
covering lower |
|
| 13 |
2D1867741 |
plug |
|
| 14 |
2D1827655A |
distance piece rear, upper |
|
| 15 |
N 10405601 |
torx socket fillister hd. bolt M6X14-E |
|
| 16 |
2D1827691 |
handle |
|
| 17 |
N 0133483 |
spring sleeve 3X24 |
|
| 18 |
2D1827843C |
locking bar for high wing door upper |
|
| 19 |
2D1827844 |
locking bar lower |
|
| 2 |
N 0141453 |
fillister hd. bolt M6X30 |
|
| 20 |
N 90743101 |
plug 4,5X8,5 |
|
| 21 |
2D1827847 |
locking bar guide upper |
|
| 22 |
2D1827848 |
locking bar guide lower |
|
| 23 |
2D1829309 |
door inner operating lever |
|
| 24 |
N 0141387 |
fillister hd. bolt M6X10 |
|
| 25 |
N 90648101 |
rivetted cap nut M6/0,7-3B |
|
| 26 |
2D1829313 |
trim door inner operating lever |
|
| 27 |
2D0837205 |
door handle, outer |
|
| 28 |
2D0837209 |
base left |
|
| 29 |
2D0837209A |
base right |
|
| 30 |
N 90967501 |
torx socket head panel screw 7X16-Q |
|
| 31 |
2D0837217 |
lock cylinder * cannot be used to restore * * the one key locking * * system !! * |
|
| 33 |
2D1827310 |
clip F 2D-X-021 001>>* |
|
| 5 |
2D1827506 |
door lock with mechanical operation for vehicles with child safety catch for vehicles with central locking system use if required: right rear 2D0 959 775 C N 013 961 2 |
|
| 6 |
N 90566602 |
torx socket fillister hd. bolt M6X16-H-V |
|
| 7 |
2D1827531 |
bowden cable right rear |
|
| 8 |
2D1827533 |
distance plate rear, lower |
|
| 9 |
N 90478601 |
pop-rivet A4,8X11X9,5 |
|
