Оригинальный
номер |
Название |
Заказ |
|

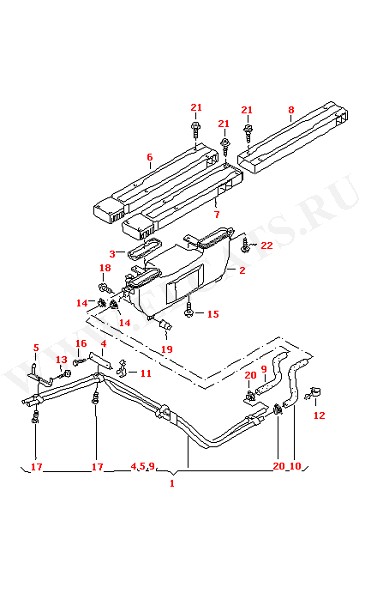

2D0819869A B41 |
satin black |
|
|
2D0819869B B41 |
satin black |
|
|
2D0819869 B41 |
satin black |
|
| (6) |
2D0819657 |
air duct for models with wheelbase: F 2D-3-020 502>> 3000MM |
|
| (7) |
2D0819657A |
air duct for models with wheelbase: F 2D-3-020 502>> 3550-4000MM |
|
| 1 |
2D0815097 |
water pipe |
|
| 10 |
2D0819896 |
water hose return |
|
| 11 |
443957818C |
cable tie 7X273-8 |
|
| 12 |
701971848D |
retainer, swivelling 14/25 |
|
| 13 |
N 0138905 |
hexagon head panel screw ST6,3X13-C |
|
| 14 |
N 0245107 |
pipe clip AL16-25 |
|
| 15 |
N 10155901 |
hexagon head bolt c/w shoulder M8X20 |
|
| 16 |
N 10156305 |
hexagon head bolt c/w shoulder M6X12 |
|
| 17 |
N 10181201 |
hexagonal head bolt M5X45 |
|
| 18 |
N 90300901 |
hexagon head bolt (combi) M6X18-S1 |
|
| 19 |
N 90597802 |
rivetted cap nut AM6/0,5-3 |
|
| 2 |
2D0819004 |
heater unit additional heat exchanger |
|
| 20 |
N 90655601 |
spring-type clip 27X12 |
|
| 21 |
N 10501101 |
wood screw, button head 6,0X45MM |
|
| 22 |
N 0139761 |
oval head panel screw ST6,3X13-C |
|
| 3 |
2D0819069 |
gasket 224X20X12 |
|
| 4 |
2D0819750A |
retainer water pipe |
|
| 5 |
2D0819750B |
retainer water pipe |
|
| 6 |
2D0819869 |
air duct for models with wheelbase: F >> 2D-3-020 501 3000MM |
|
| 7 |
2D0819869A |
air duct for models with wheelbase: F >> 2D-3-020 501 3550/4000MM |
|
| 8 |
2D0819869B |
air duct |
|
| 9 |
2D0819895 |
water hose feed |
|
