Оригинальный
номер |
Название |
Заказ |
|
2D1857227 E91 |
mistral (grey) |
|
|
2D1858837 U71 |
flannel grey |
|
|
2D2857227 E91 |
mistral (grey) |
|
|
2D1857228D E91 |
mistral (grey) |
|
|
2D2857228 E91 |
mistral (grey) |
|
|
2D2857228D E91 |
mistral (grey) |
|
|
2D2858838 U71 |
flannel grey |
|
|
2D0857233 01C |
satin black |
|
|
2D2857785 U71 |
flannel grey |
|
|
2D1857786 U71 |
flannel grey |
|
|
2D1858838 U71 |
flannel grey |
|
|
2D2858837 U71 |
flannel grey |
|
|
2D1858009A E91 |
mistral (grey) |
|
|
2D2857503C E91 |
mistral (grey) |
|
|
2D1857505 E91 |
mistral (grey) |
|
|
2D2858009 E91 |
mistral (grey) |
|
|
2D0858065 01C |
satin black |
|
|
2D2857053 01C |
satin black |
|
|
2D1857503C E91 |
mistral (grey) |
|
|
2D0857965 01C |
satin black |
|
|
2D2858009A E91 |
mistral (grey) |
|
|
2D2857505 E91 |
mistral (grey) |
|
|
2D1857053B 01C |
satin black |
|
|
2D1858009 E91 |
mistral (grey) |
|

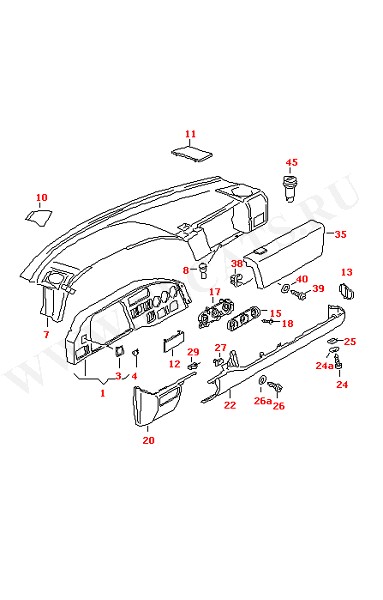

| (1) |
2D2857053 |
trim instrument housing adapt with workshop equipment use if required: rhd 2D0 857 965 |
|
| (10) |
2D2857227 |
loudspeaker grille left rhd |
|
| (11) |
2D2857228 |
loudspeaker grille right rhd |
|
| (11) |
2D2857228D |
loudspeaker grille right rhd |
|
| (13) |
2D2857785 |
covering knee bar left rhd |
|
| (20) |
2D2858837 |
covering knee bar left rhd |
|
| (22) |
2D2858838 |
covering knee bar right rhd |
|
| (29) |
N 90779101 |
clips 26X13,1X2,5 |
|
| (35) |
2D2858009A |
dash panel box lid rhd lockable |
|
| (35) |
2D2858009 |
dash panel box lid rhd |
|
| (35) |
2D1858009 |
dash panel box lid lhd |
|
| (45) |
2D0837217 |
lock cylinder * cannot be used to restore * * the one key locking * * system !! * |
|
| (7) |
2D2857505 |
covering dashboard upper rhd |
|
| (7) |
2D2857503C |
covering dashboard for vehicles with front passenger airbag upper rhd |
|
| (7) |
2D1857503C |
covering dashboard for vehicles with front passenger airbag upper lhd |
|
| - |
2D0857215 |
clip |
|
| 1 |
2D1857053B |
trim instrument housing adapt with workshop equipment use if required: lhd 2D0 857 965 |
|
| 10 |
2D1857227 |
loudspeaker grille left lhd |
|
| 11 |
2D1857228D |
loudspeaker grille right lhd |
|
| 12 |
2D0857233 |
trim for radio aperture |
|
| 13 |
2D1857786 |
covering knee bar right lhd |
|
| 15 |
2D0858065 |
trim with symbol |
|
| 17 |
2D1858189 |
covering |
|
| 20 |
2D1858837 |
covering knee bar left lhd |
|
| 22 |
2D1858838 |
covering knee bar right lhd |
|
| 24 |
N 0139755 |
oval head panel screw ST4,8X19 |
|
| 24A |
N 0116653 |
washer 5,3X15X1,6 |
|
| 25 |
N 0154373 |
snap nut B4,8X16,5X11 |
|
| 26 |
N 0139755 |
oval head panel screw ST4,8X19 |
|
| 26A |
N 0116653 |
washer 5,3X15X1,6 |
|
| 27 |
N 90712101 |
expanding nut B4,8X10,1X20,6 |
|
| 29 |
N 90712801 |
clips 26X16,5X2 |
|
| 35 |
2D1858009A |
dash panel box lid lhd lockable |
|
| 38 |
N 90712101 |
expanding nut B4,8X10,1X20,6 |
|
| 39 |
N 0139755 |
oval head panel screw ST4,8X19 |
|
| 4 |
2D0857965 |
blind cover |
|
| 40 |
N 0115227 |
washer A4,3X9X0,8 |
|
| 45 |
107837217GA |
lock cylinder without key * to retain the one key * * system the key code * * number and/or chassis * * number must be quoted * * when ordering * |
|
| 7 |
2D1857505 |
covering dashboard upper lhd |
|
| 8 |
2D0857139 |
stop buffer dash panel box lid |
|
