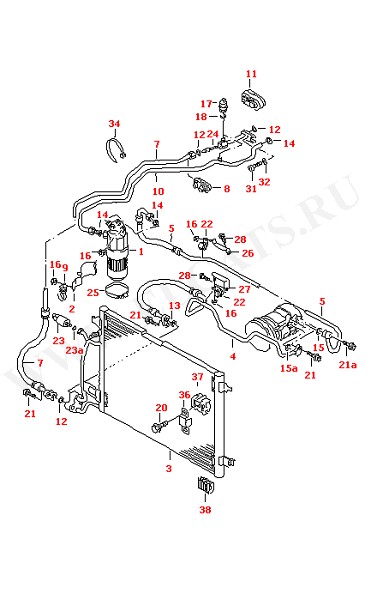

Оригинальный
номер |
Название |
Заказ |
| (10) |
8D2260740K |
refrigerant hose (fluid container > vaporizer) RLKG |
|
| (10) |
8D1260740L |
refrigerant hose (fluid container > vaporizer) lhd |
|
| (10) |
8D2260740L |
refrigerant hose (fluid container > vaporizer) RLKG |
|
| (23) |
8D0959482B |
safety switch |
|
| (3) |
8D0260403G |
refrigerant condenser |
|
| (4) |
8D0260701N |
refrigerant hose (refrigerant compressor > refrigerant condenser) |
|
| (5) |
8D0260707N |
refrigerant hose (fluid container > refrigerant compressor) |
|
| (6) |
8D1260709M |
refrigerant pipe (VERDAMPFER > KAELTEMITTELROHR) lhd |
|
| (6) |
8D2260709L |
refrigerant pipe (VERDAMPFER > KAELTEMITTELROHR) RLKG 8D2 260 710 L |
|
| (6) |
8D2260709M |
refrigerant pipe (VERDAMPFER > KAELTEMITTELROHR) RLKG |
|
| (7) |
8D2260710M |
refrigerant pipe (refrigerant condenser > evaporator) RLKG 8D2 260 709 M |
|
| (7) |
8D1260710D |
refrigerant pipe (refrigerant condenser > evaporator) lhd 8D1 260 709 M |
|
| (7) |
8D2260710L |
refrigerant pipe (refrigerant condenser > evaporator) rhd 8D2 260 709 L |
|
| (9) |
8D0260717 |
retaining spring refrigerant hose AN "ABS". |
|
| - |
D 185400A2 |
liquid sealant 10ML |
|
| 1 |
8D0820193 |
drier |
|
| 10 |
8D1260740K |
refrigerant hose (fluid container > vaporizer) lhd |
|
| 12 |
8A0260749AJ |
round seal 10,8X1,8 |
|
| 13 |
8A0260749AH |
round seal 14X1,82 |
|
| 14 |
1J0820749B |
round seal 17X1,8 |
|
| 15 |
4D0260749A |
seal 23,8X2,4 |
|
| 15A |
7M0820749C |
round seal 11,11X1,78 |
|
| 16 |
N 90367502 |
shouldered nut self locking M6 |
|
| 2 |
8D0260759AE |
bracket for drier |
|
| 20 |
N 0901483 |
hexagon head bolt (combi) M6X15Z2 |
|
| 21 |
N 10414401 |
allen key head bolt M8X28 |
|
| 21A |
N 10415401 |
hexagon head bolt (combi) M8X40 |
|
| 22 |
N 0206402 |
pipe clip D1-18X15 |
|
| 23A |
8A0260749AK |
round seal marked with: 7,6X11,16 brown |
|
| 24 |
4B0820177 |
choke |
|
| 25 |
N 0245083 |
pipe clip LA80-100 |
|
| 26 |
8D0260759AB |
retainer |
|
| 27 |
8D0260759AL |
retainer |
|
| 31 |
N 0447051 |
allen key head bolt M10X35 |
|
| 32 |
N 0122114 |
washer 11X20X2,5 |
|
| 34 |
N 90666101 |
cable tie 4,5X200 |
|
| 36 |
4D0260427 |
retainer |
|
| 37 |
8D0260425 |
damping rubber upper |
|
| 38 |
4D0260426 |
damping rubber lower |
|
| 4 |
8D0260701K |
refrigerant hose (refrigerant compressor > refrigerant condenser) |
|
| 5 |
8D0260707K |
refrigerant hose (fluid container > refrigerant compressor) |
|
| 6 |
8D1260709L |
refrigerant pipe (VERDAMPFER > KAELTEMITTELROHR) lhd |
|
| 7 |
8D1260710C |
refrigerant pipe (refrigerant condenser > evaporator) lhd 8D1 260 709 L |
|
| 8 |
8D0260753A |
double grommet refrigerant pipe refrigerant hose cross panel water box NW 8 NW.16 |
|
