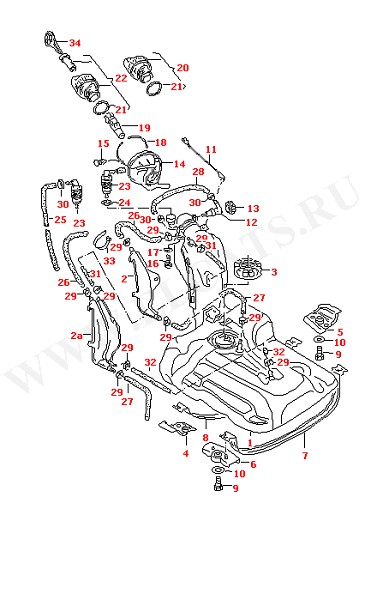

Оригинальный
номер |
Название |
Заказ |
|
1J0201550AC01C |
satin black |
|
|
191201375A 01C |
satin black |
|
| (1) |
3A5201075Q |
fuel tank |
|
| (1) |
3A5201075P |
fuel tank with narrow fuel filler neck (22mm) for lead-free fuel |
|
| (14) |
3A0201253C |
pot for models with activated charcoal canister |
|
| (3) |
321201375A |
union nut |
|
| - |
N 10303501 |
hose in coils of 5m order unit 5 7,3X3,5 |
|
| - |
N 10123801 |
hose in coils of 5m order unit 5 13,5X3 |
|
| - |
357201307A |
shield for fuel tank |
|
| 1 |
3A5201075N |
fuel tank |
|
| 10 |
211843661 |
washer |
|
| 11 |
1J0201142A |
ground strap |
|
| 12 |
191201136A |
bleeder valve |
|
| 13 |
191201375 |
union nut |
|
| 14 |
3A0201253B |
pot |
|
| 15 |
191201254 |
plug for models with activated charcoal canister |
|
| 16 |
N 0138942 |
hexagon head panel screw BZ6,3X25 |
|
| 17 |
N 01166615 |
washer 6,4X18X1,6 |
|
| 18 |
357201255 |
ring |
|
| 19 |
. |
discontinued / replacement: 3A5 201 075 P |
|
| 2 |
191201303A |
expansion tank |
|
| 2) |
191201551A |
cap, lockable, not for one key locking system for fuel tank |
|
| 20 |
1J0201550AC |
cap with retaining strap for fuel tank for vehicles with central locking system |
|
| 21 |
191201557 |
seal |
|
| 22 |
1H0201551 |
cap, lockable for single key system with separate lock cylinder but without tumblers, springs and keys for fuel tank |
|
| 23 |
357201751 |
gravity valve |
|
| 24 |
N 90359601 |
round seal 29X3 |
|
| 29 |
N 10258201 |
pipe clip AL12-22 |
|
| 3 |
191201375A |
union nut |
|
| 30 |
N 10083401 |
clamp 14,8X6X1 |
|
| 33 |
N 90666101 |
cable tie 4,5X200 |
|
| 4 |
357201691A |
retainer bracket left |
|
| 5 |
357201692 |
retainer bracket right |
|
| 6 |
191201661 |
retainer |
|
| 7 |
357201653B |
tensioning strap left |
|
| 8 |
3A5201654 |
tensioning strap right |
|
| 9 |
N 01024222 |
hexagonal head bolt M8X25 |
|
