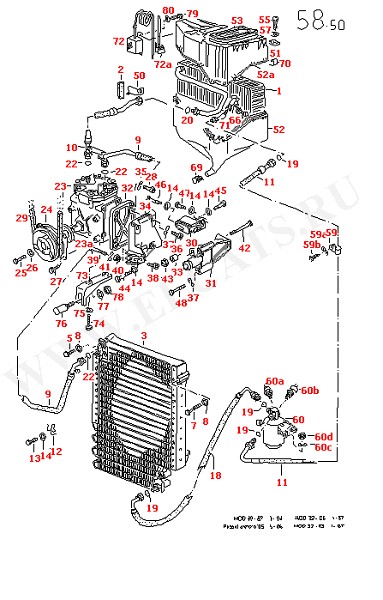

Оригинальный
номер |
Название |
Заказ |
| (10) |
323820743C |
refrigerant hose (refrigerant compressor > evaporator) |
|
| (25) |
N 98911001 |
hexagonal head bolt 1/4"-20UNC-2A |
|
| (27) |
N 98910901 |
hexagonal head bolt 5/16"X24X34 |
|
| (60) |
323820193A |
drier for refrigerant: R12 / R134A |
|
| - |
803260749A |
round seal |
|
| - |
357820794 |
conversion cfc-free air conditioner RETROFIT-KIT |
|
| - |
811820119A |
grommet |
|
| - |
321820119B |
grommet |
|
| - |
803260749D |
seal |
|
| 1 |
321820103B |
evaporator |
|
| 11 |
321820721AB |
refrigerant hose (fluid container > vaporizer) |
|
| 13 |
N 01024016 |
hexagonal head bolt M8X20 |
|
| 14 |
N 0154013 |
washer 8,4X21X4 |
|
| 18 |
855260705 |
refrigerant hose (refirgerant condensor > fluid container) |
|
| 19 |
803260749 |
round seal |
|
| 2 |
867819020B |
sound absorber 190X130X5 |
|
| 20 |
803260749B |
round seal |
|
| 22 |
171820749 |
seal |
|
| 23 |
035260805A |
refrigerant compressor |
|
| 23A |
811820854A |
seal |
|
| 24 |
035260811 |
electro-magnetic coupling 1 point |
|
| 25 |
N 98910901 |
hexagonal head bolt 5/16"X24X34 |
|
| 26 |
171820850 |
washer |
|
| 27 |
N 98911001 |
hexagonal head bolt 1/4"-20UNC-2A |
|
| 28 |
035260829B |
cheese head bolt 3/8"X22,4 |
|
| 29 |
035260849C |
v-belt 12,5X992MM |
|
| 3 |
321820413C |
refrigerant condenser |
|
| 30 |
035260853 |
retaining bracket |
|
| 31 |
035260899 |
bearing bracket |
|
| 32 |
035260901 |
intermediate plate |
|
| 33 |
035260907A |
bush |
|
| 34 |
035260885E |
retainer |
|
| 35 |
N 0122314 |
spring washer A10X18X0,8 |
|
| 36 |
N 90668201 |
bolt, with multi-spilne socket head M10X48 |
|
| 37 |
N 0122307 |
spring washer B10X21X1 |
|
| 38 |
N 0447051 |
allen key head bolt M10X35 |
|
| 39 |
N 0102741 |
hexagonal head bolt M8X75 |
|
| 40 |
N 0110088 |
hexagonal nut M8 |
|
| 41 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 42 |
N 0104951 |
hexagonal head bolt M10X170 |
|
| 43 |
N 10209005 |
hexagon nut, self-locking M10 |
|
| 44 |
N 01037510 |
hexagonal head bolt M8X75 |
|
| 45 |
N 0147112 |
allen key head bolt M8X65 |
|
| 46 |
N 0103857 |
hexagonal head bolt M8X85 |
|
| 47 |
N 01024222 |
hexagonal head bolt M8X25 |
|
| 48 |
N 90130001 |
hexagonal head bolt AM10X80 |
|
| 49 |
N 0154581 |
snap nut B4,8X19X16 |
|
| 5 |
N 90529301 |
hexagonal head bolt M6X10 |
|
| 50 |
855809161 |
retainer |
|
| 51 |
N 0154581 |
snap nut B4,8X19X16 |
|
| 52 |
321820025 |
evaporator housing lower |
|
| 52A |
321820026 |
evaporator housing upper |
|
| 53 |
861819065 |
gasket 578X15X15 |
|
| 54 |
321820163B |
drip pan |
|
| 55 |
N 0139755 |
oval head panel screw ST4,8X19 |
|
| 57 |
N 0116653 |
washer 5,3X15X1,6 |
|
| 58 |
N 01152318 |
washer A5,3X10X1 |
|
| 59 |
N 10258201 |
pipe clip AL12-22 |
|
| 59A |
N 0122253 |
spring washer B5X11X0,5 |
|
| 59B |
N 0139755 |
oval head panel screw ST4,8X19 |
|
| 60 |
323820193A |
drier for refrigerant: R12 |
|
| 60A |
321959139A |
low pressure switch |
|
| 60B |
321959483 |
pressure switch |
|
| 60C |
N 0122265 |
spring washer B6X12X0,5 |
|
| 60D |
N 01100624 |
hexagonal nut M6 |
|
| 66 |
321820679B |
expansion valve |
|
| 69 |
811260155 |
water drain valve |
|
| 7 |
N 0103373 |
hexagonal head bolt M6X65 |
|
| 70 |
321819059 |
clips |
|
| 71 |
321820034 |
tube expansion valve |
|
| 72 |
323959281 |
thermostat |
|
| 73 |
035260837 |
retainer |
|
| 74 |
055260900 |
hexagonal head bolt 3/8"X32 |
|
| 75 |
N 01152711 |
washer A10,5X21X2 |
|
| 76 |
049260834 |
pin |
|
| 77 |
N 0154013 |
washer 8,4X21X4 |
|
| 78 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 79 |
N 0139681 |
oval head panel screw ST4,8X13-C |
|
| 8 |
N 0115332 |
washer A7,4X14,5X1,6 |
|
| 80 |
N 01166615 |
washer 6,4X18X1,6 |
|
| 9 |
323820721A |
refrigerant hose (refrigerant compressor > refrigerant condenser) |
|
