Оригинальный
номер |
Название |
Заказ |
| (1) |

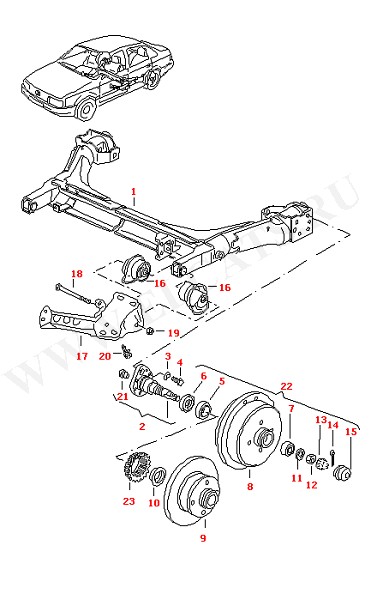

3A0500051 |
rear axle beam with stabilizer also use: 1H0 611 797 C 111 611 998 *>>3A-S-032001 1H0 609 7 |
|
| (10) |
191501639A |
covering for models with drum brakes for models without anti-locking system |
|
| (17) |
357501546 |
bearing bracket right |
|
| (2) |
333501118A |
stub axle for models with drum brakes for models with anti-lock brake system -abs- right |
|
| (2) |
333501117A |
stub axle for models with drum brakes for models with anti-lock brake system -abs- left |
|
| (2) |
357501117 |
stub axle for models with drum brakes for models without anti-locking system |
|
| (2) |
333501118 |
stub axle for models with disc brakes right |
|
| (4) |
N 90758901 |
hexagon head bolt (combi) M10X32 |
|
| (9) |
357615601B |
brake disc 226X10 5/100 |
|
| - |
3A0501639 |
covering |
|
| - |
871511423 |
rubber mounting for models with rear anti-roll bar |
|
| 10 |
357501639 |
covering F >> 3A-VE300 000* for models with disc brakes D=57MM |
|
| 10 |
3A0501639 |
covering F 3A-VE300 001>>* for vehicles with drum brakes and anti-locking brake system D=59MM |
|
| 10 |
357501639 |
covering F >> 3A-VE300 000* for vehicles with drum brakes and anti-locking brake system D=57MM |
|
| 10 |
3A0501639 |
covering F 3A-VE300 001>>* for models with disc brakes D=59MM |
|
| 11 |
311405661 |
washer |
|
| 12 |
N 0111671 |
hexagonal nut BM16X1 |
|
| 13 |
803501221 |
locking ring |
|
| 14 |
N 0125361 |
split pin 4X30 |
|
| 15 |
823501249 |
cap |
|
| 16 |
3A0501541 |
bonded rubber mounting |
|
| 17 |
357501544A |
bearing bracket left |
|
| 18 |
N 90354501 |
hexagonal head bolt BM12X1,5X132 |
|
| 19 |
N 90323704 |
shouldered hex. nut, self-locking M12X1,5 |
|
| 2 |
333501117 |
stub axle for models with disc brakes left |
|
| 20 |
N 10141701 |
hexagon head bolt c/w shoulder M10X25 |
|
| 21 |
191501159 |
plug |
|
| 22 |
191598625 |
wheel bearing with mounting parts rear |
|
| 23 |
1J0614149 |
rotor for speed sensor also use: rear 3A0 501 639 |
|
| 3 |
321501119A |
concave spring washer |
|
| 5 |
311405625F |
taper roller bearing 29X50,29X14,73 inner |
|
| 6 |
357501641B |
oil seal |
|
| 7 |
311405645 |
taper roller bearing 39MM |
|
| 8 |
357501615 |
brake drum 230X40 - 4/100 |
|
| 8 |
357501615 |
brake drum F >> 3A-SE275 000* F >> 3A-SB060 000* 230X40 - 4/100 |
|
| 9 |
357615601 |
brake disc F 3A-SE275 001>>* F 3A-SB060 001>>* 226X10 4/100 |
|
| 9 |
357615601 |
brake disc 226X10 4/100 |
|
