Оригинальный
номер |
Название |
Заказ |

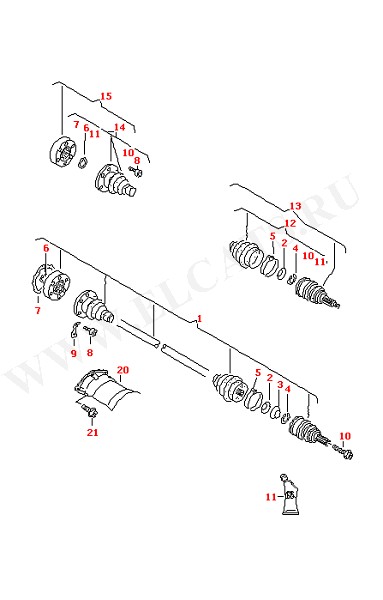

| (1) |
3B0501203 X |
drive shaft with constant velocity joints |
|
| (13) |
4B0598099 X |
wheel shaft, outer with joint, rotor and assembly parts |
|
| (15) |
4D0598103 X |
constant velocity joint with boot, attachment parts and grease inner |
|
| 1 |
3B0501203 |
drive shaft with constant velocity joints |
|
| 10 |
4B0407643A |
shouldered bolt M16X1,5X72 |
|
| 11 |
G 052133A2 |
high temperature grease 90G |
|
| 12 |
4B0598203 |
joint protective boot with assembly items and grease outer |
|
| 13 |
4B0598099 |
wheel shaft, outer with joint, rotor and assembly parts |
|
| 14 |
443498201B |
joint protective boot with assembly items and grease inner |
|
| 15 |
4D0598103 |
constant velocity joint with boot, attachment parts and grease inner |
|
| 2 |
321407287 |
concave spring washer |
|
| 20 |
8E0501713 |
shield |
|
| 21 |
N 90415403 |
allen key head bolt (combi) M8X22-Z1 |
|
| 3 |
893407295 |
thrust ring |
|
| 4 |
171407297C |
snap ring |
|
| 5 |
803407291 |
hose clip 97MM |
|
| 6 |
N 0123741 |
securing ring 28X1,5 |
|
| 7 |
8D0407309A |
sealing washer 94MM |
|
| 8 |
N 90668201 |
bolt, with multi-spilne socket head M10X48 |
|
| 9 |
443407357 |
spacer plate front |
|
