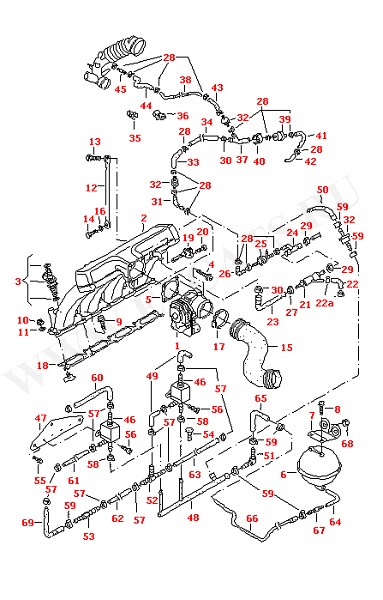

Оригинальный
номер |
Название |
Заказ |
| (1) |
06B133062M |
throttle valve adapter BOSCH |
|
| (12) |
06B129723AR |
support |
|
| (23) |
06B133783BC |
connecting hose |
|
| (32) |
058905291 |
non-return valve |
|
| (36) |
443616797C |
retainer 22MM |
|
| (39) |
1C0906517A |
valve |
|
| (4) |
N 10080202 |
allen key head bolt (combi) M6X50-Z1 |
|
| (46) |
026906283H |
solenoid change-over valve |
|
| (49) |
078906315 |
ventilation cap 4,4MM |
|
| (6) |
8D0131541C |
vacuum reservoir |
|
| - |
N 90170001 |
hose in coils of 5m order unit 5 7,5X3,5 |
|
| - |
N 10196502 |
hose in coils of 5m order unit 5 4X3 |
|
| 10 |
N 0150825 |
hexagon nut, shouldered M6 |
|
| 11 |
N 01152423 |
washer A6,4X12,5X1,6 |
|
| 13 |
N 01024016 |
hexagonal head bolt M8X20 |
|
| 14 |
N 01024016 |
hexagonal head bolt M8X20 |
|
| 16 |
N 01167016 |
washer 8,4X24X2 |
|
| 18 |
058129717D |
gasket |
|
| 19 |
058905379 |
temperature sensor |
|
| 2 |
06B133201N |
intake connection |
|
| 20 |
N 0147404 |
allen key head bolt M6X16 |
|
| 21 |
058133753B |
suction jet pump |
|
| 24 |
058133784P |
angled hose use if required: 443 616 797 C |
|
| 25 |
058905291D |
non-return valve |
|
| 26 |
058133394B |
angled hose |
|
| 27 |
N 10201901 |
pipe clip 7X19,4-22,6 |
|
| 28 |
N 10233401 |
spring clip 16,2X7X0,6 |
|
| 29 |
N 10202001 |
pipe clip 24,1 |
|
| 30 |
N 10258201 |
pipe clip AL12-22 |
|
| 31 |
027133394M |
breather hose shorten if necessary 160MM |
|
| 32 |
058905291 |
non-return valve |
|
| 33 |
058133783B |
connecting hose shorten by: 12MM |
|
| 34 |
06B133366B |
connecting pipe |
|
| 35 |
8D0971897B |
cable holder |
|
| 36 |
06B133095F |
retainer |
|
| 37 |
058133784Q |
angled hose |
|
| 38 |
058133367A |
connecting pipe |
|
| 40 |
058133459F |
support ring |
|
| 41 |
058133784 |
reducer hose |
|
| 43 |
058133394A |
hose |
|
| 44 |
058133784G |
angled hose |
|
| 45 |
035133382C |
connection piece 8MM |
|
| 47 |
058103943A |
retaining plate |
|
| 48 |
058133784R |
angled hose |
|
| 5 |
028129748 |
gasket |
|
| 50 |
058133370 |
reducer hose |
|
| 51 |
058133382 |
connection piece 5,6MM |
|
| 54 |
035133777A |
plug 4MM |
|
| 55 |
N 10335202 |
torx socket fillister hd. bolt M6X12 |
|
| 56 |
N 10434301 |
cheese head bolt M5X10 |
|
| 57 |
N 0245281 |
pipe clip LC8-12 |
|
| 58 |
N 10310001 |
clamp 9,4-11,9 |
|
| 59 |
N 10199201 |
clamp 15,7X7X8,5 |
|
| 6 |
038129807 |
damper |
|
| 66 |
8D0201935D |
vacuum pipe |
|
| 67 |
078133382J |
connecting part 4/8 |
|
| 68 |
N 90486101 |
hex. nut with washer M6 |
|
| 7 |
058129814A |
bracket for damper |
|
| 8 |
N 0139649 |
oval head panel screw ST4,2X16-C |
|
| 9 |
N 10080102 |
allen key head bolt (combi) M6X25 |
|
