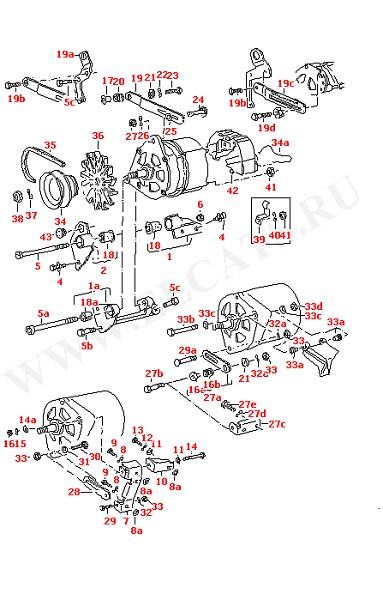

Оригинальный
номер |
Название |
Заказ |
| (19) |
056903253 |
angled bracket for alternator: F 32-D-000 001>> 6,7,8,9,10,11, 12,13 |
|
| (19) |
055903253M |
angled bracket F 32-E-000 001>> 2 holes retainer |
|
| (19) |
049903253 |
angled bracket for alternator: F >> 32-C-300 000 5,14 |
|
| (23) |
N 01024416 |
hexagonal head bolt >> 32-C-300 000 M8X30 |
|
| (23) |
N 0195334 |
hexagon head bolt c/w shoulder for alternator: M8X20 7A,7B,8A,8B |
|
| (24) |
N 0197002 |
hexagon head bolt c/w shoulder for alternator: M8X30 7A,7B,8A,8B |
|
| (24) |
049903285 |
flat round head bolt for alternator: F >> 32-D-300 000 M8X70 5,14 |
|
| (26) |
N 01155811 |
washer 8,4X15X1,6 |
|
| (28) |
068903251H |
angled bracket also use: 034 903 555 B |
|
| (28) |
068903251H |
angled bracket also use: 026 903 555 A |
|
| (34) |
026903119A |
v-belt pulley for alternator: MOTOROLA 7B,8B,11A,13C |
|
| (34) |
035903119D |
v-belt pulley for alternator: BOSCH 13A,13B |
|
| (34) |
049903119H |
v-belt pulley for alternator: BOSCH 5,14 |
|
| (34A) |
036903121A |
spring shackle for alternator: MOTOROLA 7,7B,8B,9,11, 11A,13,13C |
|
| (35) |
068145271C |
v-belt 9,5X763MM |
|
| (35) |
068903137Q |
v-belt 9,5X735MM |
|
| (36) |
068903171 |
fan wheel for alternator: BOSCH 6,7A,8,8A,9A, 10,12 |
|
| (36) |
068903171A |
fan wheel for alternator: BOSCH 14A |
|
| (36) |
036903171A |
fan wheel for alternator: MOTOROLA 7B,8B,9,11A, 13,13C |
|
| (36) |
063903171 |
fan wheel for alternator: BOSCH 5,13A,13B,14 |
|
| (4) |
N 01023911 |
hexagonal head bolt M8X18 |
|
| (5A) |
N 0447591 |
allen key head bolt M8X95 |
|
| (5C) |
N 01024222 |
hexagonal head bolt also use: M8X25 N 012 229 3 |
|
| - |
026903555A |
bolt |
|
| - |
034903555B |
bolt |
|
| - |
068903791E |
1 set: connecting parts for terminal for alternator: B+ / D+ 14A |
|
| 1 |
049903103 |
retainer F >> 32-C-300 000 |
|
| 10 |
068903147 |
bracket for alternator |
|
| 11 |
N 01152520 |
washer A8,4X16X1,6 |
|
| 12 |
N 0122293 |
spring washer A8X15X0,5 |
|
| 13 |
N 01024222 |
hexagonal head bolt M8X24 |
|
| 14 |
N 0103883 |
hexagonal head bolt M8X90 |
|
| 14A |
N 01152520 |
washer A8,4X16X1,6 |
|
| 15 |
N 0122293 |
spring washer A8X15X0,5 |
|
| 16 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 16A |
052903127 |
bush |
|
| 16B |
052903263 |
bush |
|
| 17 |
441903127 |
bearing >> 32-C-300 000 |
|
| 18 |
056903147A |
damper bush F >> 32-C-300 000 |
|
| 18A |
049903149 |
bush |
|
| 18A |
049903149 |
bush F 32-D-000 001>> |
|
| 19 |
056903253A |
angled bracket for alternator: F >> 32-C-300 000 6,7,8,9,10,11, 12,13 |
|
| 19A |
026903245A |
retainer |
|
| 19B |
N 0195024 |
hexagon head bolt c/w shoulder M8X25 |
|
| 1A |
049903103B |
bracket for alternator F 32-D-000 001>> |
|
| 1A |
049903103B |
bracket for alternator |
|
| 2 |
049903105A |
retainer F >> 32-C-300 000 |
|
| 20 |
059903263A |
rubber mounting F >> 32-C-300 000 |
|
| 21 |
059903265A |
washer |
|
| 22 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 23 |
N 01024222 |
hexagonal head bolt F 32-D-000 001>> M8X25 |
|
| 24 |
059903285 |
flat round head bolt for alternator: F >> 32-D-300 000 M8X25 6,7,8,9,10,11, 12,13 |
|
| 25 |
N 0116961 |
washer B8,1X24X1,5 |
|
| 26 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 27 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 27A |
068903251B |
angled bracket |
|
| 27B |
N 0103594 |
hexagonal head bolt M8X38 |
|
| 27C |
068903125 |
retainer |
|
| 27D |
N 0122307 |
spring washer B10X21X1 |
|
| 27E |
049260829 |
hexagonal head bolt |
|
| 29 |
N 01024016 |
hexagonal head bolt M8X20 |
|
| 29A |
049903285 |
flat round head bolt |
|
| 30 |
059903285 |
flat round head bolt M8X25 |
|
| 31 |
N 0116961 |
washer B8,1X24X1,5 |
|
| 32 |
N 0122293 |
spring washer A8X15X0,5 |
|
| 32A |
N 01224110 |
spring washer B8X15X0,8 |
|
| 33 |
N 01100830 |
hexagonal nut M8 |
|
| 33A |
069903147A |
damper bush |
|
| 33B |
N 0103923 |
hexagonal head bolt M8X115 |
|
| 33C |
069903159 |
washer |
|
| 33D |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 34 |
049903119L |
v-belt pulley for alternator: BOSCH 1-4,6,7,7A,8, 8A,8B,9A,10, 12,14A |
|
| 34A |
036903121 |
spring shackle for alternator: BOSCH 6,7A,8,8A,9A, 10,12 |
|
| 35 |
050903137 |
v-belt 9,5X950MM |
|
| 37 |
N 0122333 |
spring washer B14X28X1,6 |
|
| 38 |
N 0111135 |
hexagonal nut M14X1,5 |
|
| 39 |
056903121 |
retainer for alternator: 5 |
|
| 40 |
N 0122253 |
spring washer B5X11X0,5 |
|
| 41 |
N 01100517 |
hexagonal nut M5 |
|
| 43 |
049109273 |
plug |
|
| 5 |
N 0447211 |
allen key head bolt M8X125 |
|
| 5B |
N 01024118 |
hexagonal head bolt M8X22 |
|
| 6 |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| 7 |
068903141 |
bracket for alternator |
|
| 8 |
N 0122293 |
spring washer A8X15X0,5 |
|
| 8A |
N 90057701 |
washer |
|
| 9 |
N 01024222 |
hexagonal head bolt M8X24 |
|
