Оригинальный
номер |
Название |
Заказ |
|
171881299C 01C |
satin black F 868 2369 000>> |
|
|
191881087A 01C |
satin black |
|
|
191881088A 01C |
satin black |
|
|
171881449A 01C |
satin black |
|
|
321881203 909 |
natural colours |
|
|
171881213B 2VK |
platinum |
|

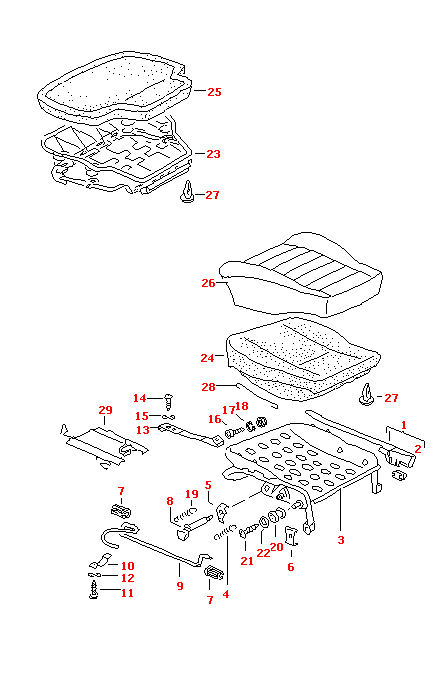

| (1) |
191881088A |
cover for channel right inner |
|
| (21) |
N 0139461 |
oval head panel screw F 867 2300 001>> 868 2368 999 B6,3X32 |
|
| (21) |
N 0141001 |
oval hd. csk. self-tapp. screw F >> 866 1590 000 F >> 866 2500 000 ST4,8X25-C |
|
| (3) |
861881106E |
seat frame F 869 2500 001>> right |
|
| (4) |
321881178 |
tension spring right |
|
| (9) |
171881236C |
lever f. seat fore+afr adjust. right |
|
| 1 |
191881087A |
cover for channel left inner |
|
| 10 |
321881240 |
pipe clip |
|
| 11 |
N 0139587 |
oval head panel screw ST3,5X13-C |
|
| 12 |
N 0122243 |
spring washer B4X9X0,5 |
|
| 14 |
N 0139705 |
oval head panel screw F >> 868 2387 332 B4,8X9,5 |
|
| 15 |
N 0122283 |
spring washer F >> 868 2387 332 B8X17X0,8 |
|
| 16 |
N 0147506 |
allen key head bolt F 868 2387 333>> M6X10 |
|
| 17 |
N 0120064 |
spring ring F 868 2387 333>> B6 |
|
| 18 |
N 0111214 |
domed cap nut F 868 2387 333>> M6 |
|
| 19 |
113881275C |
tension spring |
|
| 2 |
191881089 |
clips |
|
| 20 |
171881299C |
bearing |
|
| 21 |
N 0141405 |
fillister hd. bolt F 868 2369 000>> M6X15 |
|
| 22 |
N 01166615 |
washer 6,4X18X1,6 |
|
| 24 |
171881375J |
padding for seat also use: |
|
| 27 |
171881449A |
clip |
|
| 28 |
N 90162606 |
upholstery wire 2,8X368 |
|
| 4 |
321881177 |
tension spring left |
|
| 5 |
321881203 |
glide piece front |
|
| 6 |
171881213B |
glide piece outer |
|
| 7 |
893881167 |
bearing bush |
|
| 8 |
171881229B |
clinch bolt |
|
| 9 |
171881235C |
lever f. seat fore+afr adjust. left |
|
