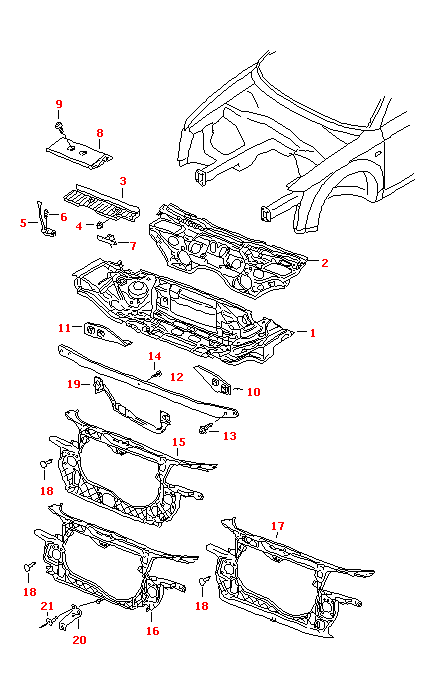

Оригинальный
номер |
Название |
Заказ |
| (10) |
8E2803357 |
retainer bracket left rhd |
|
| (11) |
8E2803358 |
retainer bracket right rhd |
|
| (12) |
8E2805645 |
cross support front rhd |
|
| (17) |
8E0805594C |
lock carrier with mounting for radiator |
|
| (18) |
N 90683302 |
torx socket, half-round head (combi)bolt M6X20 |
|
| (2) |
8E0805431C |
cross panel F 8E-5-000 001>> |
|
| (2) |
8E0805431B |
cross panel F 8E-3-000 001>> 8E-4-400 000 |
|
| (5) |
8E0803123A |
clamping strip for battery F 8E-3-000 001>> |
|
| (7) |
8E0805461 |
limit stop lhd |
|
| - |
N 0147392 |
allen key head bolt M8X16 |
|
| - |
N 90594201 |
oval head panel screw (combi) E4X16 |
|
| - |
8E0805956 |
console for models with drive system protective plates right |
|
| - |
8E0805955 |
console for models with drive system protective plates left |
|
| - |
8E0806663A |
cap for flap lock |
|
| - |
N 90319201 |
panel screw H7X16 |
|
| - |
8E0805537 |
support stay mounting for rubber stop left |
|
| - |
8E0805538 |
support stay mounting for rubber stop right |
|
| - |
N 90369402 |
cheese head bolt M6X20ASP |
|
| - |
8D0805960 |
snap nut 6,0MM |
|
| - |
N 0150825 |
hexagon nut, shouldered M6 |
|
| - |
8E0805499 |
securing plate left |
|
| - |
8E0805500 |
securing plate right |
|
| 1 |
8E0806603B |
cross member suspension strut storage obligatory documentation part see parts bulletin: F >> 8E-2-016 976* |
|
| 1 |
8E0806603G |
cross member suspension strut storage obligatory documentation part see parts bulletin: F 8E-5-000 001>> |
|
| 1 |
8E0806603F |
cross member suspension strut storage obligatory documentation part see parts bulletin: F 8E-3-000 001>> 8E-4-400 000 |
|
| 1 |
8E0806603C |
cross member suspension strut storage obligatory documentation part see parts bulletin: F 8E-2-016 976>> 8E-2-400 000 |
|
| 10 |
8E1803357 |
retainer bracket left lhd |
|
| 11 |
8E1803358 |
retainer bracket right lhd |
|
| 12 |
8E1805645 |
cross support front lhd |
|
| 13 |
N 0903782 |
allen key head bolt (combi) M8X25-Z1 |
|
| 14 |
N 10225201 |
hexagon head bolt (combi) M8X12Z1 |
|
| 15 |
8E0805594B |
lock carrier with mounting for radiator |
|
| 16 |
8E0805594A |
lock carrier with mounting for radiator |
|
| 17 |
8E0805594 |
lock carrier with mounting for radiator |
|
| 17 |
8E0805594 |
lock carrier with mounting for radiator |
|
| 18 |
N 90683201 |
torx socket head bolt (combi) M8X45 |
|
| 2 |
8E0805431 |
cross panel F >> 8E-2-400 000 |
|
| 20 |
8E0805609 |
bracket for oil cooler power steering |
|
| 21 |
N 90825801 |
rivet A4X13 |
|
| 3 |
8E2805229A |
bracket - battery rhd |
|
| 3 |
8E1805229A |
bracket - battery lhd |
|
| 4 |
N 90348403 |
hex. nut with washer M8 |
|
| 5 |
8E0803123 |
clamping strip for battery F >> 8E-2-400 000 |
|
| 6 |
N 10240801 |
allen key head bolt M8X35 |
|
| 7 |
8E0805462A |
retaining bracket for battery F 8E-3-134 501>>* |
|
| 7 |
8E0805462 |
retaining bracket for battery F >> 8E-3-134 500* |
|
| 8 |
8E0802839 |
retainer battery mounting |
|
| 9 |
N 10347801 |
torx socket bolt, cheese hd. (combi) AM8X20-SP-Z1 |
|
