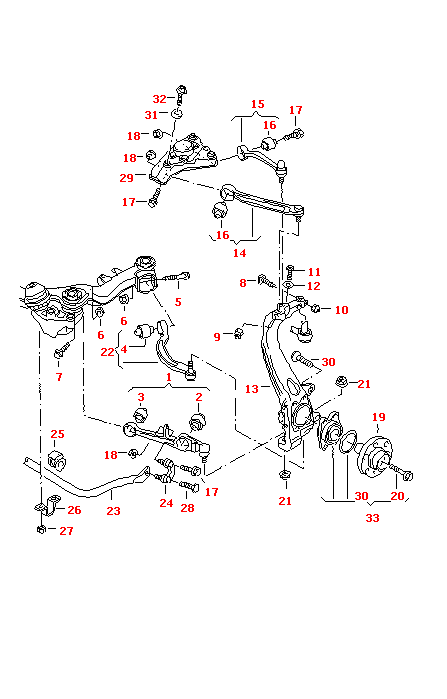

Оригинальный
номер |
Название |
Заказ |
| (13) |
4F0407254F |
wheel bearing housing 92MM |
|
| (14) |
4E0407506B |
upper link right front |
|
| (15) |
4E0407510B |
upper link right rear |
|
| (22) |
4F0407694 |
guide link right front |
|
| (23) |
4F0411309H |
stabilizer front |
|
| (23) |
4F0411309H |
stabilizer front |
|
| 1 |
4F0407151 |
front wishbone link front, lower |
|
| 10 |
N 90892301 |
hexagon nut, self-locking M10-Z1 |
|
| 11 |
N 10491801 |
hexagon head bolt c/w shoulder M10X110 |
|
| 12 |
N 10406103 |
washer A10,5X20X2 |
|
| 13 |
4F0407253F |
wheel bearing housing 92MM |
|
| 14 |
4E0407505B |
upper link left front |
|
| 15 |
4E0407509B |
upper link left rear |
|
| 16 |
8D0407515A |
bonded rubber mounting |
|
| 17 |
N 10425301 |
hexagon head bolt (combi) M10X62X45 |
|
| 18 |
N 10286102 |
shouldered hex. nut, self-locking M10 |
|
| 19 |
4E0407613C |
wheel hub 92MM |
|
| 2 |
4E0407181B |
bonded rubber mounting |
|
| 20 |
8E0407643A |
hexagon socket head bolt with collar M16X1,5X72 |
|
| 21 |
N 90965601 |
hex. nut with washer M14X1,5 |
|
| 22 |
4F0407693 |
guide link left front |
|
| 23 |
4F0411309E |
stabilizer front |
|
| 24 |
4E0411317E |
connecting link left a. right |
|
| 25 |
4D0411327J |
rubber mounting 29MM |
|
| 26 |
4D0411336D |
pipe clip front |
|
| 27 |
N 90183802 |
shouldered hex. nut, self-locking M8 |
|
| 28 |
N 10516701 |
bolt, hex. hd. with shoulder, self-locking M10X55-SW16A |
|
| 29 |
4F0412383G |
bearing bracket |
|
| 3 |
4E0407182C |
bonded rubber mounting |
|
| 30 |
4D0505445 |
ball-head screw M12X1,5X45 |
|
| 31 |
8D0412145B |
washer 5X16,2X40 |
|
| 32 |
N 91001201 |
hexagon head bolt c/w shoulder M10X35 |
|
| 33 b |
4F0498625A |
wheel bearing with mounting parts front |
|
| 4 |
4F0407183A |
bonded rubber mounting |
|
| 5 |
N 90625901 |
bolt, hex. hd. with pin (combi) M12X1,5X120X80 |
|
| 6 |
N 90323704 |
shouldered hex. nut, self-locking M12X1,5 |
|
| 7 |
N 91016601 |
hexagon head bolt (combi) M12X1,5X85S20 |
|
| 8 |
4D0407192D |
lock screw M10X55 |
|
| 9 |
N 10272302 |
shouldered hex. nut, self-locking M10 |
|
