Оригинальный
номер |
Название |
Заказ |

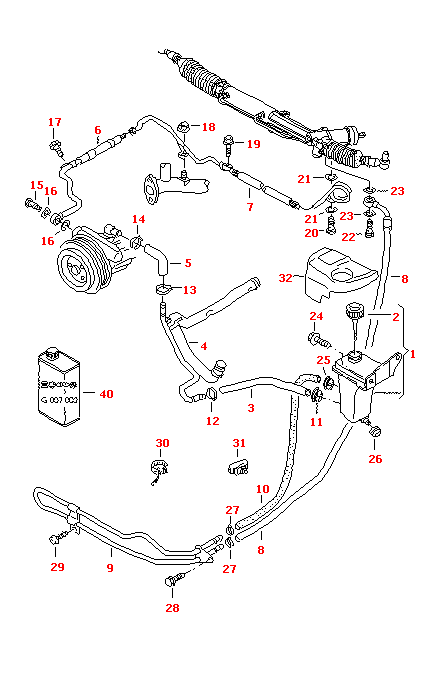

| (1) |
8D0422371K |
oil container |
|
| (10) |
4B0422891C |
return hose (cooling pipe > oil reservoir) |
|
| (10) |
4B0422891H |
return hose (cooling pipe > oil reservoir) |
|
| (17) |
N 0903782 |
allen key head bolt (combi) M8X25-Z1 |
|
| (29) |
N 0903641 |
hexagon head bolt (combi) M6X35 |
|
| (29) |
N 90808502 |
bolt, with polygon socket hd. (combi.) M6X25 |
|
| (29) |
N 10526301 |
self-tapping screw 4X14-Q |
|
| (3) |
8D0422887AB |
suction hose (oil reser. > oil suct. pipe) |
|
| (3) |
4B0422887M |
suction hose (oil reser. > oil suct. pipe) |
|
| (5) |
8D0422887AC |
suction hose (vane type pump>oil suct.pipe) |
|
| (5) |
8E0422887D |
suction hose (vane type pump>oil suct.pipe) |
|
| (6) |
8D0422893D |
flexible hose from vane pump to steering gear lhd |
|
| (6) |
8E0422893 |
flexible hose |
|
| (7) |
4B1422893Q |
flexible hose from vane pump to steering gear lhd |
|
| (7) |
8D1422893BF |
flexible hose from vane pump to steering gear lhd |
|
| (7) |
4B1422893T |
flexible hose from vane pump to steering gear lhd |
|
| (7) |
8D2422893S |
flexible hose from vane pump to steering gear rhd |
|
| (7) |
4B2422893P |
flexible hose from vane pump to steering gear rhd |
|
| (7) |
4B2422893R |
flexible hose from vane pump to steering gear rhd |
|
| (8) |
4B2422891F |
return hose (cooling pipe > steering gear) rhd |
|
| (8) |
4B2422891D |
return hose (cooling pipe > steering gear) rhd |
|
| (8) |
4B2422891G |
return hose (cooling pipe > steering gear) rhd |
|
| (8) |
4B1422891D |
return hose (cooling pipe > steering gear) lhd |
|
| (8) |
4B1422891F |
return hose (cooling pipe > steering gear) lhd |
|
| (9) |
4B0422885S |
cooling pipe |
|
| (9) |
4B0422885R |
cooling pipe |
|
| (9) |
4B0422885AC |
cooling pipe |
|
| - |
N 90179102 |
washer 8,2X18X3 |
|
| 1 |
8D0422371H |
oil container |
|
| 10 |
4B0422891B |
return hose (cooling pipe > oil reservoir) |
|
| 11 |
N 90686901 |
spring-type clip 23X1,2 |
|
| 12 |
N 10255601 |
clamp 23,5X7X0,6 |
|
| 13 |
N 10255601 |
clamp 23,5X7X0,6 |
|
| 14 |
N 10255601 |
clamp 23,5X7X0,6 |
|
| 15 |
N 90467404 |
banto bolt 12-3 |
|
| 16 |
N 0138486 |
seal A16X22 |
|
| 17 |
N 0902612 |
hexagon head bolt (combi) M6X20-Z1 |
|
| 18 |
N 0230038 |
shouldered hex. nut, self-locking AM8 |
|
| 19 |
N 01023820 |
hexagonal head bolt also use: M8X15 |
|
| 2 |
8D0422376C |
cover for fluid container |
|
| 20 |
4D0422529H |
non-return valve |
|
| 21 |
N 0138494 |
seal A14X20 |
|
| 22 |
N 90467404 |
banto bolt 12-3 |
|
| 23 |
N 0138486 |
seal A16X22 |
|
| 24 |
N 90280901 |
hexagon head bolt (combi) M6X22 |
|
| 25 |
4B0422379 |
spring-type clip 16X1,2 |
|
| 26 |
431129669 |
grommet |
|
| 27 |
N 90686901 |
spring-type clip 23X1,2 |
|
| 28 |
N 90808502 |
bolt, with polygon socket hd. (combi.) M6X25 |
|
| 29 |
N 90808502 |
bolt, with polygon socket hd. (combi.) M6X25 |
|
| 3 |
8D0422887L |
suction hose (oil reser. > oil suct. pipe) |
|
| 30 |
N 90476101 |
cable tie 10X195 |
|
| 31 |
8D0971848D |
cable holder |
|
| 40 b |
G 002000 |
oil for hydraulic system and power steering 1.0 ltr. |
|
| 5 |
4B0422887B |
suction hose (vane type pump>oil suct.pipe) |
|
| 6 |
4B0422893A |
flexible hose |
|
| 8 |
4B1422891G |
return hose (cooling pipe > steering gear) lhd |
|
| 9 |
4B0422885AE |
cooling pipe |
|
