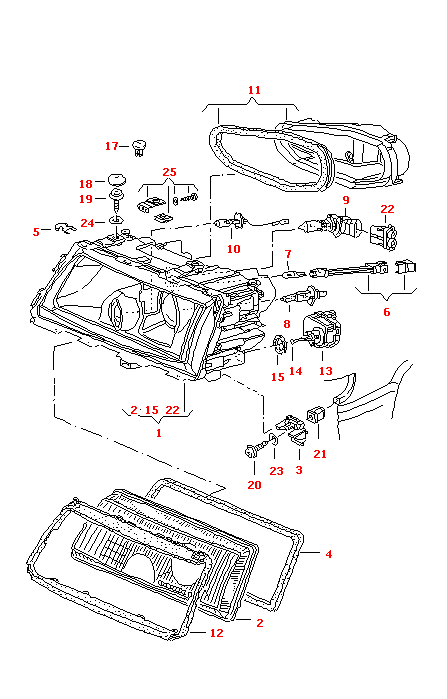

Оригинальный
номер |
Название |
Заказ |
|
4D0941659 01C |
satin black |
|
|
441881367 01C |
satin black |
|
| (1) |
4D0941029E |
halogen triple headlight unit (right-hand traffic only) also use: left |
|
| (1) |
4D0941030G |
halogen triple headlight unit (left-hand traffic only) also use: right |
|
| (1) |
4D0941030F |
halogen triple headlight unit (left-hand traffic only) also use: right |
|
| (1) |
4D0941030E |
halogen triple headlight unit (right-hand traffic only) also use: right |
|
| (1) |
4D0941029F |
halogen triple headlight unit (left-hand traffic only) also use: left |
|
| (1) |
4D0941029G |
halogen triple headlight unit (left-hand traffic only) also use: left |
|
| (11) |
4D0941159D |
protective cap right |
|
| (11) |
4D0941159E |
protective cap left |
|
| (12) |
4D0941192 |
sealing frame right |
|
| (19) |
N 90539701 |
fillister head bolt (combi.) M6X18Z2 |
|
| (2) |
4D0941115A |
headlight lens (halogen) for headlamps left |
|
| (2) |
4D0941116 |
headlight lens (halogen) for headlamps right |
|
| (2) |
4D0941116A |
headlight lens (halogen) for headlamps right |
|
| (20) |
N 10003203 |
oval head panel screw (combi) ST4,8X19-C-Z2 |
|
| (6) |
7M0941953A |
park light bulb holder with wiring harness |
|
| - |
8D0971966 |
rd. connector sleeve housing 5 pin |
|
| - |
8D0941189 |
grommet |
|
| 10 |
N 0177622 |
halogen bulb for fog lamp YC12V55W H3 |
|
| 12 |
4D0941191 |
sealing frame left |
|
| 13 |
4D0941295 |
headlight range control motor |
|
| 14 |
533941141B |
adjusting screw M5X57 |
|
| 15 |
443941323 |
seal |
|
| 17 |
4D0941659 |
cover cap |
|
| 18 |
441881367 |
cap for screw |
|
| 2 |
4D0941115 |
headlight lens (halogen) for headlamps left |
|
| 21 |
811807577C |
insert nut |
|
| 22 |
441998922 |
1 set of connectors |
|
| 25 |
4D0998121 |
repair kit for headlamp housing F 4D-T-001 034>> |
|
| 3 |
893941117A |
retaining bracket |
|
| 4 |
4D0941119 |
gasket |
|
| 5 |
893941125 |
retaining spring |
|
| 7 |
N 90653801 |
bulb HL12V5W |
|
| 8 |
N 0177612 |
halogen bulb for low beam 12V55W H1 |
|
| 9 |
N 10130101 |
halogen bulb for high beam 12V65W |
|
