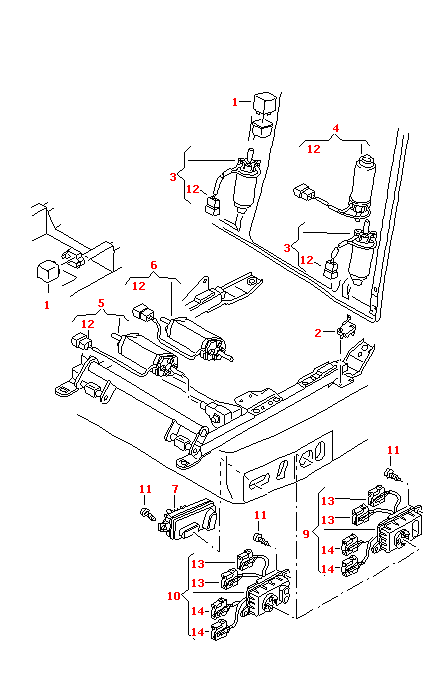

Оригинальный
номер |
Название |
Заказ |
|
4D0959777A 01C |
satin black |
|
|
4D0959777 01C |
satin black |
|
|
4A0959766A 01C |
satin black |
|
|
4A0959765A 01C |
satin black |
|
| (1) |
191927841 |
relay |
|
| (2) |
4D0959489D |
micro switch F 4D-W-000 001>>* |
|
| (7) |
4A0959766A |
switch for seat, backrest and head restraint adjustment right |
|
| 10 |
4D0959777A |
switch for electric lumbar and seat belt height adjustment use for: for vehicles with headrest, electrically adjusted |
|
| 11 |
N 0139587 |
oval head panel screw ST3,5X13-C |
|
| 12 |
893971992 |
flat terminal pin housing 2 pin |
|
| 13 |
4A0972242 |
rd. connector sleeve housing 3 pin |
|
| 14 |
4A0972244 |
rd. connector sleeve housing 3 pin |
|
| 2 |
4D0959489B |
micro switch F >> 4D-V-009 844* |
|
| 3 |
4D0959761D |
motor for headrest adjustment lumbar support adjust. motor for height adjustment |
|
| 4 |
4D0959761E |
lumbar support adjust. motor for longitudinal adjustment |
|
| 5 |
4D0959761F |
seat adjustment motor for longitudinal adjustment |
|
| 6 |
4D0959761G |
seat adjustment motor for height adjustment |
|
| 7 |
4A0959765A |
switch for seat, backrest and head restraint adjustment left |
|
| 9 |
4D0959777 |
switch for lumbar adjustment |
|
