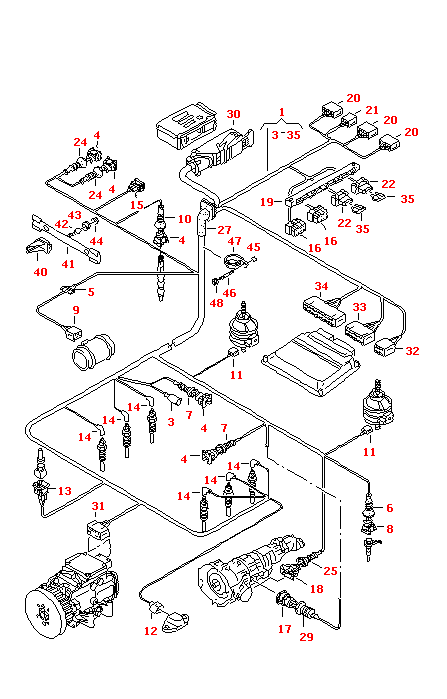

Оригинальный
номер |
Название |
Заказ |
| (11) |
1J0973703 |
flat contact housing with helper contact catch oil level sensor 3 pin |
|
| (18) |
1J0973715 |
flat contact housing F 4D-1-000 001>> coupling piece multi-function switch for automatic gearbox 10 pin |
|
| (21) |
4A0972244 |
rd. connector sleeve housing 3 pin |
|
| (21) |
4A0972242 |
rd. connector sleeve housing 3 pin |
|
| (3) |
1J0973701 |
flat contact housing connecting part oil pressure switch 1 pin |
|
| (32) |
038906379B |
flat contact housing electronic control unit 40 pin |
|
| (4) |
1J0973702 |
flat connector housing connecting part switch for reversing light F 4D-2-000 001>> 2 pin |
|
| 10 |
443906102G |
grommet 13,5X19 |
|
| 11 |
1J0973702 |
flat connector housing connecting part engine mounting 2 pin |
|
| 12 |
1J0973704 |
flat contact housing with helper contact catch connecting part thrust sensor 4 pin |
|
| 13 |
357919754 |
flat contact housing connecting part temperature sender with switch 4 pin |
|
| 14 |
028971782A |
angled connector with harness glow plug 340MM |
|
| 15 |
1J0973723G |
flat contact housing connecting part speed sender 3 pin |
|
| 16 |
443937528 |
relay plate 9 pin |
|
| 17 |
8D0972984 |
round connector housing connecting part 5 speed automatic gearbox 16 pin |
|
| 18 |
443972984 |
rd. connector sleeve housing F >> 4D-Y-020 000 coupling piece multi-function switch for automatic gearbox 8 pin |
|
| 19 |
812937503A |
relay plate |
|
| 20 |
8A0972986 |
rd. connector sleeve housing coupling piece wiring harness for dash panel and engine compartmet 10 pin |
|
| 22 |
1H0937530 |
fuse box for flat fuses 2 pin |
|
| 24 |
443906102C |
grommet 18X20,5 |
|
| 25 |
443906102F |
grommet 8X20 |
|
| 27 |
4D0971871 |
grommet |
|
| 29 |
8D0972525 |
grommet |
|
| 30 |
8D1906370 |
flat contact housing with gasket 88-pin |
|
| 31 |
4B0972709A |
rd. connector sleeve housing connecting part injection pump 9 pin |
|
| 32 |
4B0906971 |
flat contact housing connecting part electronic control unit 9 pin |
|
| 33 |
4B0906230 |
flat contact housing with cap connecting part electronic control unit 24 pin |
|
| 34 |
4B0906232 |
flat contact housing with cap connecting part electronic control unit 52 pin |
|
| 4 |
443906232 |
flat contact housing connecting part wastegate switch for reversing light pressure converter oil temperature gauge sender injector solenoid change-over valve throttle valve 2 pin |
|
| 5 |
4D0971872A |
grommet |
|
| 6 |
443906102C |
grommet 18X20,5 |
|
| 7 |
443906102B |
grommet 18X20,5 |
|
| 8 |
443906233 |
flat contact housing connecting part sender for vehicle speed 3 pin |
|
| 9 |
1J0973775A |
flat contact housing with helper contact catch connecting part air volume meter 5 pin |
|
