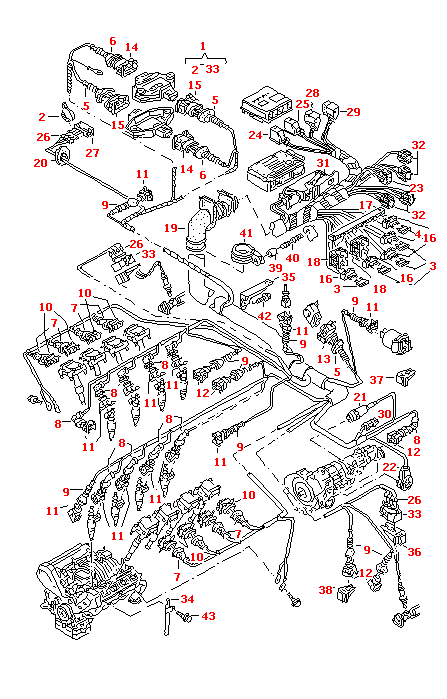

Оригинальный
номер |
Название |
Заказ |
| (10) |
1J0973724 |
flat contact housing connecting part ignition coil 4 pin |
|
| (11) |
1J0973752 |
flat contact housing connecting part secondary air pump 2 pin |
|
| (12) |
4B0973712 |
flat contact housing with helper contact catch connecting part dual temperature sender 4 pin |
|
| (12) |
1J0973703 |
flat contact housing with helper contact catch connecting part oil level sensor 3 pin |
|
| (12) |
1J0973723G |
flat contact housing speed sender 3 pin |
|
| (13) |
1J0973713 |
flat contact housing connecting part throttle valve positioner 6 pin |
|
| (21) |
1J0973715 |
flat contact housing for 5-speed automatic gearbox F 4D-1-000 001>> 10 pin |
|
| (21) |
443972984 |
rd. connector sleeve housing for 5-speed automatic gearbox F >> 4D-Y-020 000 8 pin |
|
| (22) |
8D0972984 |
round connector housing connecting part for 5-speed automatic gearbox 16 pin |
|
| (23) |
4A0972244 |
rd. connector sleeve housing 3 pin |
|
| (23) |
4A0972242 |
rd. connector sleeve housing 3 pin |
|
| (24) |
1J0906385C |
flat contact housing connecting part electronic control unit 81-pin |
|
| (25) |
038906379B |
flat contact housing connecting part electronic control unit 40 pin |
|
| (27) |
1J0973775A |
flat contact housing with helper contact catch connecting part air volume meter 5 pin |
|
| (30) |
1J0973702 |
flat connector housing connecting part engine mounting 2 pin |
|
| (9) |
6N0906102 |
grommet connecting part oil level sensor 11,9X53 |
|
| - |
8D0972525 |
grommet for 5-speed automatic gearbox |
|
| - |
6X0971921A |
protective cap flat contact housing F 4D-1-000 001>> |
|
| - |
1J0973701 |
flat contact housing connecting part oil pressure switch 1 pin |
|
| 10 |
4D0906232 |
flat contact housing connecting part ignition coil 3 pin |
|
| 11 |
443906232 |
flat contact housing injector valve temperature sensor temperature sender temperature sensor solenoid valve control valve connecting part solenoid change-over valve variable intake manifold 2 pin |
|
| 12 |
443906233 |
flat contact housing anti-knock sensor distance sensor hall sender 3 pin |
|
| 13 |
025906238B |
flat terminal pin housing throttle valve potentiometer 6 pin |
|
| 14 |
4A0906234 |
flat contact housing contr.unit power output stage 4 pin |
|
| 15 |
443906235 |
flat contact housing contr.unit power output stage 5 pin |
|
| 16 |
1H0937530 |
fuse box for flat fuses 2 pin |
|
| 17 |
812937503A |
relay plate |
|
| 18 |
443937528 |
relay plate 9 pin |
|
| 19 |
4D0971871 |
grommet |
|
| 2 |
N 0209022 |
cable tie 6X246 |
|
| 20 |
4D0971872A |
grommet |
|
| 23 |
. |
discontinued / replacement: 4A0 972 242 |
|
| 26 |
357972741 |
single wiring seal for wire cross section: 5,6X7,8 |
|
| 28 |
1J0906379B |
flat contact housing with gasket electronic control unit 28 pin |
|
| 29 |
4A0972805C |
flat contact housing with cap 12 pin |
|
| 3 |
N 01713112 |
flat fuse 19/2x5 15-light blue |
|
| 30 |
813972923 |
flat contact housing with helper contact catch and grommet 2 pin |
|
| 31 |
8D1906370 |
flat contact housing with gasket connecting part automatic gearbox control unit 88-pin |
|
| 32 |
8A0972986 |
rd. connector sleeve housing coupling piece wiring harness for dash panel and engine compartmet 10 pin |
|
| 33 |
3A0973204 |
flat contact housing lambda probe 4 pin |
|
| 4 |
N 01713113 |
flat fuse 19/2x5 20-yellow |
|
| 5 |
4A0906102 |
grommet 30 |
|
| 6 |
4A0906102A |
grommet |
|
| 7 |
443906102B |
grommet ignition coil 18X20,5 |
|
| 8 |
443906102C |
grommet 18X20,5 |
|
| 9 |
443906102G |
grommet 13,5X19 |
|
