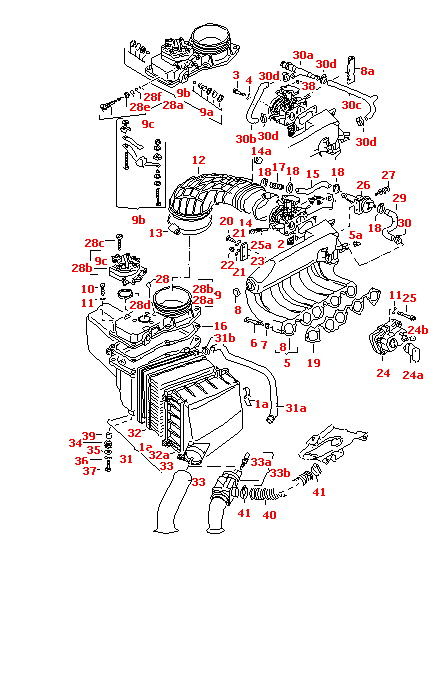

Оригинальный
номер |
Название |
Заказ |
| (24) |
063133403 |
warm-up valve |
|
| (26) |
049133453B |
auxiliary air valve |
|
| - |
056129777 |
cap 4MM |
|
| - |
N 0202902 |
hose in coils of 5m order unit 5 12X3,5 |
|
| - |
035133847 |
plug 12MM |
|
| - |
035133993A |
plug 25MM |
|
| - |
068121324 |
cap |
|
| - |
N 10258201 |
pipe clip AL12-22 |
|
| - |
035133382T |
t-piece |
|
| - |
035198691 |
set of gaskets for fuel metering valve |
|
| 01 |
049129627S |
air hose 50,2X500MM |
|
| 02 |
N 0245044 |
pipe clip LC40-60 |
|
| 10 |
N 01021710 |
hexagonal head bolt M6X20 |
|
| 11 |
N 0122265 |
spring washer B6X12X0,5 |
|
| 12 |
035133357M |
elbow use if required: shorten to: |
|
| 13 |
N 0245212 |
pipe clip AL120-140 |
|
| 14 |
N 0245183 |
pipe clip AL70-90 |
|
| 14A |
049133777A |
plug for co adjusting screw |
|
| 16 |
049133379A |
gasket |
|
| 17 |
049133382C |
joint pipe 14MM |
|
| 18 |
N 90561801 |
pipe clip AL16-28 |
|
| 19 |
034129717M |
gasket |
|
| 1A |
867129797 |
sealing clip |
|
| 2 |
037133073A |
gasket |
|
| 20 |
N 01023911 |
hexagonal head bolt M8X18 |
|
| 21 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 22 |
N 90085001 |
hexagon nut, self-locking M8 |
|
| 23 |
055129723A |
support |
|
| 24 |
035133403 |
warm-up valve |
|
| 24A |
443972525 |
grommet flat connector housing |
|
| 24B |
063133415 |
protective cap |
|
| 25 |
N 0447033 |
allen key head bolt M6X45 |
|
| 25A |
049133432 |
adjusting screw |
|
| 26 |
035133453A |
auxiliary air valve |
|
| 28C |
035133483C |
cheese head bolt |
|
| 28D |
034133476 |
round seal 29,5X1,5 |
|
| 3 |
N 0147172 |
allen key head bolt M8X40 |
|
| 30 |
N 90561801 |
pipe clip AL16-28 |
|
| 30C |
067133783 |
hose |
|
| 30D |
N 90561801 |
pipe clip AL16-28 |
|
| 32 |
021129620 |
air cleaner element |
|
| 32A |
035133849 |
air cleaner housing |
|
| 34 |
055129669 |
rubber mounting 17/11,8 |
|
| 35 |
N 01167016 |
washer 8,4X24X2 |
|
| 36 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 37 |
N 01024222 |
hexagonal head bolt M8X25 |
|
| 38 |
046129559 |
clips |
|
| 39 |
034133861 |
sleeve |
|
| 4 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 5A |
431611817 |
cover cap 9X14 |
|
| 6 |
N 0147112 |
allen key head bolt M8X65 |
|
| 7 |
N 01155811 |
washer 8,4X15X1,6 |
|
| 8 |
059103113 |
locking cover 36,6 |
|
| 8A |
035133239B |
abutment |
|
| 9A |
063133417 |
control lever mounting |
|
| 9B |
063133419 |
limit stop arm |
|
| 9C |
035198685 |
parts kit for fuel metering valve |
|
