Оригинальный
номер |
Название |
Заказ |
|
8D0877255C 78Y |
twist (beige) -EH |
|
|
8D9877794 01C |
satin black |
|
|
8D9877793 01C |
satin black |
|
|
8D9877792A 01C |
satin black |
|
|
8D0877255C 45A |
royale blue -EK |
|
|
8D0877255C 77R |
platinum -AW,AX,AY,EG, |
|
|
8D9877791A 01C |
satin black |
|
|
8D0877255C 84N |
soul (black) -AS,AT,AU,AV, |
|

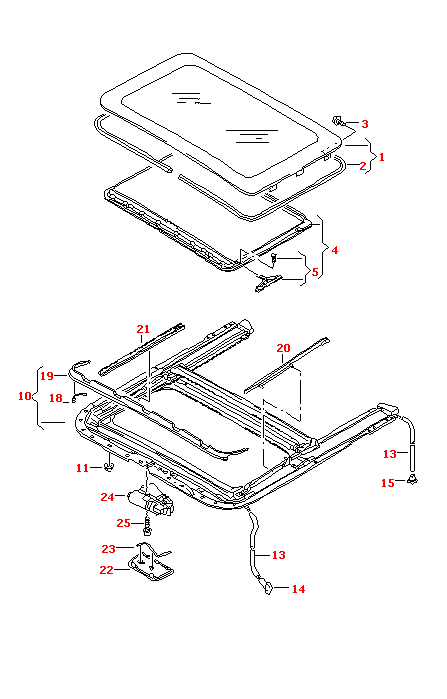

| (1) |
8D9877071A |
glass sliding roof panel |
|
| (11) |
N 90436901 |
hex. nut with washer M6 |
|
| (11) |
N 10321001 |
bolt, hexagon head self-locking M6X16MK |
|
| (13) |
3B5877233 |
water drain hose shorten to: 1605MM |
|
| (13) |
3B5877233 |
water drain hose shorten to: 1605MM |
|
| (13) |
4A9877233 |
water drain hose shorten to: 1930MM |
|
| (20) |
8D9877793 |
trim left lower |
|
| (20) |
8D9877791A |
trim left upper |
|
| (21) |
8D9877794 |
trim right lower |
|
| (21) |
8D9877792A |
trim right upper |
|
| (3) |
8D0877721C |
torx socket fillister head screw, self-locking M5X14 |
|
| - |
447971843B |
retainer, swivelling water drain hose 15/16 |
|
| - |
8D0877237 |
terminal water drain hose |
|
| 10 |
8L0877049C |
frame with operating mechanism |
|
| 13 |
4A9877233 |
water drain hose shorten to: 1930MM |
|
| 14 |
4D0877242B |
drain tube front |
|
| 14 |
4D0877242B |
drain tube front |
|
| 15 |
8D0877242 |
drain tube rear |
|
| 19 |
8D9877651E |
wind deflector |
|
| 2 |
8E0877297 |
gasket |
|
| 23 |
895877849 |
crank for winding gear |
|
| 25 |
8D9877721 |
torx socket fillister hd. bolt M5X33 |
|
| 4 |
8D0877255C |
frame for sliding roof opening with cover |
|
