Оригинальный
номер |
Название |
Заказ |
| 1 |
S11-1103010 |
FUEL TANK CAP ASSY |
|
| 1 |
S11-1103010 |
FUEL TANK CAP ASSY |
|
| 10 |
S11-1106610CA |
ELECTRIC FUEL PUMP ASSY |
|
| 10 |
S11-1106610CA |
ELECTRIC FUEL PUMP ASSY |
|
| 11 |
S11-1101110 |
TANK FUEL |
|
| 11 |
S11-1101110 |
TANK FUEL |
|
| 12 |
S11-1100015 |
BAND |
|
| 12 |
S11-1100015 |
BAND |
|
| 13 |
Q1460825 |
BOLT HEXAGON HEAD |
|
| 13 |
Q1460825 |
BOLT HEXAGON HEAD |
|
| 14 |
S11-1101215 |
HOSE I,FILLER |
|
| 14 |
S11-1101215 |
HOSE I,FILLER |
|
| 15 |
S11-1104230 |
PIPE III RETURN |
|
| 15 |
S11-1104230 |
PIPE III RETURN |
|
| 16 |
AQ60131 |
CLAMP - ELASTIC |
|
| 16 |
AQ60131 |
CLAMP - ELASTIC |
|
| 17 |
S11-1117111 |
EARTH WIRE |
|
| 17 |
S11-1117111 |
EARTH WIRE |
|
| 18 |
S11-1104130BA |
FUEL HOSE I ASSY,INLET |
|
| 18 |
S11-1104130BA |
FUEL HOSE I ASSY,INLET |
|
| 19 |
S11-1117110 |
FILTER SET,FUEL |
|
| 19 |
S11-1117110 |
FILTER SET,FUEL |
|
| 2 |
S11-1101217 |
HOSE II,FILLER |
|
| 2 |
S11-1101217 |
HOSE II,FILLER |
|
| 20 |
S11-1104231 |
FUEL VAPOR HOSE I |
|
| 20 |
S11-1104231 |
FUEL VAPOR HOSE I |
|
| 21 |
S11-1100025 |
BAND |
|
| 21 |
S11-1100025 |
BAND |
|
| 22 |
S11-1208110 |
ACTIVE CARBON RESERVOIR ASSY |
|
| 22 |
S11-1208110 |
ACTIVE CARBON RESERVOIR ASSY |
|
| 23 |
AQ60214 |
SINGLE EAR NON-STAGE CLAMP |
|
| 23 |
AQ60214 |
SINGLE EAR NON-STAGE CLAMP |
|
| 24 |
S11-1208113 |
ACTIVE CARBON RESERVOIR PROTECTED BOX |
|
| 24 |
S11-1208113 |
ACTIVE CARBON RESERVOIR PROTECTED BOX |
|
| 25 |
S11-1104233 |
HOSE I VENT |
|
| 25 |
S11-1104233 |
HOSE I VENT |
|
| 26 |
S11-1104250 |
TUBE II VENT |
|
| 26 |
S11-1104250 |
TUBE II VENT |
|
| 27 |
S11-1104291 |
FUEL VAPOR HOSE FIXING CLIP |
|
| 27 |
S11-1104291 |
FUEL VAPOR HOSE FIXING CLIP |
|
| 28 |
S11-1104220 |
FUEL RETURN PIPE I ASSY |
|
| 28 |
S11-1104220 |
FUEL RETURN PIPE I ASSY |
|
| 29 |
S11-1104170 |
FUEL INLET HOSE III ASSY |
|
| 29 |
S11-1104170 |
FUEL INLET HOSE III ASSY |
|
| 30 |
S11-1208217 |
REGENERATIVE ELETROMAGNETIC VALVE |
|
| 30 |
S11-1208217 |
REGENERATIVE ELETROMAGNETIC VALVE |
|
| 34 |
S11-1100051 |
3RD CLIP PIPE |
|
| 34 |
S11-1100051 |
3RD CLIP PIPE |
|
| 35 |
S11-1100053 |
THREE-SLOT FASTENING CLIP I |
|
| 35 |
S11-1100053 |
THREE-SLOT FASTENING CLIP I |
|
| 36 |
S11-1100047 |
FIVE-SLOT FASTENING CLIP II |
|
| 36 |
S11-1100047 |
FIVE-SLOT FASTENING CLIP II |
|
| 37 |
S11-1100043 |
FIVE-SLOT FASTENING CLIP I |
|
| 37 |
S11-1100043 |
FIVE-SLOT FASTENING CLIP I |
|
| 38 |
Q32006 |
NUT |
|
| 38 |
Q32006 |
NUT |
|
| 39 |
Q2780616 |
SCREW |
|
| 39 |
Q2780616 |
SCREW |
|
| 4 |
Q1460616 |
BOLT SET |
|
| 4 |
Q1460616 |
BOLT SET |
|
| 40-1 |
S11-1208210 |
REGENERATIVE ELETROMAGNETIC VA |
|
| 40-1 |
S11-1208210 |
REGENERATIVE ELETROMAGNETIC VA |
|
| 40-2 |
465Q-1AD-1207850 |
REGENERATIVE ELETROMAGNETIC VA |
|
| 40-2 |
465Q-1AD-1207850 |
REGENERATIVE ELETROMAGNETIC VA |
|
| 41 |
AQ60213 |
SINGLE EAR NON-STAGE CLAMP |
|
| 41 |
AQ60213 |
SINGLE EAR NON-STAGE CLAMP |
|
| 42 |
S11-1208219 |
PIPE OUTLET-SOLENOID VALVE |
|
| 42 |
S11-1208219 |
PIPE OUTLET-SOLENOID VALVE |
|
| 43 |
S11-1104253 |
HOSE II VENT |
|
| 43 |
S11-1104253 |
HOSE II VENT |
|
| 44 |
S11-1106615CA |
GAUGE FUEL TANK |
|
| 44 |
S11-1106615CA |
GAUGE FUEL TANK |
|
| 45 |
465Q-1AD-1000114 |
SLEEVE |
|
| 45 |
465Q-1AD-1000114 |
SLEEVE |
|
| 5 |
S11-1101213 |
REFUELING PIPE FIXED CLIP |
|
| 5 |
S11-1101213 |
REFUELING PIPE FIXED CLIP |
|
| 6 |
AQ60122 |
ELASTIC CLAMP |
|
| 6 |
AQ60122 |
ELASTIC CLAMP |
|
| 7 |
S11-1101311 |
FUEL TANK SHOCK ABSORBER PAD |
|
| 7 |
S11-1101311 |
FUEL TANK SHOCK ABSORBER PAD |
|
| 8 |
A11-1101153 |
FUEL TANK PRESSURE CAP |
|
| 8 |
A11-1101153 |
FUEL TANK PRESSURE CAP |
|
| 9 |
A11-1101151 |
FUEL TANK SEAL RING |
|
| 9 |
A11-1101151 |
FUEL TANK SEAL RING |
|

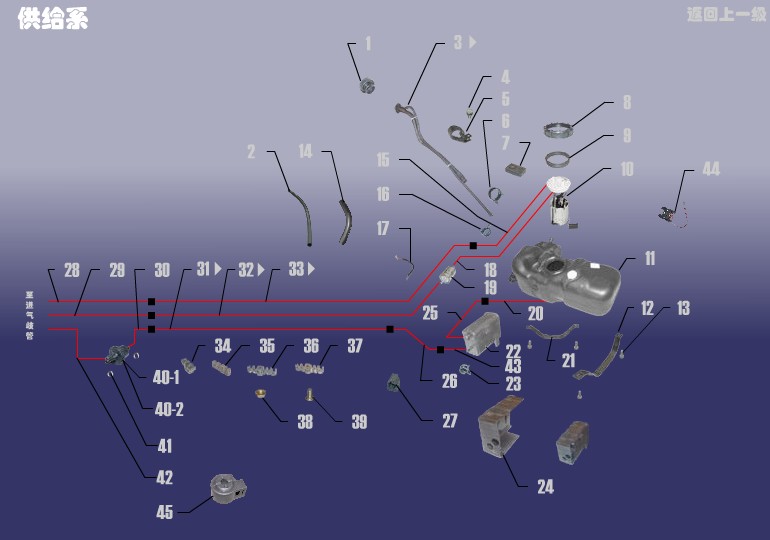

![SUPPLY SYSTEM ... [СИСТЕМА ПИТАНИЯ] (ENGINE ACCESSORY ... [ДВИГАТЕЛЬ В СБОРЕ])](http://www.allspare.ru/images/chery/84d950c8eb4b13981ffab6429c7d4e48.jpg)
