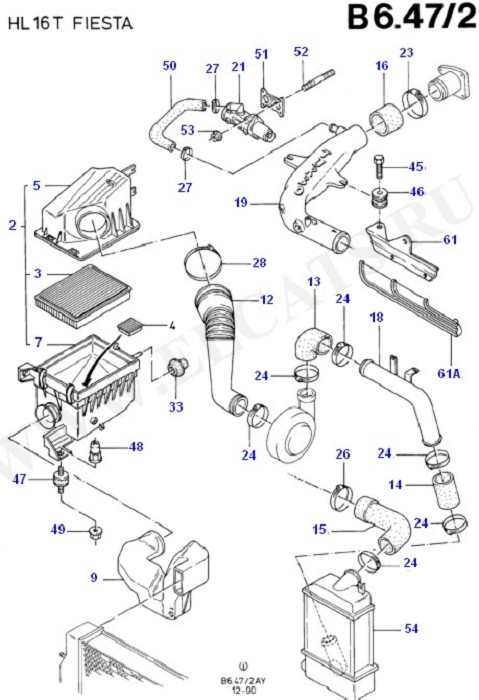

Оригинальный
номер |
Название |
Заказ |
|
6617375 |
Hose - Vent | CVH 1.6 EFI Turbo (130PS) |
|
| 1 |
6191033 |
Cleaner Assy - Air to 15/7/1990 | CVH 1.6 EFI (110PS) |
|
| 10 |
1652956 |
Hose - Connecting | CVH 1.6 EFI (110PS) |
|
| 10 |
7169443 |
Hose - Connecting | CVH 1.4 EFI |
|
| 11 |
6185826 |
Hose - Connecting | CVH 1.6 EFI (110PS) |
|
| 12 |
1661305 |
Hose - Connecting | CVH 1.6 EFI Turbo (130PS) |
|
| 13 |
1656678 |
Hose - Connecting | CVH 1.6 EFI Turbo (130PS) |
|
| 14 |
6631163 |
Hose - Connecting | CVH 1.6 EFI Turbo (130PS) |
|
| 15 |
1656677 |
Hose - Connecting | CVH 1.6 EFI Turbo (130PS) |
|
| 16 |
1656667 |
Hose - Connecting | CVH 1.6 EFI Turbo (130PS) |
|
| 17 |
6200275 |
Duct - Air to 15/7/1990 | CVH 1.6 EFI (110PS) |
|
| 18 |
1661580 |
Duct - Air | CVH 1.6 EFI Turbo (130PS) |
|
| 19 |
6549546 |
Duct - Air | CVH 1.6 EFI Turbo (130PS) |
|
| 2 |
1661302 |
Cleaner Assy - Air | CVH 1.6 EFI Turbo (130PS) |
|
| 20 |
6178499 |
Valve Assy - Regulating to 15/7/1990 | CVH 1.6 EFI (110PS) |
|
| 21 |
6464929 |
Valve Assy - Regulating | CVH 1.6 EFI Turbo (130PS) to 15/7/1990 | |
|
| 22 |
6181166 |
Plate - Mounting to 15/7/1990 | CVH 1.6 EFI (110PS) |
|
| 23 |
5009886 |
Clamp - Hose | |
|
| 24 |
6130118 |
Clamp - Hose | CVH 1.6 EFI Turbo (130PS) |
|
| 25 |
6187217 |
Clamp - Hose | CVH 1.6 EFI (110PS) | CVH 1.6 EFI Turbo |
|
| 26 |
5009885 |
Clamp - Hose | CVH 1.6 EFI Turbo (130PS) |
|
| 27 |
6130114 |
Spring - Vacuum Switch | |
|
| 29 |
1528461 |
Screw to 15/7/1990 | CVH 1.6 EFI (110PS) | |
|
| 3 |
5029891 |
Element - Filter | CVH 1.6 |
|
| 3 |
6162293 |
Element - Filter | CVH 1.6 |
|
| 30 |
1470247 |
Screw | CVH 1.6 EFI (110PS) |
|
| 31 |
6192935 |
Retainer | CVH 1.6 EFI (110PS) |
|
| 32 |
1625093 |
Nut - Domed | CVH 1.6 EFI (110PS) | CVH 1.6 EFI Turbo |
|
| 32 |
1651866 |
Nut - Domed | CVH 1.4 EFI | CVH 1.6 EFI Turbo (130PS) |
|
| 33 |
1638498 |
Grommet | |
|
| 36A |
6617380 |
Hose - Vent | CVH 1.6 EFI Turbo (130PS) |
|
| 38A |
6617379 |
Hose - Vent | CVH 1.6 EFI Turbo (130PS) |
|
| 39 |
6187493 |
Hose - Vent | CVH 1.6 EFI Turbo (130PS) | CVH 1.6 Turb |
|
| 4 |
6186985 |
Element - Filter | |
|
| 40 |
6187495 |
Hose - Vent | |
|
| 41 |
6617376 |
Hose - Vent | CVH 1.6 EFI Turbo (130PS) |
|
| 43 |
6186766 |
Clamp - Hose | CVH 1.6 EFI (110PS) |
|
| 44 |
1641676 |
Screw And Washer Assy | CVH 1.6 EFI (110PS) |
|
| 45 |
1547304 |
Screw And Washer Assy | CVH 1.6 EFI Turbo (130PS) |
|
| 46 |
1659082 |
Insulator - Rubber | CVH 1.6 EFI Turbo (130PS) |
|
| 47 |
6754141 |
Insulator - Rubber | CVH 1.6 EFI Turbo (130PS) |
|
| 5 |
6191034 |
Housing | |
|
| 50 |
1659841 |
Hose - Connecting | CVH 1.6 EFI Turbo (130PS) |
|
| 51 |
6561838 |
Gasket | CVH 1.6 EFI (110PS) |
|
| 52 |
6464848 |
Stud | CVH 1.6 EFI Turbo (130PS) |
|
| 53 |
6146698 |
Nut - Special Hex. | CVH 1.6 EFI Turbo (130PS) |
|
| 54 |
1661301 |
Intercooler | CVH 1.6 EFI Turbo (130PS) |
|
| 55 |
1661304 |
Solenoid Assy | CVH 1.6 EFI Turbo (130PS) |
|
| 56 |
6555242 |
Hose - Connecting | CVH 1.6 EFI Turbo (130PS) |
|
| 57 |
6568436 |
Hose - Connecting | CVH 1.6 Turbo |
|
| 58 |
6173055 |
Screw And Washer Assy | CVH 1.6 EFI Turbo (130PS) |
|
| 59 |
6184167 |
Seal | |
|
| 6 |
6187005 |
Housing | CVH 1.6 EFI (110PS) |
|
| 60 |
6617381 |
Valve Assy - Crankcase Ventilation | |
|
| 61 |
1661721 |
Bracket | CVH 1.6 EFI Turbo (130PS) |
|
| 61A |
6200758 |
Separator - Ignition Wire | CVH 1.6 EFI Turbo (130PS) |
|
| 62 |
1663036 |
Kit - Idle Valve Conversion | CVH 1.6 EFI (110PS) |
|
| 63 |
1663032 |
Cleaner Assy - Air | CVH 1.6 EFI (110PS) |
|
| 66 |
1592026 |
Elbow | |
|
| 67 |
1663040 |
Hose - Connecting | |
|
| 7 |
1656672 |
Housing | CVH 1.6 EFI Turbo (130PS) |
|
| 8 |
6925898 |
Duct - Air Vent | CVH 1.4 EFI |
|
| 8 |
6190130 |
Duct - Air Vent | CVH 1.6 EFI (110PS) |
|
| 9 |
6603072 |
Duct - Air Vent | CVH 1.6 EFI Turbo (130PS) |
|
