Оригинальный
номер |
Название |
Заказ |
| 1 |

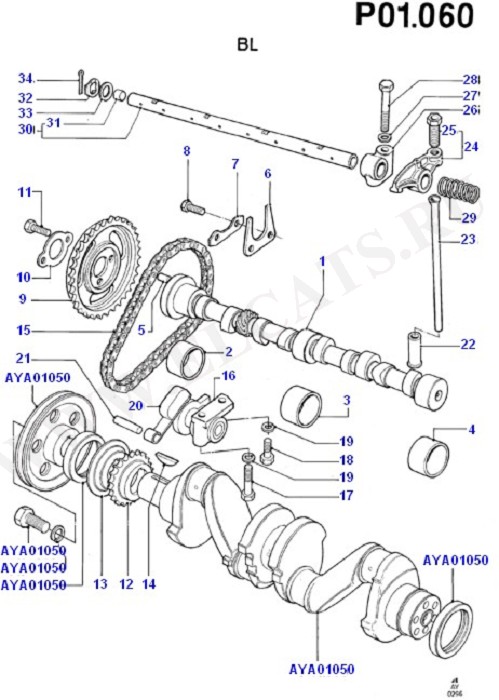

6165214 |
Camshaft from 15/1/1989 to 15/10/1994 | HCS 1.0 from |
|
| 1 |
6165215 |
Camshaft from 15/1/1989 to 15/11/1996 | HCS 1.3 CFI f |
|
| 1 |
6029395 |
Camshaft from 15/5/1976 to 15/8/1983 | |
|
| 1 |
1641007 |
Camshaft from 15/8/1983 to 15/8/1988 | from 15/8/1988 |
|
| 10 |
1710511 |
Plate - Locking | |
|
| 11 |
1494349 |
Bolt - Hex.Head to 15/3/1994 | GB |
|
| 11 |
0240909 |
Bolt - Hex.Head to 15/3/1994 | D |
|
| 12 |
1434861 |
Sprocket - Crankshaft | |
|
| 13 |
6029399 |
Baffle - Oil to 15/4/1998 | |
|
| 14 |
1760157 |
Key - Woodruff | |
|
| 15 |
6156318 |
Chain - Timing | |
|
| 16 |
1561781 |
Tensioner - Timing Chain | |
|
| 17 |
1613296 |
Bolt - Hex.Head | |
|
| 18 |
1472061 |
Bolt - Hex.Head | to 15/3/1994 | |
|
| 19 |
1613373 |
Lockwasher | |
|
| 2 |
6176756 |
Bearing | |
|
| 2 |
6176650 |
Bearing | |
|
| 20 |
6179974 |
Arm - Timing Chain Tensioner to 15/8/1998 | |
|
| 21 |
1728492 |
Pin - Timing Chain Tensioner Arm | |
|
| 22 |
1662935 |
Tappet - Valve from 15/1/1989 to 15/11/1996 | HCS 1.0 from |
|
| 22 |
1475650 |
Tappet - Valve to 15/1/1989 | Valencia 0.9 HC to 15/1/1989 |
|
| 23 |
6034231 |
Rod - Valve Push to 15/1/1989 | Fiesta 76/84 |
|
| 23 |
7312508 |
Rod - Valve Push from 15/1/1989 | HCS from 15/8/1988 to 15/1/ |
|
| 24 |
6032342 |
Arm And Screw Assy - Valve Rocker to 15/8/1988 | from 15/8/1988 to 15/1/1989 | |
|
| 24 |
6165232 |
Arm And Screw Assy - Valve Rocker from 15/1/1989 | HCS 1.3 |
|
| 24 |
6172215 |
Arm And Screw Assy - Valve Rocker from 15/1/1989 | HCS 1.3 |
|
| 24 |
6032341 |
Arm And Screw Assy - Valve Rocker to 15/8/1988 | from 15/8/1988 to 15/1/1989 | |
|
| 25 |
1433715 |
Screw - Adjusting - Self-Locking | |
|
| 26 |
6032343 |
Pedestal - Rocker Valve | |
|
| 27 |
1436268 |
Washer | |
|
| 28 |
1473187 |
Bolt - Hex.Head to 15/8/1988 | from 15/8/1988 to 15/1/1989 | |
|
| 29 |
1745326 |
Spring | |
|
| 3 |
1564428 |
Bearing | | |
|
| 3 |
1564429 |
Bearing | | |
|
| 30 |
6173513 |
Shaft - Valve Rckr.Arm - With Plugs | |
|
| 31 |
3416839 |
Plug | |
|
| 32 |
1639131 |
Washer - Spring | |
|
| 33 |
1760708 |
Washer - Flat | |
|
| 34 |
6166939 |
Pin - Split | |
|
| 5 |
1744815 |
Dowel - Pin | |
|
| 6 |
1710523 |
Plate - Thrust | |
|
| 7 |
1744817 |
Plate - Locking to 15/3/1994 | |
|
| 9 |
6029398 |
Sprocket - Camshaft to 15/8/1991 | HCS 1.0 to 15/8/1991 | HCS |
|
