Оригинальный
номер |
Название |
Заказ |

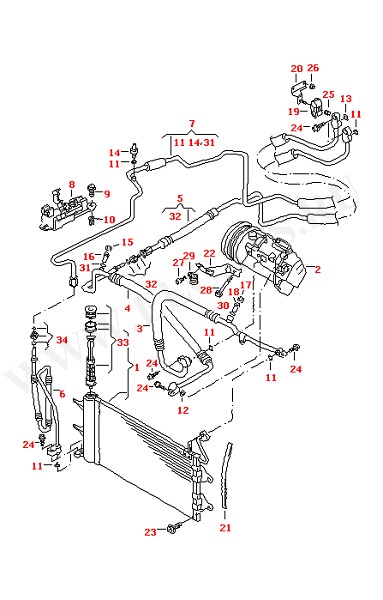

| (1) |
6Q0820411H |
refrigerant condenser F >> 9J-3-055 400* |
|
| (1) |
6QD820411 |
refrigerant condenser F 9J-3-055 408>>* |
|
| (3) |
6Q0820721M |
refrigerant hose (refrigerant compressor > refrigerant condenser) |
|
| (4) |
6Q0820744L |
refrigerant hose (expansion valve > refrigerant compressor) |
|
| (4) |
6Q0820744N |
refrigerant hose (expansion valve > refrigerant compressor) |
|
| (5) |
6Q1820743R |
refrigerant hose (expansion valve > refrigerant compressor > refrigerant condenser) lhd |
|
| (5) |
6Q2820743G |
refrigerant hose (expansion valve > refrigerant compressor > refrigerant condenser) rhd |
|
| (7) |
6Q2820741AC |
refrigerant hose rhd |
|
| (7) |
6Q1820741K |
refrigerant hose lhd |
|
| 10 |
811807577C |
insert nut |
|
| 11 |
8E0260749 |
round seal 10,8X1,8 |
|
| 12 |
8E0260749C |
seal 23,8X2,4 |
|
| 13 |
1J0820749 |
round seal 14,3X2,4 |
|
| 14 |
1J0959126 |
thrust sensor for vehicles with air condit. |
|
| 15 |
357820809B |
protective cap |
|
| 16 |
357820795H |
valve |
|
| 17 |
357820809C |
protective cap |
|
| 18 |
357820795J |
valve |
|
| 19 |
701820774A |
dual clip |
|
| 20 |
6Q0816811A |
bracket for refrigerant hose |
|
| 21 |
321820061D |
gasket 1220X12X10 |
|
| 22 |
6Q0820769B |
bracket for refrigerant pipe |
|
| 23 |
N 90817002 |
torx socket head panel screw 6X17-Q |
|
| 24 |
N 10414401 |
allen key head bolt M8X28 |
|
| 25 |
N 90455301 |
hexagon nut, shouldered 5 |
|
| 3 |
6Q0820721H |
refrigerant hose (refrigerant compressor > refrigerant condenser) |
|
| 3 |
6Q0820721N |
refrigerant hose (refrigerant compressor > refrigerant condenser) |
|
| 30 |
1J0820749 |
round seal 14,3X2,4 |
|
| 31 |
8E0260749 |
round seal 10,8X1,8 |
|
| 32 |
6Q0298260A |
repair kit for quick release coupling NW-13 |
|
| 33 |
6Q0820193A |
drier |
|
| 34 |
6Q0298260 |
repair kit for quick release coupling NW-8 |
|
| 4 |
6Q0820744F |
refrigerant hose (expansion valve > refrigerant compressor) |
|
| 5 |
6Q1820743F |
refrigerant hose (expansion valve > refrigerant compressor > refrigerant condenser) lhd |
|
| 6 |
6Q0820741A |
refrigerant hose (KAELTEMITTELKONDENSATOR> TRENNSTELLE) KAEL lhd 6Q1 820 741 J |
|
| 7 |
6Q1820741J |
refrigerant hose lhd |
|
| 8 |
6Q0820771A |
bracket for refrigerant hose |
|
| 9 |
N 01396921 |
oval head panel screw 4,8X16 |
|
