Оригинальный
номер |
Название |
Заказ |
|
3D5877255C MXF |
crystal grey -EX,EY,LA,LB, LD,LE,TC,TD, TF,TJ |
|
|
3D5877255C MXG |
sunshine beige -EZ,LC,TE |
|
|
3D5877651B B41 |
satin black |
|
|
3D5877255C MXJ |
sunshine beige -LC,TE |
|
|
3D5877255B MXJ |
sunshine beige -LC,TE |
|
|
3D5877255B MXH |
crystal grey -LA,LB,LD,LE, TC,TD,TF,TJ |
|
|
3D5877255B MXG |
sunshine beige -EZ,LC,TE |
|
|
3D5877255B MXF |
crystal grey -EX,EY,LA,LB, LD,LE,TC,TD, TF,TJ |
|
|
3D5877651A B41 |
schwarz |
|
|
3D5877789 B41 |
satin black |
|
|
3D5877297 B41 |
satin black |
|
|
3D5877790 B41 |
satin black |
|
|
3D5877255C MXH |
crystal grey -LA,LB,LD,LE, TC,TD,TF,TJ |
|

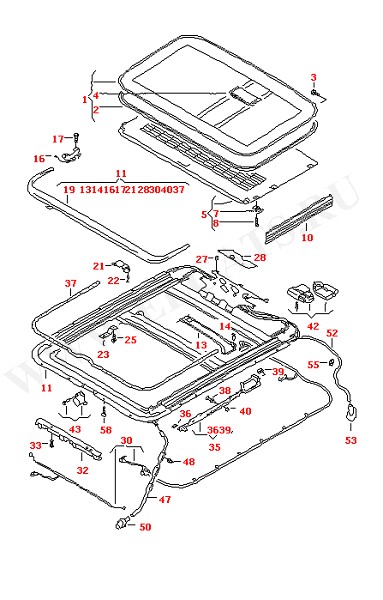

| (1) |
3D5877071A |
glass sliding roof panel for solar sliding roof |
|
| (10) |
3D5877790 |
trim right |
|
| (11) |
3D5877049A |
frame with operating mechanism for models with solar sliding sunroof |
|
| (16) |
3D0877485 |
bearing for wind deflector left |
|
| (19) |
3D5877651B |
wind deflector |
|
| (21) |
3D0877682 |
hinged fastener wind deflector right front |
|
| (23) |
3D0858307A |
retainer left |
|
| (35) |
3D0877152 |
gate guide also use: right 3D0 877 151 3D0 877 493 N 011 181 2 |
|
| (47) |
3D5877202 |
water drain hose right front |
|
| (5) |
3D5877255B |
frame for sliding roof opening with cover |
|
| (7) |
3D0877165 |
glide piece |
|
| 1 |
3D5877071 |
glass sliding roof panel |
|
| 10 |
3D5877789 |
trim left |
|
| 11 |
3D5877049 |
frame with operating mechanism for models with glass sliding sunroof |
|
| 13 |
3D0877633 |
water channel |
|
| 14 |
3D0877722 |
torx socket head panel screw |
|
| 16 |
3D0877486 |
bearing for wind deflector right |
|
| 17 |
N 0102017 |
hexagonal head bolt M4X8 |
|
| 19 |
3D5877651A |
wind deflector |
|
| 2 |
3D5877297 |
gasket |
|
| 21 |
3D0877681 |
hinged fastener wind deflector left front |
|
| 22 |
3D0877099 |
torx socket fillister head bolt (combi) 4X14 |
|
| 23 |
3D0858308A |
retainer right |
|
| 25 |
N 90566602 |
torx socket fillister hd. bolt M6X16-H-V |
|
| 3 |
8D0877721C |
torx socket fillister head screw, self-locking M5X14 |
|
| 35 |
3D0877151 |
gate guide also use: left 3D0 877 152 3D0 877 493 N 011 181 2 |
|
| 38 |
3D0877493 |
guide pin |
|
| 4 |
4B0907207A |
voltage transformer |
|
| 40 |
N 0111812 |
hexagon nut, self-locking M4 |
|
| 47 |
3D5877201 |
water drain hose left front |
|
| 48 |
3D0867334A |
bush |
|
| 5 |
3D5877255C |
frame for sliding roof opening with cover for solar sliding roof |
|
| 50 |
3D0877236 |
drain tube front |
|
| 52 |
3D5877233 |
water drain hose rear |
|
| 53 |
1J0877242 |
drain tube rear |
|
| 55 |
443971847B |
clip |
|
| 58 |
N 90566602 |
torx socket fillister hd. bolt M6X16-H-V |
|
| 8 |
3D0877721 |
torx socket fillister hd. bolt |
|
