Оригинальный
номер |
Название |
Заказ |
|
7E0883623 9B9 |
satin black |
|
|
7H0883669C 01A |
schwarz |
|
|
7H0883669F 01A |
schwarz |
|
|
7H0882635C 71N |
anthracite -XC,XD,XQ,XZ |
|
|
7H0882635C 3U6 |
artgrey -CS,CU,DN,GV, NE,WR,WS |
|

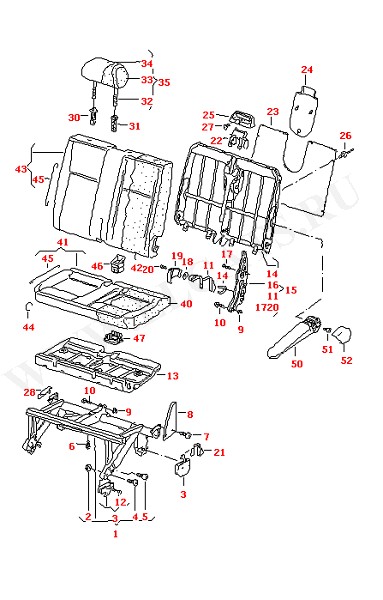

| (1) |
7H0883669F |
seat frame |
|
| (17) |
N 90941702 |
bolt, with multi-spilne socket head F 7H-4-550 001>> M10X45 |
|
| (2) |
N 0221464 |
hexagon nut, self-locking VM8 |
|
| (3) |
7H0883389 |
interlock rear |
|
| (4) |
N 91065901 |
fillister hd. bolt . F 7H-4-071 943>>* M10X45 |
|
| (5) |
N 91066001 |
fillister hd. bolt . F 7H-4-071 943>>* M8X45 |
|
| (8) |
7H0881461C |
fitting for bench seat F 7H-4-140 001>>* left |
|
| (8) |
7H0881462C |
fitting for bench seat F 7H-4-140 001>>* right |
|
| (8) |
7H0881462A |
fitting for bench seat F >> 7H-4-140 000* right |
|
| - |
7H0881368 |
protective cap |
|
| 1 |
7H0883669C |
seat frame |
|
| 10 |
N 91003801 |
fillister head bolt with multi-point socket head M12X55 |
|
| 11 |
7H0883875 |
pull loop |
|
| 12 |
7H0883867 |
cover cap |
|
| 13 |
7H0883331 |
seat well |
|
| 15 |
7H0883045H |
backrest frame |
|
| 16 |
7H0881321 |
adjusting mechanism |
|
| 17 |
N 0447068 |
allen key head bolt F >> 7H-4-550 000 M10X40 |
|
| 19 |
7H0883641 |
covering backrest catch |
|
| 2 |
N 10286102 |
shouldered hex. nut, self-locking M10 |
|
| 20 |
N 0351061 |
self-tapping screw AM6X12 |
|
| 21 |
7H0883605 |
pull loop |
|
| 23 |
7H0883611C |
rear panel trim |
|
| 24 |
7E0883623 |
cover cap |
|
| 25 |
7H0882635C |
cover cap belt guide |
|
| 26 |
N 90582501 |
pop-rivet A3,2X10X11 |
|
| 27 |
N 90986801 |
torx socket head panel screw ST4,2X13-R |
|
| 3 |
7H0883389A |
interlock front |
|
| 4 |
N 91003701 |
fillister hd. bolt . F >> 7H-4-071 942* M10X50 |
|
| 5 |
N 91003601 |
fillister hd. bolt . F >> 7H-4-071 942* M8X50 |
|
| 6 |
N 91007301 |
bolt, with polygon socket hd. (combi.) M6X15 |
|
| 7 |
N 91000001 |
fillister head bolt with multi-point socket head M10X20 |
|
| 8 |
7H0881461A |
fitting for bench seat F >> 7H-4-140 000* left |
|
| 9 |
N 10028908 |
hexagon nut, self-locking M12X1,5 |
|
