Оригинальный
номер |
Название |
Заказ |
|
706815081 01C |
satin black also use: 702 819 142 |
|
|
706819078 01C |
satin black |
|
|
705815081 01C |
satin black |
|
|
705819078 01C |
satin black |
|

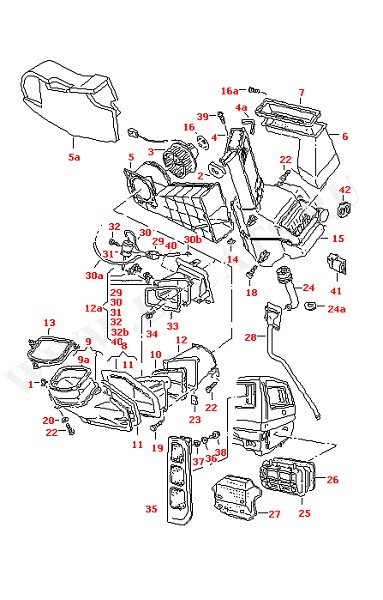

| (10) |
702819142 |
gasket rhd |
|
| (11) |
702819143 |
gasket connecting piece rhd |
|
| (12) |
702819155 |
intake manifold rhd |
|
| (15) |
702819353 |
air distribution housing rhd |
|
| (24) |
1H0820119 |
water drain valve F 70-R-120 001>>* |
|
| (28) |
702819933 |
water drain pipe F >> 70-R-120 000* rhd |
|
| (28) |
701819994 |
water drain pipe F 70-R-120 001>>* |
|
| (3) |
702819021A |
blower F 70-R-180 001>>* rhd |
|
| (3) |
8D2819021 |
blower F >> 70-R-180 000* rhd |
|
| (3) |
701819021B |
blower F 70-R-180 001>>* lhd |
|
| (31) |
702820627 |
vacuum unit for recirculated air operation possibility rhd |
|
| (4) |
702819031A |
heat exchanger rhd |
|
| (5) |
702819043B |
air duct for models with centre air vent rhd |
|
| (5) |
702819043 |
air duct rhd |
|
| (5) |
7D1819043 |
air duct for models with centre air vent lhd |
|
| (6) |
702819063 |
intermediate piece rhd |
|
| (8) |
706815081 |
connecting piece heater rear rhd |
|
| (8) |
705815081 |
connecting piece heater also use: rear lhd 701 819 142 |
|
| (9) |
705819078 |
connecting piece heater front lhd |
|
| (9) |
706819078 |
connecting piece heater front rhd |
|
| - |
N 0180571 |
hose in coils of 5m order unit 5 for recirculated air operation possibility 2,5X1,75 |
|
| 1 |
811807577C |
insert nut |
|
| 10 |
701819142 |
gasket lhd |
|
| 11 |
701819143 |
gasket connecting piece lhd |
|
| 12 |
701819155 |
intake manifold lhd |
|
| 13 |
701819162 |
covering |
|
| 14 |
321819059 |
clips |
|
| 15 |
701819353 |
air distribution housing lhd |
|
| 16 |
191819598 |
plug |
|
| 16A |
155853149 |
oval head panel screw H5X17 |
|
| 18 |
N 01021710 |
hexagonal head bolt M6X20 |
|
| 19 |
N 01021527 |
hexagonal head bolt M6X15 |
|
| 2 |
701819019 |
gasket |
|
| 20 |
N 0116653 |
washer 5,3X15X1,6 |
|
| 22 |
N 0139681 |
oval head panel screw ST4,8X13-C |
|
| 23 |
N 90168602 |
snap nut M6X16X24 |
|
| 24 |
701819124 |
water drain pipe F >> 70-R-120 000* |
|
| 25 |
357819465 |
vent trim |
|
| 26 |
321819017 |
gasket 680X8X10 |
|
| 27 |
703819485A |
cover cap |
|
| 28 |
701819933 |
water drain pipe F >> 70-R-120 000* lhd |
|
| 29 |
028906283 |
solenoid change-over valve for recirculated air operation possibility black |
|
| 3 |
893819021 |
blower F >> 70-R-180 000* lhd |
|
| 31 |
701820677 |
vacuum unit for recirculated air operation possibility lhd |
|
| 32 |
N 0102044 |
hexagonal head bolt for recirculated air operation possibility M4X10 |
|
| 33 |
191820129 |
gasket for recirculated air operation possibility 550X12X6 |
|
| 34 |
N 10080102 |
allen key head bolt (combi) for recirculated air operation possibility M6X25 |
|
| 4 |
701819031A |
heat exchanger lhd |
|
| 40 |
7D0819036 |
choke |
|
| 41 |
701959263 |
series resistance for fresh air and hot air blower 1,7/0,8/0,4 |
|
| 42 |
811819145A |
clips bowden cable |
|
| 4A |
7D0819069 |
gasket 810X25X6 |
|
| 5 |
701819043 |
air duct lhd |
|
| 6 |
701819063 |
intermediate piece lhd |
|
| 7 |
701819070 |
gasket |
|
| 9A |
701819141 |
gasket bonnet |
|
