Оригинальный
номер |
Название |
Заказ |
|

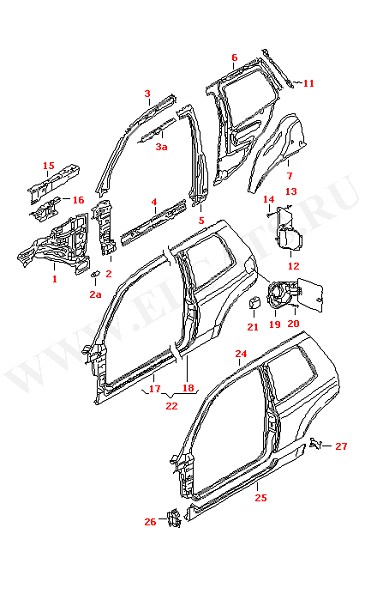

6X0809857E GRU |
primed |
|
| (1) |
6X0809101G |
wheel housing left front |
|
| (1) |
6X0809102E |
wheel housing right front |
|
| (11) |
6X0809642D |
water drain channel right |
|
| (12) |
6E0810971E |
wheel housingliner fleece left |
|
| (12) |
6E0810971D |
wheel housingliner fleece left |
|
| (12) |
6X0810972F |
wheel housingliner right |
|
| (12) |
6X0810972G |
wheel housingliner fleece right |
|
| (12) |
6E0810972E |
wheel housingliner fleece right |
|
| (12) |
6E0810972D |
wheel housingliner fleece right |
|
| (12) |
6X0810971H |
wheel housingliner fleece left |
|
| (15) |
6X0809146B |
side member for wheel housing right upper |
|
| (15) |
6X0809145B |
side member for wheel housing left upper |
|
| (16) |
6X0809141C |
mounting sheet left |
|
| (16) |
6X0809142C |
mounting sheet right |
|
| (17) |
6E3809839 |
sub-part: a-pillar with side member left |
|
| (17) |
6E3809839 |
sub-part: a-pillar with side member left |
|
| (17) |
6E3809839A |
sub-part: a-pillar with side member left |
|
| (17) |
6X3809840A |
sub-part: a-pillar with side member right |
|
| (17) |
6E3809840 |
sub-part: a-pillar with side member right |
|
| (17) |
6E3809840 |
sub-part: a-pillar with side member right |
|
| (17) |
6E3809840A |
sub-part: a-pillar with side member right |
|
| (18) |
6E3809844 |
sub-part - side panel right |
|
| (18) |
6E3809844 |
sub-part - side panel right |
|
| (18) |
6X3809844A |
sub-part - side panel right |
|
| (18) |
6E3809843A |
sub-part - side panel left |
|
| (18) |
6E3809843 |
sub-part - side panel left |
|
| (18) |
6E3809843 |
sub-part - side panel left |
|
| (18) |
6E3809844A |
sub-part - side panel right |
|
| (19) |
6X0809857E |
flap for fuel filler |
|
| (2) |
6X0809206B |
a-pillar, inner right lower |
|
| (22) |
6E3809605C |
side panel left outer |
|
| (22) |
6X3809606K |
side panel right outer |
|
| (22) |
6E3809606C |
side panel right outer |
|
| (22) |
6E3809606D |
side panel right outer |
|
| (22) |
6E3809605D |
side panel left outer |
|
| (26) |
6E0810222F |
end plate right front |
|
| (27) |
6E0810124A |
end plate right rear |
|
| (27) |
6E0810124 |
end plate right rear |
|
| (3) |
6X3809438D |
a-pillar, inner right upper |
|
| (4) |
6X3810608A |
side member right inner |
|
| (5) |
6X3809607G |
reinforcement for pillar b left inner |
|
| (5) |
6X3809608G |
reinforcement for pillar b right inner |
|
| (6) |
6E3809403A |
side panel, inner left |
|
| (6) |
6X3809404G |
side panel, inner right |
|
| (6) |
6E3809404A |
side panel, inner right |
|
| - |
6X0809690 |
corner reinforcement right inner |
|
| - |
6X0810117A |
filler plate for wheel housing left front |
|
| - |
6X0809689 |
corner reinforcement left inner |
|
| - |
6X0809931 |
spring flap for fuel filler |
|
| - |
6X0809932 |
leaf spring flap for fuel filler |
|
| - |
6E0809127 |
bearing bracket suspension strut mounting front |
|
| - |
6X0810118B |
filler plate for wheel housing right front |
|
| - |
6N0809127A |
bearing bracket suspension strut mounting front |
|
| - |
6X0810146F |
bracket for door check rod right |
|
| - |
N 90453703 |
rivetted cap nut M6X18,2/0,5-3 |
|
| - |
6X0810145F |
bracket for door check rod left |
|
| - |
6X3817250 |
roof frame reinforcement right front |
|
| - |
6X3817249 |
roof frame reinforcement left front |
|
| 11 |
6X0809641D |
water drain channel left |
|
| 12 |
6X0810971G |
wheel housingliner left |
|
| 13 |
N 90833801 |
expanding nut 4,8 |
|
| 14 |
N 90775001 |
torx socket head panel screw 4,8X16 |
|
| 17 |
6X3809839A |
sub-part: a-pillar with side member left |
|
| 18 |
6X3809843A |
sub-part - side panel left |
|
| 2 |
6X0809205B |
a-pillar, inner left lower |
|
| 20 |
N 90918701 |
torx socket head panel screw 4X12-Q |
|
| 21 |
6X0810901A |
guide part |
|
| 22 |
6X3809605K |
side panel left outer |
|
| 26 |
6E0810221F |
end plate left front |
|
| 27 |
6E0810123 |
end plate left rear |
|
| 27 |
6E0810123A |
end plate left rear |
|
| 3 |
6X3809437D |
a-pillar, inner left upper |
|
| 4 |
6X3810607A |
side member left inner |
|
| 6 |
6X3809403G |
side panel, inner left |
|
