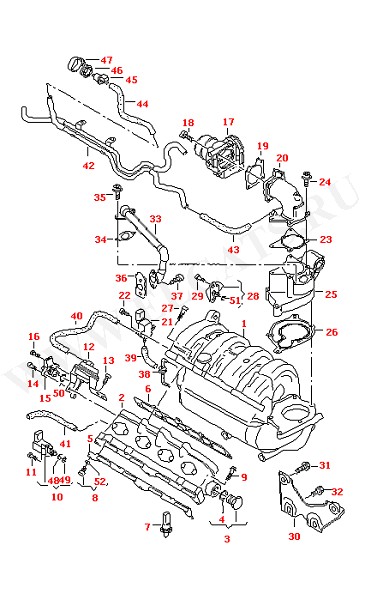

Оригинальный
номер |
Название |
Заказ |
| (12) |
036129061A |
vacuum unit |
|
| (18) |
N 10080202 |
allen key head bolt (combi) M6X50-Z1 |
|
| (2) |
036133204K |
intake manifold - lower part |
|
| (24) |
N 10413401 |
torx socket fillister hd. bolt M6X25-E |
|
| (45) |
1C0906517A |
valve |
|
| (50) |
036133696C |
seal 25X4 |
|
| (7) |
06D906051A |
thrust sensor |
|
| (9) |
N 10248701 |
hexagon socket head bolt with collar M8X75 |
|
| 1 |
036129711EE |
intake manifold - upper part |
|
| 10 |
036906336 |
control valve |
|
| 11 |
N 01470210 |
allen key head bolt M6X15 |
|
| 13 |
N 01470210 |
allen key head bolt M6X15 |
|
| 14 |
N 10053404 |
allen key head bolt M4X12 |
|
| 15 |
036907385C |
throttle valve potentiometer |
|
| 16 |
N 10053404 |
allen key head bolt M4X12 |
|
| 17 |
036133062D |
throttle valve control unit |
|
| 19 |
036133073F |
gasket |
|
| 20 |
036131567H |
connection piece |
|
| 21 |
037906283D |
solenoid valve |
|
| 22 |
N 10430101 |
torx socket fillister hd. bolt M5X16-E |
|
| 23 |
036133073B |
gasket |
|
| 24 |
N 10507501 |
torx socket fillister hd. bolt BM6X110X90 |
|
| 25 |
036131503P |
exhaust recirculation valve |
|
| 26 |
036133073H |
gasket |
|
| 27 |
N 90401901 |
allen key head bolt M8X28 |
|
| 28 |
036906051E |
thrust sensor |
|
| 29 |
N 0147047 |
cheese head bolt M6X20 |
|
| 3 |
WHT000001AE |
plug with seal M20X1,5-10X1 |
|
| 30 |
036129722 |
support |
|
| 31 |
N 10067003 |
hexagon head bolt c/w shoulder M8X92-V |
|
| 32 |
N 0195024 |
hexagon head bolt c/w shoulder M8X25 |
|
| 33 |
036131521BB |
connecting pipe |
|
| 34 |
036131550C |
gasket |
|
| 35 |
N 90365907 |
torx socket fillister hd. bolt M8X22-E-W |
|
| 36 |
036131547C |
gasket |
|
| 37 |
N 90365907 |
torx socket fillister hd. bolt M8X22-E-W |
|
| 38 |
036133773C |
vacuum hose |
|
| 39 |
036133784A |
angled hose |
|
| 4 |
036133696 |
seal 11,91X2,42 |
|
| 40 |
036133784 |
angled hose |
|
| 43 |
036133518AK |
connecting hose |
|
| 44 |
036133518BA |
connecting hose |
|
| 46 |
6X0133459A |
support ring |
|
| 47 |
6X0133519A |
bracket for valve |
|
| 48/49 |
036198149A |
gasket set for pressure regulator control valve |
|
| 5 |
036129717L |
gasket |
|
| 51 |
036906149D |
round seal 7,59X2,62 |
|
| 52 |
035906149A |
round seal 7,52X3,53 |
|
| 6 |
036129717K |
gasket |
|
| 8 |
036133235 |
insert for injector |
|
| 9 |
N 10476001 |
hexagon socket head bolt with collar M8X58 |
|
