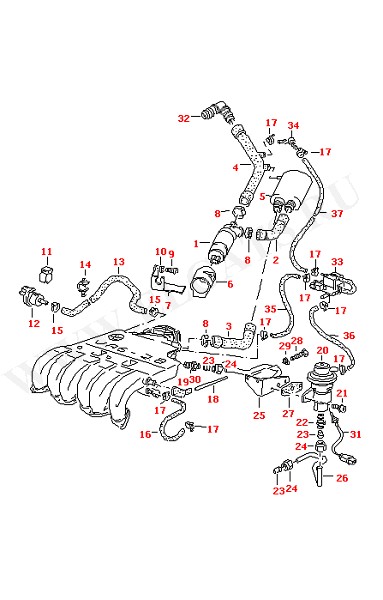

Оригинальный
номер |
Название |
Заказ |
|
N 10002201 |
clamp 13,8 |
|
| (11) |
054133459C |
support F 3A-T-000 001>>* |
|
| (12) |
058133517 |
solenoid valve F 3A-S-150 001>>* |
|
| (13) |
021133518G |
connecting hose F 3A-T-000 001>> |
|
| (13) |
021133518F |
connecting hose F >> 3A-S-300 000* |
|
| (21) |
027121631A |
double stud with hexagon drive M6X22/M6X14 |
|
| (25) |
021131561B |
pipe for exhaust recirculation |
|
| (7) |
021129785H |
abutment F 3A-T-000 001>> |
|
| (9) |
N 0147392 |
allen key head bolt also use: F 3A-T-000 001>> M8X16 N 011 558 11 |
|
| - |
867857707 |
spacer washer |
|
| - |
030133335A |
cap 12MM |
|
| - |
N 0203535 |
hose in coils of 5m order unit 5 3,5X2 |
|
| - |
037133843A |
filter |
|
| - |
034133784 |
angled hose 3,5MM |
|
| - |
N 0201391 |
tube in coils of 5m order unit 5 4X1 |
|
| - |
034133847 |
plug F >> 3A-S-300 000* 5MM |
|
| - |
N 0203535 |
hose in coils of 5m order unit 5 3,5X2 |
|
| - |
055131527 |
fuel condenser sound damper pan |
|
| - |
049131177 |
reducer hose for: 3,5/5,5X240MM 055 131 527 |
|
| 1 |
034133455B |
control valve for idling stabilization F >> 3A-S-300 000* |
|
| 10 |
N 01155811 |
washer 8,4X15X1,6 |
|
| 11 |
051133459 |
support ring F >> 3A-S-300 000* |
|
| 12 |
034133517 |
solenoid valve F >> 3A-S-150 000* |
|
| 14 |
021133687 |
bracket for hose |
|
| 15 |
N 10258201 |
pipe clip AL12-22 |
|
| 17 |
N 0243992 |
pipe clip A7X8 |
|
| 19 |
025129638 |
reducing piece 4/11,4MM |
|
| 2 |
021133374E |
angled hose F >> 3A-S-300 000* |
|
| 21 |
N 10172501 |
allen key head bolt (combi) M6X22-S4-SP |
|
| 22 |
067131507 |
threaded union |
|
| 23 |
N 0208221 |
die ring L10 |
|
| 24 |
N 0210231 |
union nut AL10 |
|
| 26 |
021131586A |
pipe for exhaust recirculation |
|
| 27 |
026131547 |
gasket |
|
| 28 |
N 01470210 |
allen key head bolt also use: M6X15 N 012 006 4 |
|
| 29 |
N 0120064 |
spring ring B6 |
|
| 3 |
021133374D |
angled hose F >> 3A-S-300 000* |
|
| 30 |
N 0208021 |
connection piece L10M-B |
|
| 31 |
021906529 |
temperature sensor |
|
| 32 |
073133382A |
angled piece |
|
| 33 |
054906267A |
valve |
|
| 34 |
037133382H |
angled piece 4MM |
|
| 4 |
021133394B |
hose use if required: F >> 3A-S-300 000* 034 133 847 |
|
| 5 |
021133429A |
damper F >> 3A-S-300 000* |
|
| 6 |
021133459A |
support ring F >> 3A-S-300 000* |
|
| 7 |
021129785C |
abutment F >> 3A-S-300 000* |
|
| 8 |
N 10258101 |
pipe clip F >> 3A-S-300 000* AL23-35 |
|
| 9 |
N 0147123 |
allen key head bolt also use: F >> 3A-S-300 000* M8X18 N 011 558 11 |
|
