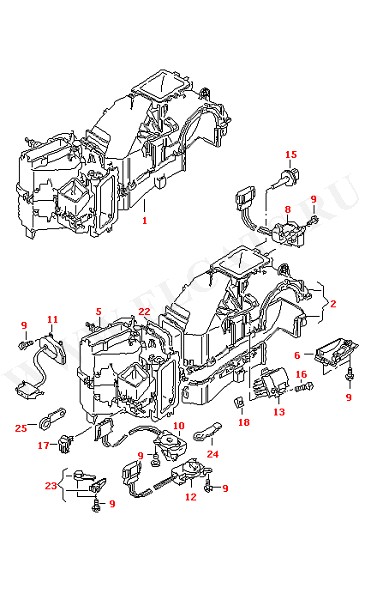

Оригинальный
номер |
Название |
Заказ |
| (1) |
1J1820007A |
housing with evaporator for vehicles with electroni- cally regulated air condit. lhd |
|
| (10) |
8D2820511D |
control motor for temperature regulating flap red rhd |
|
| (11) |
1J2907511B |
positioning motor for defroster flap rhd |
|
| (12) |
1J2907511D |
central flap positioning motor RLKG |
|
| (2) |
1J2820024A |
housing with evaporator RLKG |
|
| (23) |
1J2898001A |
1 set: levers for air distribution housing rhd |
|
| (5) |
1J2820353A |
connection box rhd |
|
| (6) |
1J0819322 |
bracket for resistance |
|
| (8) |
1J2907511A |
positioning motor for recirculated air operation rhd |
|
| 10 |
1J1907511C |
control motor for temperature regulating flap lhd |
|
| 11 |
8D2820511C |
positioning motor for defroster flap yellow lhd |
|
| 12 |
1J1907511D |
central flap positioning motor lhd |
|
| 13 |
1J0907521 |
blower control |
|
| 15 |
1J0907543 |
temperature sensor intake shaft |
|
| 16 |
N 01396626 |
oval head panel screw 4,2X13STC |
|
| 17 |
1H0907543A |
temperature sensor |
|
| 18 |
N 0154421 |
snap nut B4,2X12,8X11 |
|
| 22 |
191819370 |
gasket |
|
| 23 |
1J1898001A |
1 set: levers for air distribution housing lhd |
|
| 24 |
1J1898001A |
1 set: levers for air distribution housing lhd |
|
| 8 |
1J1907511A |
positioning motor for recirculated air operation lhd |
|
| 9 |
N 10424101 |
hexagon head panel screw 4X16H |
|
