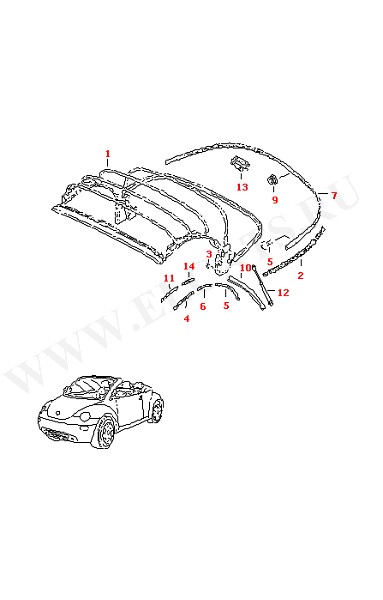

Оригинальный
номер |
Название |
Заказ |
| (1) |
1Y0871025 |
top frame |
|
| (1) |
1Y0871025D |
top frame F 1Y-5-300 001>> F >> 1Y-4-399 000 also use: 1Y0 871 153 1Y0 871 154 N 908 805 01 |
|
| (12) |
1Y0871358A |
gasket right front |
|
| (13) |
1Y0871361B |
gasket F 1Y-5-300 001>> center, left |
|
| (13) |
1Y0871362A |
gasket F >> 1Y-4-399 000 center, right |
|
| (13) |
1Y0871362B |
gasket F 1Y-5-300 001>> center, right |
|
| (14) |
1Y0871370 |
gasket sealant center, right |
|
| (20) |
1Y0871455B |
gasket F 1Y-3-021 318>>* left rear |
|
| (20) |
1Y0871456A |
gasket F >> 1Y-3-021 317* right rear |
|
| (20) |
1Y0871456B |
gasket F 1Y-3-021 318>>* right rear |
|
| (21) |
1Y0872997A |
gas-filled strut F 1Y-5-300 001>> |
|
| (21) |
1Y0872997 |
gas-filled strut F >> 1Y-4-399 000 |
|
| (22) |
1Y0871684 |
hinge right |
|
| (4) |
1Y0871135 |
limit stop left |
|
| (5) |
1Y0871154 |
packing top frame right |
|
| (7) |
1Y0871157 |
limit stop left |
|
| 1 |
1Y0871025B |
top frame F >> 1Y-4-399 000 |
|
| 10 |
1Y0871322A |
shackle rear |
|
| 12 |
1Y0871357A |
gasket left front |
|
| 13 |
1Y0871361A |
gasket F >> 1Y-4-399 000 center, left |
|
| 14 |
1Y0871369 |
gasket sealant center, left |
|
| 15 |
1Y0871412 |
plate |
|
| 16 |
1Y0871435 |
sealing tape |
|
| 17 |
N 10029203 |
torx socket fillister hd. bolt M6X15 |
|
| 18 |
N 0230025 |
hexagon nut, self-locking M6 |
|
| 19 |
1Y0871437 |
ballpin M6X33,2X10HG |
|
| 2 |
1Y0871129 |
friction bearing cylinder |
|
| 20 |
1Y0871455A |
gasket F >> 1Y-3-021 317* left rear |
|
| 21 |
1Y0871678A |
gas-filled strut |
|
| 22 |
1Y0871683 |
hinge left |
|
| 23 |
1Y0871729 |
cover cap M6 |
|
| 24 |
1Y0871996A |
pop-rivet 3,2X9,5 |
|
| 25 |
1Y0871996C |
pop-rivet 4,0X17,5 |
|
| 26 |
WHT000796 |
ballpin M6X27,7X10HG |
|
| 27 |
1Y0827947 |
clip support |
|
| 3 |
N 10460501 |
hexagonal head bolt M10X18 |
|
| 4 |
1Y0871136 |
limit stop right |
|
| 5 |
1Y0871153 |
packing top frame left |
|
| 6 |
N 90980501 |
countersunk bolt M5X14 |
|
| 7 |
1Y0871158 |
limit stop right |
|
| 8 |
WHT000903 |
shake-proof washer 4,3 |
|
| 9 |
WHT000904 |
round hd. screw M4X8 |
|
