Оригинальный номер |
Название |
Заказ |
|
1Y0827469 FCS |
chrome * cannot be used to restore * * the one key locking * * system !! * |
|
|
1Y0827469B FCS |
chrome * cannot be used to restore * * the one key locking * * system !! * |
|
|
1Y0827511 01C |
satin black |
|
|
1C0853630K WV9 |
brilliant chrome/dolomite grey |
|
|
1Y0827505 01C |
satin black |
|
|
1C0827511C 01C |
satin black |
|

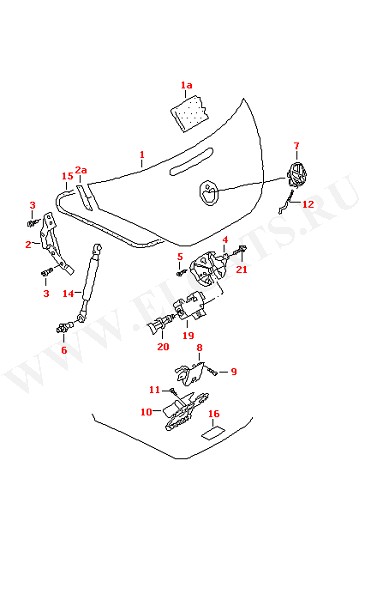

(1) |
1Y0827025K |
tailgate / boot lid F 1Y-4-332 560>>* |
|
(10) |
1Y0827511 |
closure plate F 1Y-4-306 761>> |
|
(14) |
1Y0827550B |
gas-filled strut F >> 1Y-4-331 259 |
|
(2) |
1Y0827302E |
bonnet hinge F 1Y-5-300 001>> right |
|
(2) |
1Y0827301E |
bonnet hinge F 1Y-5-300 001>> left |
|
(2) |
1Y0827301D |
bonnet hinge F 1Y-4-331 260>> 1Y-4-399 000 left |
|
(2) |
1Y0827302C |
bonnet hinge F >> 1Y-4-331 259 right |
|
(2) |
1Y0827302D |
bonnet hinge F 1Y-4-331 260>> 1Y-4-399 000 right |
|
(2A) |
1Y0827360B |
gasket F >> 1Y-4-399 000 right |
|
(4) |
1Y0827425B |
retainer for flap, rear F 1Y-4-332 560>>* |
|
(7) |
1C0853630K |
vw emblem rear |
|
(7) |
107827469PA |
lock cylinder with housing for models with radio remote control central locking system * key code number and/or * * chassis number must be * * quoted when ordering * F >> 1Y-4-332 559* vw em... |
|
(7) |
1Y0827469B |
lock cylinder with keys and housing with: vw emblem |
|
(7) |
107827469PB |
lock cylinder with housing for models with radio remote control central locking system * key code number and/or * * chassis number must be * * quoted when ordering * F >> 1Y-4-332 559* vw em... |
|
- |
1C0827525B |
stop buffer |
|
- |
N 01412811 |
fillister hd. bolt M5X8 |
|
1 |
1Y0827025H |
tailgate / boot lid F >> 1Y-4-332 559* |
|
10 |
1C0827511C |
closure plate F >> 1Y-4-306 760 |
|
11 |
N 90744803 |
countersunk multi-point socket head bolt M8X20ASP |
|
12 |
1Y0827515A |
operating rod |
|
14 |
1Y0827550D |
gas-filled strut F 1Y-4-331 260>> |
|
15 |
1Y0827703B |
gasket |
|
16 |
1C0837997C |
protective foil |
|
19 |
3B0959781C |
positioning motor use if required: N 014 123 3 N 012 097 3 |
|
1A |
D 378500A2 |
sound absorber, laminated alu. (self-adhesive) order unit 6 500X250X1,6 |
|
2 |
1Y0827301C |
bonnet hinge F >> 1Y-4-331 259 left |
|
20 |
6H0862246 |
connecting rod |
|
21 |
N 90172001 |
oval head panel screw 5X22 |
|
2A |
1Y0827359B |
gasket F >> 1Y-4-399 000 left |
|
3 |
N 90888501 |
bolt, with multi-spilne socket head M8X16 |
|
4 |
1C0827425 |
retainer F >> 1Y-4-332 559* |
|
5 |
N 01396819 |
oval head panel screw ST4,8X13-C |
|
6 |
895827439B |
ball pin |
|
7 |
1Y0827469 |
lock cylinder with keys and housing with: vw emblem |
|
8 |
1Y0827505 |
flap - lock |
|
9 |
N 90931601 |
bolt, with multi-spilne socket head M8X20-W |
|
