Оригинальный номер |
Название |
Заказ |

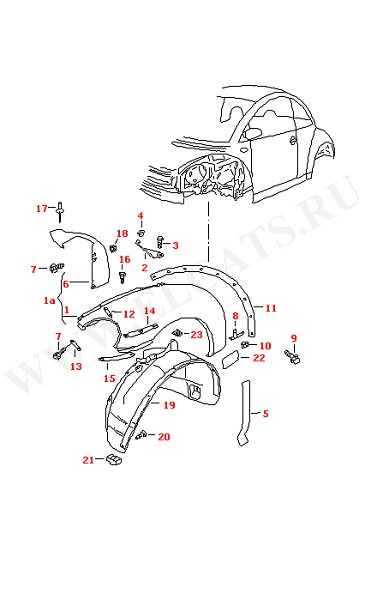

(1) |
1Y0821106 |
wing right front |
|
(11) |
1C0821702A |
protective foil wing right front |
|
(12) |
1C0821255M |
securing plate F 1Y-5-300 001>> |
|
(13) |
1C0821257AC |
securing plate F 1Y-5-300 001>> |
|
(14) |
1C0821255N |
securing plate F 1Y-5-300 001>> |
|
(15) |
1C0821257AE |
securing plate F 1Y-5-300 001>> |
|
(19) |
1C0809962E |
wheel housing-plastic material right front |
|
(1A) |
1Y0821103A |
wing with: kick-plate wing left front |
|
(1A) |
1Y0821104A |
wing with: kick-plate wing right front |
|
(1A) |
1Y0821104 |
wing right front |
|
(2) |
1C0821227E |
retainer F 1Y-5-300 001>> left |
|
(2) |
1C0821228B |
retainer right |
|
(22) |
1C0821712D |
stone protection foil right front |
|
(5) |
1Y0853387A |
protective foil F 1Y-4-306 761>> left front |
|
(5) |
1Y0853388A |
protective foil F 1Y-4-306 761>> right front |
|
(5) |
1Y0853388 |
protective foil F >> 1Y-4-306 760 right front |
|
(6) |
1C0821088B |
end plate F >> 1Y-4-399 999 right |
|
(6) |
1C0821087D |
end plate F 1Y-5-300 001>> left |
|
(6) |
1C0821088D |
end plate F 1Y-5-300 001>> right |
|
(8) |
1Y0810660A |
retainer wing front, lower right |
|
1 |
1Y0821105 |
wing left front |
|
10 |
N 10340001 |
hex. nut with washer M6 |
|
11 |
1C0821701A |
protective foil wing left front |
|
12 |
1C0821255C |
securing plate F >> 1Y-4-399 999 |
|
13 |
1C0821257D |
securing plate F >> 1Y-4-399 999 |
|
14 |
1C0821255G |
securing plate F >> 1Y-4-399 999 |
|
15 |
1C0821257N |
securing plate F >> 1Y-4-399 999 |
|
16 |
1C0821143G |
torx socket head bolt (combi) F >> 1Y-4-399 000 M6X20 |
|
16 |
WHT000036 |
fillister hd. bolt . F 1Y-5-300 001>> M6X20 |
|
17 |
N 90437401 |
pop-rivet A4,8X10 |
|
18 |
N 90132603 |
hex. nut with washer M6 |
|
19 |
1C0809961E |
wheel housing-plastic material left front |
|
1A |
1Y0821103 |
wing left front |
|
2 |
1C0821227B |
retainer F >> 1Y-4-399 999 left |
|
20 |
N 90775001 |
torx socket head panel screw 4,8X16 |
|
21 |
N 90821401 |
expanding nut D4,8 |
|
22 |
1C0821711D |
stone protection foil left front |
|
23 |
N 0154391 |
snap nut ST4,8X16,5X13 |
|
3 |
N 90598804 |
torx socket fillister hd. bolt M6X12-H |
|
4 |
N 90168602 |
snap nut M6X16X24 |
|
5 |
1Y0853387 |
protective foil F >> 1Y-4-306 760 left front |
|
6 |
1C0821087B |
end plate F >> 1Y-4-399 999 left |
|
7 |
1C0821144 |
torx socket head bolt (combi) M5X19 |
|
8 |
1Y0810659A |
retainer wing front, lower left |
|
9 |
N 90529301 |
hexagonal head bolt M6X10 |
|
b |
1Y0821104A GRU |
primed |
|
b |
1Y0821106 GRU |
primed |
|
b |
1Y0821104 GRU |
primed |
|
b |
1Y0821103A GRU |
primed |
|
b |
1Y0821105 GRU |
primed |
|
b |
1Y0821103 GRU |
primed |
|
