Оригинальный
номер |
Название |
Заказ |
|
311867169 01C |
satin black |
|
|
117877433 581 |
cloud white |
|
|
311867169 581 |
cloud white |
|
|
161877453 01C |
satin black |
|
|
313877465 01C |
satin black |
|
|
313877465 581 |
cloud white |
|
|
117877433 01C |
satin black |
|

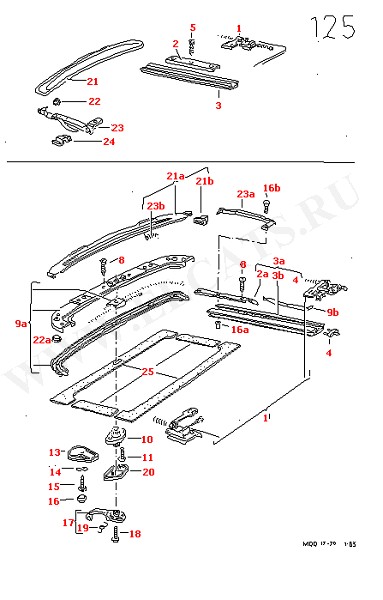

| (17) |
161877453 |
crank |
|
| (23A) |
443877682D |
hinged fastener F 179 3120 001>> F 16A 0000 001>> right |
|
| (3B) |
171877355B |
channel F 179 3120 001>> F 16A 0000 001>> left |
|
| 01 |
171898015 |
guide with cable steel sliding roof panel F 179 3120 001>> F 16A 0000 001>> rear |
|
| 10 |
411877403 |
sheathed cable drive gear |
|
| 11 |
N 0142122 |
countersunk bolt AM4X20 |
|
| 13 |
117877433 |
handle recess |
|
| 14 |
N 0122243 |
spring washer B4X9X0,5 |
|
| 15 |
311867167 |
oval head panel screw 4,2X13 |
|
| 16 |
311867169 |
cap for screw |
|
| 16A |
443877437A |
rivetted cap nut F 179 3120 001>> F 16A 0000 001>> M4 |
|
| 16B |
N 0142102 |
countersunk bolt AM4X15 |
|
| 18 |
N 0142571 |
oval head countersunk bolt AM4X8 |
|
| 19 |
313877459A |
spring |
|
| 20 |
313877465 |
collar |
|
| 21A |
171877651B |
wind deflector F 179 3120 001>> F 16A 0000 001>> |
|
| 21B |
861877659 |
guide piece F 179 3120 001>> F 16A 0000 001>> |
|
| 22A |
443877665A |
stop buffer F 179 3120 001>> F 16A 0000 001>> |
|
| 23A |
443877681D |
hinged fastener F 179 3120 001>> F 16A 0000 001>> left |
|
| 23B |
861877695 |
torsion spring F 179 3120 001>> F 16A 0000 001>> |
|
| 25 |
321898161 |
padding for sliding roof |
|
| 2A |
171877311B |
cover strip for guide channel F 179 3120 001>> F 16A 0000 001>> |
|
| 3A |
. |
discontinued / replacement: 171 877 355 B 171 877 356 B 171 898 015 |
|
| 3B |
171877356B |
channel F 179 3120 001>> F 16A 0000 001>> right |
|
| 4 |
411877359 |
retainer for channel |
|
| 5 |
N 0140892 |
oval hd. csk. self-tapp. screw ST3,9X9,5-F |
|
| 8 |
N 0140892 |
oval hd. csk. self-tapp. screw ST3,9X9,5-F |
|
| 9 |
241877373 |
spring plate |
|
| 9A |
321877381B |
pull cable guide |
|
| 9B |
861877397 |
leaf spring |
|
