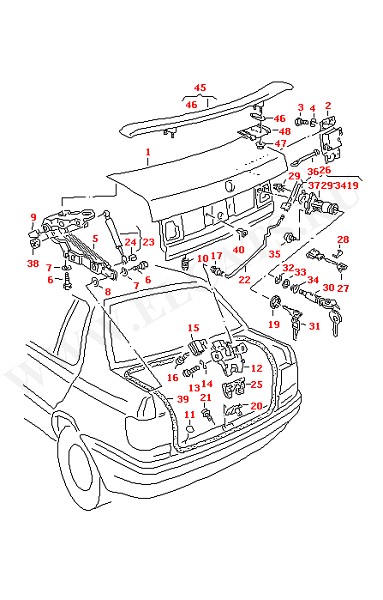

Оригинальный
номер |
Название |
Заказ |
|
1H5827571H B41 |
satin black |
|
| (24) |
443823397 |
clips upper |
|
| (26) |
1H5827571H |
button with lock cylinder |
|
| (30) |
1H5827573B |
lock cylinder for flap, rear SYSTEM A PROFIL AH system a profile ah 7101-8154 satin black |
|
| (40) |
N 90626102 |
rivetted cap nut F 1H-T-370 001>>* BM5/0,75-1 |
|
| (5) |
1H5827302C |
bonnet hinge right |
|
| - |
AMV195KD101 |
adhesive 3G |
|
| - |
N 0139729 |
oval head panel screw F >> 1H-T-370 000* ST4,8X25-C |
|
| - |
D 185400A2 |
liquid sealant 10ML |
|
| - |
AKL44830004 |
protective foil 290X210MM |
|
| - |
1H5827499 |
stop buffer |
|
| - |
N 0141551 |
fillister hd. bolt F 1H-T-370 001>>* also use: AM5X22 D 185 400 A2 |
|
| - |
803955637 |
sealing washer |
|
| - |
8A0831449 |
plug 14 |
|
| - |
1H0971908E |
plug for models without central locking 30X20X16 |
|
| - |
533863288A |
felt strip adapt with workshop equipment 880X20X3MM |
|
| - |
G 052778A2 |
lock cylinder lubricant spray 50ML |
|
| 1 |
1H5827025K |
tailgate / boot lid also use: *>>1H-T-370000 N 906 261 02 N 014 155 1 |
|
| 10 |
1H0823500B |
stop buffer, adjustable |
|
| 12 |
3A5827503 |
flap - lock rear |
|
| 13 |
N 90533002 |
hexagon head bolt (combi) M6X20 |
|
| 14 |
N 0122265 |
spring washer B6X12X0,5 |
|
| 15 |
357947561 |
switch luggage compartment light |
|
| 16 |
N 0139566 |
oval head panel screw B3,5X6,5-C |
|
| 17 |
191837199 |
clip |
|
| 19 |
1H5827527A |
seal |
|
| 20 |
1H5827511 |
closure plate |
|
| 21 |
N 90472301 |
fillister head bolt (combi.) M6X9-Z2 |
|
| 22 |
1H5827515 |
pull rod |
|
| 23 |
1H5827550B |
gas-filled strut |
|
| 24 |
1H5827905 |
securing clip lower |
|
| 25 |
357827563 |
cap for flap lock black |
|
| 27 |
1H0953229 |
micro switch |
|
| 28 |
1H0827649 |
clips |
|
| 29 |
171837199 |
clip |
|
| 30 |
1H5827573C |
lock cylinder for flap, rear system b profile ah 8201-9282 satin black |
|
| 32 |
N 0124352 |
lock washer 5 |
|
| 33 |
N 90098901 |
seal 18,5X2N |
|
| 34 |
111837227B |
seal |
|
| 35 |
N 90529601 |
fillister head bolt (combi.) M5X15SP |
|
| 37 |
1H5827637 |
clip |
|
| 38 |
1H5827681B |
limit stop |
|
| 39 |
1H0827705A |
gasket shorten to: use if required: 3970MM 3170MM AMV 195 KD1 01 |
|
| 40 |
357827998A |
insert nut F >> 1H-T-370 000* |
|
| 5 |
1H5827301C |
bonnet hinge left |
|
| 6 |
N 0102935 |
hexagonal head bolt M8X16 |
|
| 7 |
N 90064101 |
tensioning washer 8,2X22,25X1,4 |
|
| 8 |
861827365 |
gasket |
|
| 9 |
1H5827489 |
stop buffer |
|
