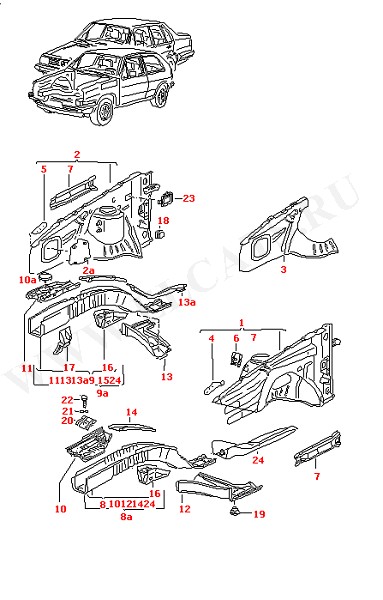

Оригинальный
номер |
Название |
Заказ |
| (11) |
176803120A |
filler plate for longitudinal member right |
|
| (12) |
191803097F |
connecting plate for longitudinal member also use: left 321 803 615 |
|
| (13) |
191803098F |
connecting plate for longitudinal member also use: right 321 803 615 |
|
| (16) |
191803128 |
retainer right |
|
| (17) |
191805612F |
bracket for tow rope |
|
| (17) |
191805612E |
bracket for tow rope |
|
| (24) |
191803210 |
side member for floor plate right |
|
| (3) |
191809111 |
sub-part - wheel housing,upper use if required: left front 191 809 143 |
|
| (8) |
535803057A |
side member with reinforcement and welded nut left front |
|
| (8) |
191803103H |
side member with reinforcement and welded nut left front |
|
| (9) |
191803104H |
side member with reinforcement and welded nut right front |
|
| (9) |
535803058 |
side member with reinforcement and welded nut right front |
|
| - |
321803615 |
mounting |
|
| - |
191819418A |
water drain valve |
|
| - |
191803331 |
bracket - fender see illustration: left 153 POS.16 |
|
| - |
191803332 |
bracket - fender activated charcoal canister see illustration: right 153 POS.16 |
|
| - |
171805445 |
press insert nut 6,5 |
|
| 1 |
191809101H |
wheel housing left front |
|
| 10 |
191803119A |
bracket - battery |
|
| 10A |
N 90146604 |
cover plate 40 grey |
|
| 11 |
191803096 |
filler plate for longitudinal member |
|
| 11 |
176803120A |
filler plate for longitudinal member right |
|
| 13A |
191804140 |
guide plate for fuel line |
|
| 14 |
191803107 |
cover plate for longit. member left front |
|
| 15 |
191803108 |
cover plate for longit. member right front |
|
| 16 |
191803127C |
retainer left |
|
| 18 |
N 0200041 |
plug A16,5 |
|
| 19 |
803803583A |
plug 19 |
|
| 2 |
191809102H |
wheel housing right front |
|
| 20 |
6X0959502 |
clamping strip for battery |
|
| 21 |
N 01224110 |
spring washer B8X15X0,8 |
|
| 22 |
N 01024016 |
hexagonal head bolt M8X20 |
|
| 23 |
N 90229501 |
locking cover 38X45 |
|
| 24 |
191803209 |
side member for floor plate left |
|
| 2A |
191129630E |
covering |
|
| 3 |
191809112 |
sub-part - wheel housing,upper use if required: right front 191 809 144 |
|
| 4 |
191809143 |
mounting plate left |
|
| 5 |
191809144 |
mounting plate right |
|
| 6 |
255955773 |
bracket for fluid container |
|
| 7 |
191809147 |
longitudinal member upper |
|
