Оригинальный
номер |
Название |
Заказ |
|
357881671 4FB |
schwarz |
|
|
191881347 01C |
satin black |
|
|
191881299 01C |
satin black |
|
|
171881213B 2VK |
platinum |
|
|
1H0881479B 01C |
satin black |
|
|
191881348 01C |
satin black |
|
|
1H0881480B 01C |
satin black |
|
|
171881449A 01C |
satin black |
|
|
1H0881680 B41 |
satin black |
|
|
1H0881317A 01C |
schwarz |
|
|
191881213 909 |
natural colours |
|
|
1H0881318A 01C |
schwarz |
|
|
1H0881253 01C |
satin black |
|
|
1H0881254 01C |
satin black |
|
|
1H0881478A 01C |
satin black |
|
|
1H0881477A 01C |
satin black |
|
|
171881500 01C |
satin black |
|
| (1) |

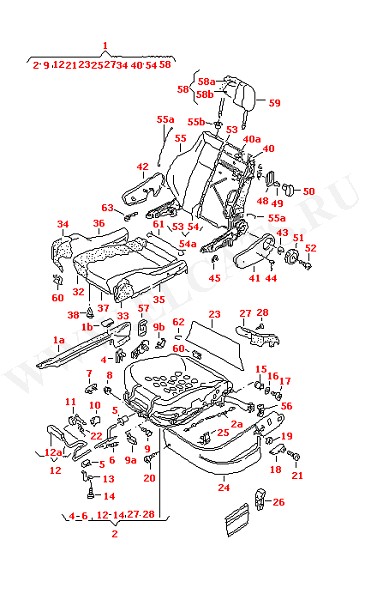

1H0881024A |
seat complete with backrest and headrest (without cover) with mechanical operation F 1H-P-766 801>> right |
|
| (1) |
1H0881024 |
seat complete with backrest and headrest (without cover) with mechanical operation F >> 1H-P-766 800 right |
|
| (1) |
1H0881023A |
seat complete with backrest and headrest (without cover) with mechanical operation F 1H-P-766 801>> left |
|
| (12) |
1H0881232 |
lever f. seat fore+afr adjust. right |
|
| (18) |
1H0881254 |
handle - seat height adjustm. right |
|
| (2) |
1H0881106S |
seat frame F 1H-P-766 801>> right |
|
| (2) |
1HM881106B |
seat frame F >> 1H-P-766 800 right |
|
| (2) |
1H0881105S |
seat frame F 1H-P-766 801>> left |
|
| (23) |
1H0881316 |
trim panel for seat frame right outer |
|
| (24) |
1H0881318A |
trim panel for seat frame for seat frame with height adjustment right outer |
|
| (26) |
191881348 |
cap for guide channel |
|
| (40) |
1H3881046D |
backrest frame right |
|
| (41) |
1H0881478A |
trim with hole right outer |
|
| (42) |
1H0881479B |
trim without hole right inner |
|
| (56) |
191881213 |
glide piece inner |
|
| (6) |
321881178 |
tension spring |
|
| - |
191881962 |
sleeve |
|
| - |
191881939 |
guide for head restraint, adjustable |
|
| - |
1H0881287 |
detent spring |
|
| - |
8A0881451 |
slide for zip fastener 6,4 |
|
| 1 |
1H0881023 |
seat complete with backrest and headrest (without cover) with mechanical operation F >> 1H-P-766 800 left |
|
| 10 |
435881203A |
glide piece front |
|
| 11 |
171881229B |
clinch bolt |
|
| 12 |
1H0881231 |
lever f. seat fore+afr adjust. left |
|
| 13 |
321881240 |
pipe clip |
|
| 14 |
N 0139587 |
oval head panel screw ST3,5X13-C |
|
| 15 |
191881299 |
bearing |
|
| 16 |
N 01166615 |
washer 6,4X18X1,6 |
|
| 17 |
N 0141405 |
fillister hd. bolt M6X15 |
|
| 18 |
1H0881253 |
handle - seat height adjustm. left |
|
| 19 |
1H0881680 |
cover cap |
|
| 2 |
1HM881105B |
seat frame F >> 1H-P-766 800 left |
|
| 20 |
N 0139729 |
oval head panel screw ST4,8X25-C |
|
| 21 |
N 0141324 |
fillister hd. bolt M5X18SB |
|
| 22 |
113881275C |
tension spring |
|
| 23 |
1H0881315 |
trim panel for seat frame left outer |
|
| 24 |
1H0881317A |
trim panel for seat frame for seat frame with height adjustment left outer |
|
| 25 |
1H0881247 |
clips |
|
| 26 |
191881347 |
cap for guide channel |
|
| 32 |
1H0881375C |
padding for seat center |
|
| 33 |
1H0881377 |
padding for seat left |
|
| 34 |
1H0881378 |
padding for seat right |
|
| 38 |
171881449A |
clip |
|
| 4 |
357881195 |
stop buffer |
|
| 40 |
1H3881045D |
backrest frame left |
|
| 41 |
1H0881477A |
trim with hole left outer |
|
| 42 |
1H0881480B |
trim without hole left inner |
|
| 43 |
191881493 |
spacer ring |
|
| 44 |
171881500 |
grip pin |
|
| 45 |
N 90052702 |
lock washer 8 |
|
| 48 |
191881607A |
trim |
|
| 49 |
311881247 |
clip |
|
| 5 |
893881167 |
bearing bush |
|
| 50 |
191881633B |
knob |
|
| 51 |
357881671 |
adjustment knob |
|
| 52 |
N 0141201 |
fillister hd. bolt M4X12 |
|
| 53 |
191881775E |
padding for backrest |
|
| 54 |
191881777A |
padding center |
|
| 56 |
171881213B |
glide piece |
|
| 58 |
191881903D |
head restraint, adjustable with padding |
|
| 6 |
321881177 |
tension spring |
|
| 60 |
867885447 |
clips |
|
| 61 |
N 90162606 |
upholstery wire 2,8X368 |
|
| 62 |
N 0152611 |
clips 20X1,8 |
|
| 7 |
161881200 |
stop plate for models with passive restraint system |
|
| 8 |
N 0111214 |
domed cap nut M6 |
|
| 9 |
N 0147506 |
allen key head bolt M6X10 |
|
