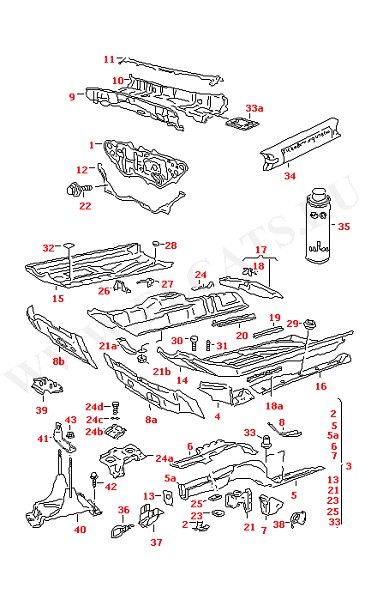

Оригинальный
номер |
Название |
Заказ |
| (1) |
1H1863911D |
cross panel for vehicles with air condit. lhd |
|
| (1) |
1H2863911B |
cross panel rhd |
|
| (1) |
1H2863911C |
cross panel for vehicles with air condit. rhd |
|
| (13) |
1H0804182A |
filler plate for longitudinal member (left-hand thread) also use: right front >>1H-N-200000 1H0 805 615 B |
|
| (16) |
1H0803226 |
cover panel right |
|
| (17) |
1H0803232B |
seat support for models with side airbag right |
|
| (17) |
1H0803231B |
seat support F 1H-R-000 001>> left |
|
| (17) |
1H0803232 |
seat support F >> 1H-P-990 000 right |
|
| (18) |
443803242 |
bracket for seat left |
|
| (18A) |
1H0804244 |
reinforcement for side member right |
|
| (21A) |
1H0804421A |
reinforcement for tunnel F 1H-R-000 001>> center lower 284MM |
|
| (29) |
N 90220501 |
plug 50,4X1,2 |
|
| (29) |
N 10138801 |
locking cover 30 |
|
| (29) |
811803583 |
plug 39,6 |
|
| (29) |
N 90146604 |
cover plate 40 |
|
| (3) |
1H0803092D |
side member with reinforcement and welded nut right front |
|
| (30) |
N 0105682 |
welded bolt order unit 100 AM8X22 |
|
| (31) |
N 90231601 |
weld pin order unit 100 FD-5X25 |
|
| (33) |
N 90188302 |
welded nut M10 |
|
| (36) |
1H0805615 |
towing eye F >> 1H-N-200 000* |
|
| (4) |
1H0803098 |
connecting plate for longitudinal member right |
|
| (5A) |
1H0802107 |
sub-part - side member left front 385MM |
|
| (6) |
1HM803086 |
cover plate for longit. member right rear |
|
| (6) |
1H0803108B |
cover plate for longit. member right front |
|
| (6) |
1HM803085 |
cover plate for longit. member left rear |
|
| (7) |
191803128 |
retainer right |
|
| - |
N 0105682 |
welded bolt order unit 100 AM8X22 |
|
| - |
N 90149502 |
t-bolt 5X10 |
|
| - |
1H0804317 |
pipe clip guide arm for models with front seat belts left 2 doors |
|
| - |
1H0253701A |
shield front |
|
| - |
1H0804318 |
pipe clip guide arm for models with front seat belts right 2 doors |
|
| - |
1H0971840C |
grommet |
|
| - |
N 10138801 |
locking cover 30 |
|
| - |
1H0971840 |
grommet 46/10,5 |
|
| - |
N 0200223 |
plug A8X1 |
|
| - |
N 10226601 |
plug E40 |
|
| - |
N 01021527 |
hexagonal head bolt M6X15 |
|
| - |
N 10226501 |
plug A30 |
|
| - |
N 01021710 |
hexagonal head bolt M6X20 |
|
| - |
1H2971908 |
plug rhd |
|
| - |
1H0972373B |
wiring conduit see illustration: 971-14 |
|
| - |
1H2819430A |
cover |
|
| 1 |
1H1863911C |
cross panel also use: lhd 1H9 971 840 C |
|
| 10 |
1H0803155 |
water box |
|
| 11 |
1H0803159 |
reinforcement for cross panel upper |
|
| 12 |
1H0803187 |
frame for cross panel |
|
| 13 |
1H0804181 |
filler plate for longitudinal member left front |
|
| 14 |
1H0803205A |
sub-part - floor plate left front |
|
| 15 |
1H0803206A |
sub-part - floor plate right front |
|
| 16 |
1H0803225 |
cover panel left |
|
| 17 |
1H0803231 |
seat support F >> 1H-P-990 000 left |
|
| 18 |
443803241 |
bracket for seat right |
|
| 18A |
1H0804243 |
reinforcement for side member left |
|
| 19 |
443803253 |
channel outer |
|
| 2 |
1H0804055B |
retainer for engine carrier |
|
| 20 |
1H0803258A |
channel right inner |
|
| 20 |
1H0803257A |
channel left inner |
|
| 21 |
1H0803332 |
console for bumper |
|
| 21A |
1H0253701A |
shield F >> 1H-P-990 000 front 311MM |
|
| 21B |
N 90074401 |
hexagon nut, self-locking M8 |
|
| 22 |
443845643C |
hexagonal head bolt M8X28 |
|
| 23 |
1H0804699B |
threaded plate M10 |
|
| 24A |
1H0804841H |
bracket - battery |
|
| 24B |
6X0959502 |
clamping strip for battery |
|
| 24C |
N 01224110 |
spring washer B8X15X0,8 |
|
| 24D |
N 01024016 |
hexagonal head bolt M8X20 |
|
| 25 |
1H0804849 |
threaded plate M6 |
|
| 26 |
191803875B |
securing plate front |
|
| 27 |
6N0803876 |
securing plate front |
|
| 28 |
N 10034401 |
plug 30X5,6X37 |
|
| 29 |
803803583B |
plug 40 |
|
| 3 |
1H0803091B |
side member with reinforcement and welded nut left front |
|
| 30 |
N 90169301 |
welded bolt order unit 100 M6X12 |
|
| 31 |
N 90175701 |
weld pin order unit 100 5X12 |
|
| 32 |
N 90147001 |
locking cover 87,5X0,5 |
|
| 33 |
N 90433301 |
welded nut M12X1,5 |
|
| 33A |
1H2819430A |
cover |
|
| 34 |
DH 009100 |
1k-window adhesive 300ML |
|
| 35 |
D 003500 |
long-life underseal 1.0 ltr. |
|
| 36 |
1H0805615B |
towing eye (left-hand thread) F 1H-N-200 001>>* |
|
| 4 |
1H0803097 |
connecting plate for longitudinal member left |
|
| 5A |
1H0802108 |
sub-part - side member right front 385MM |
|
| 6 |
1H0804105B |
cover plate for longit. member left front |
|
| 7 |
191803127C |
retainer left |
|
| 8 |
1H0804140A |
guide plate for fuel line |
|
| 8A |
1H0803143 |
cross member left |
|
| 8B |
1H0803144 |
cross member right |
|
| 9 |
1H0803157A |
rip plate on front cross panel * dealership obligation: * * obligatory section of docu-* * mentation. when selling, a * * copy of the vehicle * * registration documents and * * personal iden... |
|
