Оригинальный номер |
Название |
Заказ |
|
191881901AF3WC |
mauritius blue -20 |
|
|
191881318 01C |
satin black |
|
|
191881347 01C |
satin black |
|
|
191881348 01C |
satin black |
|
|
191881370A WE9 |
grey/red -UA |
|
|
191881370F AEY |
mauritius blue -20 |
|
|
191881477 LX6 |
satin black |
|
|
171881500 01C |
satin black |
|
|
191881478 LX6 |
satin black |
|
|
191881479 LX6 |
satin black |
|
|
191881480 LX6 |
satin black |
|
|
191881671 01C |
satin black |
|
|
191881770B WE9 |
grey/red -UA |
|
|
191881770F AEY |
mauritius blue -20 |
|
|
171881213B 2VK |
platinum |
|
|
191881213 909 |
natural colours |
|
|
191881317 01C |
satin black |
|
|
191881299 01C |
satin black |
|
|
535881901G WE9 |
grey/red -UY,UA |
|
|
191881021SPAEY |
mauritius blue -20 |
|

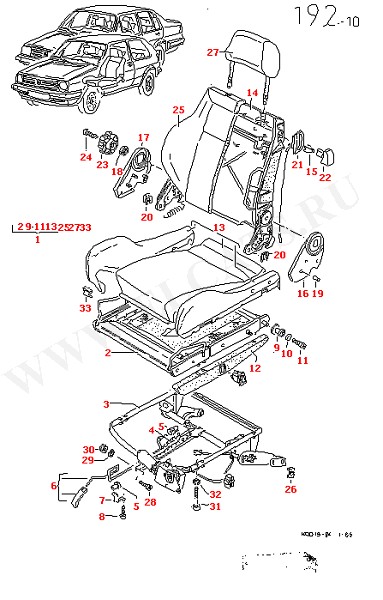

(12) |
191881318 |
trim panel for seat frame right outer |
|
(13) |
191881370F |
seat cover (cloth) RECARO |
|
(14) |
191881049D |
backrest frame F 1G-KW480 001>>* F 1G-KB150 001>>* |
|
(16) |
191881478 |
trim without hole right |
|
(17) |
191881480 |
trim with hole right |
|
(25) |
191881770F |
backrest cover (cloth) with embroidered inscription |
|
(26) |
191881213 |
glide piece inner |
|
(27) |
191881901AF |
head restraint with cover, adjustable |
|
(3) |
191881106S |
seat frame right |
|
(3) |
191881105S |
seat frame left |
|
(4) |
321881178 |
tension spring |
|
(6) |
443881232 |
lever f. seat fore+afr adjust. right |
|
- |
191881348 |
cap for guide channel |
|
- |
191881347 |
cap for guide channel |
|
- |
191881021SP |
seat complete with backrest and headrest RECARO |
|
10 |
N 01166615 |
washer 6,4X18X1,6 |
|
11 |
N 0141405 |
fillister hd. bolt M6X15 |
|
12 |
191881317 |
trim panel for seat frame left outer |
|
13 |
191881370A |
seat cover (cloth) RECARO |
|
14 |
191881049B |
backrest frame F >> 1G-KW480 000* F >> 1G-KB150 000* |
|
15 |
311881247 |
clip |
|
16 |
191881477 |
trim without hole left |
|
17 |
191881479 |
trim with hole left |
|
18 |
191881493 |
spacer ring |
|
19 |
171881500 |
grip pin |
|
2 |
191881135 |
seat well |
|
20 |
N 90052702 |
lock washer 8 |
|
20A |
191881595A |
wire cable 492MM |
|
21 |
191881607A |
trim |
|
22 |
191881633B |
knob |
|
23 |
191881671 |
adjustment knob |
|
24 |
N 0141201 |
fillister hd. bolt M4X12 |
|
25 |
191881770B |
backrest cover (cloth) with embroidered inscription |
|
26 |
171881213B |
glide piece |
|
27 |
535881901G |
head restraint with cover, adjustable |
|
28 |
N 0147506 |
allen key head bolt M6X10 |
|
29 |
N 0120064 |
spring ring B6 |
|
30 |
N 0111214 |
domed cap nut M6 |
|
31 |
N 0147513 |
allen key head bolt M8X50 |
|
32 |
N 0120387 |
spring ring 8 |
|
33 |
481881447A |
clips |
|
4 |
321881177 |
tension spring |
|
5 |
893881167 |
bearing bush |
|
6 |
443881231 |
lever f. seat fore+afr adjust. left |
|
7 |
321881240 |
pipe clip |
|
8 |
N 0139587 |
oval head panel screw ST3,5X13-C |
|
9 |
191881299 |
bearing |
|
