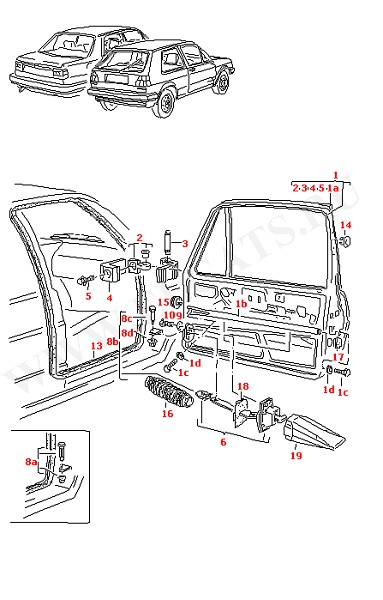

Оригинальный
номер |
Название |
Заказ |
| (1) |
165831051C |
door also use: left 2 doors N 902 521 01 191 880 749 191 837 86 |
|
| (1) |
167831051C |
door also use: left 4-tuerig N 902 521 01 191 880 749 191 837 8 |
|
| (1) |
165831052C |
door also use: right 2 doors N 902 521 01 191 880 749 191 837 8 |
|
| (1) |
167831052C |
door also use: right 4-tuerig N 902 521 01 191 880 749 191 837 |
|
| (1A) |
193831106A |
door outer panel right 4-tuerig |
|
| (1A) |
193831105A |
door outer panel left 4-tuerig |
|
| (1A) |
191831105A |
door outer panel left 2 doors |
|
| - |
N 0200321 |
plug A6X0,8 |
|
| - |
N 0200241 |
plug A10X1 |
|
| - |
N 01396626 |
oval head panel screw 4,2X13STC |
|
| - |
321831121 |
reinforcement door handle, outer |
|
| 10 |
N 01021612 |
hexagonal head bolt M6X18 |
|
| 13 |
191867365C |
door seal shorten to: 3740MM 2 doors 4-tuerig 3300MM |
|
| 14 |
191880749 |
plug |
|
| 16 |
191971916A |
bellows 33,5/30,5/33,5 |
|
| 17 |
191837865 |
cover cap |
|
| 18 |
867837267 |
covering |
|
| 19 |
191837323A |
boot |
|
| 1A |
191831106A |
door outer panel right 2 doors |
|
| 2 |
321831403 |
hinge half |
|
| 3 |
321831421 |
pin - hinge |
|
| 4 |
191809653 |
mounting plate for door hinge |
|
| 5 |
N 90307901 |
hexagonal head bolt M10X15 |
|
| 6 |
1H4839249 |
check rod - door |
|
| 8C |
1H0837257 |
pin |
|
| 8D |
191837270 |
hexagon nut, shouldered M5 |
|
| 9 |
111837941 |
concave spring washer 6,4X12,5 |
|
