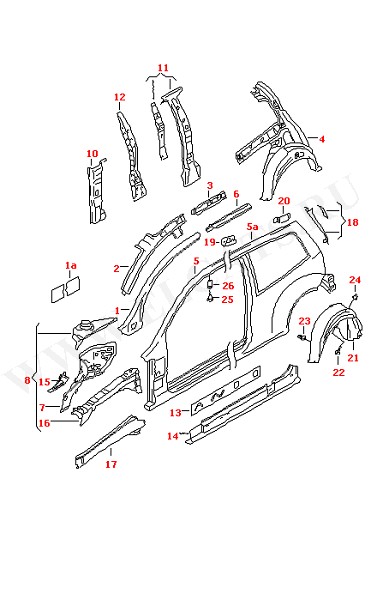

Оригинальный
номер |
Название |
Заказ |
| (1) |
6Q0809430A |
side panel, inner right upper |
|
| (10) |
6Q0809206D |
a-pillar right lower |
|
| (11) |
6Q3809608A |
reinforcement for pillar b F >> 9N-3Y073 808* right |
|
| (11) |
6Q3809608B |
reinforcement for pillar b F 9N-3Y073 809>>* right |
|
| (13) |
6Q3810600 |
rip plate for side member right |
|
| (14) |
6Q3810608A |
reinforcement for side member right 2 doors |
|
| (15) |
6Q0810680A |
bracket - fender right |
|
| (16) |
6Q0810126H |
side member for wheel housing right upper |
|
| (17) |
6Q0809148J |
side member for wheel housing F 9N-3-300 000>>* right outer |
|
| (17) |
6Q0809148H |
side member for wheel housing F >> 9N-3-299 999* right outer |
|
| (18) |
6Q6809642A |
water drain channel right |
|
| (19) |
6Q0817250 |
roof frame reinforcement right front |
|
| (1A) |
000800981B |
sheet metal plate 500X1500X0,8 |
|
| (1A) |
000800981C |
sheet metal plate 800X1500X0,8 |
|
| (1A) |
000800981A |
sheet metal plate 300X1500X0,8 |
|
| (2) |
6Q0809438 |
side panel, inner right front |
|
| (20) |
6Q3817270A |
roof frame reinforcement right rear 2 doors |
|
| (21) |
6Q0810972A |
wheel housingliner right rear |
|
| (25) |
6Q0860137A |
sealing plug |
|
| (3) |
6Q3809432B |
side panel, inner right upper |
|
| (4) |
6Q3809404 |
side panel, inner right rear |
|
| (5) |
6Q3809836 |
sub-part: a-pillar with side member also use: also use: right N 908 492 01 6Q0 860 137 A |
|
| (5A) |
6Q3809844 |
sub-part - side panel right |
|
| (6) |
6Q3809550 |
roof frame reinforcement center upper right |
|
| (7) |
6Q0809106F |
wheel housing right front lower |
|
| (8) |
6Q0809102H |
wheel housing F >> 9N-2-200 000* right front |
|
| (8) |
6Q0809102J |
wheel housing F 9N-2-200 001>>*9N-3-299 999* right front |
|
| (8) |
6Q0809102L |
wheel housing F 9N-3-300 000>>* right front |
|
| - |
N 90453703 |
rivetted cap nut M6X18,2/0,5-3 SECHSKANT |
|
| - |
6Q0810222 |
end plate right front |
|
| - |
6Q0810221 |
end plate left front |
|
| - |
6Q3809605B |
side panel left outer 2 doors |
|
| - |
6Q3809606B |
side panel right outer 2 doors |
|
| 1 |
6Q0809429A |
side panel, inner left upper |
|
| 10 |
6Q0809205D |
a-pillar left lower |
|
| 11 |
6Q3809607A |
reinforcement for pillar b F >> 9N-3Y073 808* left |
|
| 11 |
6Q3809607B |
reinforcement for pillar b F 9N-3Y073 809>>* left |
|
| 13 |
6Q3810599 |
rip plate for side member left |
|
| 14 |
6Q3810607A |
reinforcement for side member left 2 doors |
|
| 15 |
6Q0810679B |
bracket - fender left |
|
| 16 |
6Q0810125E |
side member for wheel housing F >> 9N-3-299 999* left upper |
|
| 16 |
6Q0810125F |
side member for wheel housing F 9N-3-300 000>>* left upper |
|
| 17 |
6Q0809147H |
side member for wheel housing F >> 9N-3-299 999* left outer |
|
| 17 |
6Q0809147J |
side member for wheel housing F 9N-3-300 000>>* left outer |
|
| 18 |
6Q6809641A |
water drain channel left |
|
| 19 |
6Q0817249 |
roof frame reinforcement left front |
|
| 1A |
000800981 |
sheet metal plate 200X1500X0,8 |
|
| 2 |
6Q0809437 |
side panel, inner left front |
|
| 20 |
6Q3817269A |
roof frame reinforcement left rear 2 doors |
|
| 21 |
6Q0810971A |
wheel housingliner left rear |
|
| 22 |
N 90775001 |
torx socket head panel screw 4,8X16 |
|
| 23 |
N 90833801 |
expanding nut 4,8 |
|
| 24 |
N 90821401 |
expanding nut D4,8 |
|
| 26 |
N 90849201 |
rivetted cap nut M6/1-4-F |
|
| 3 |
6Q3809431B |
side panel, inner F 9N-3-000 001>>* left upper |
|
| 3 |
6Q3809431A |
side panel, inner F >> 9N-2-150 000* left upper |
|
| 4 |
6Q3809403 |
side panel, inner left rear |
|
| 5 |
6Q3809835 |
sub-part: a-pillar with side member also use: also use: left N 908 492 01 6Q0 860 137 A |
|
| 5A |
6Q3809843 |
sub-part - side panel left |
|
| 6 |
6Q3809549 |
roof frame reinforcement center upper left |
|
| 7 |
6Q0809105F |
wheel housing left front lower |
|
| 8 |
6Q0809101K |
wheel housing F >> 9N-2-200 000* left front |
|
| 8 |
6Q0809101M |
wheel housing F 9N-3-300 000>>* left front |
|
| 8 |
6Q0809101L |
wheel housing F 9N-2-200 001>>*9N-3-299 999* left front |
|
