Оригинальный
номер |
Название |
Заказ |

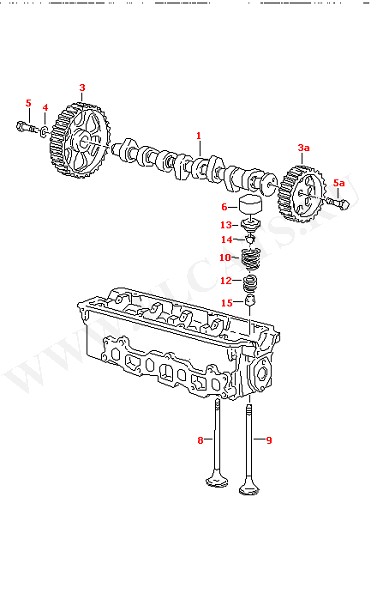

| (1) |
030109101AD |
camshaft |
|
| (1) |
030109101C |
camshaft |
|
| (1) |
030109101E |
camshaft |
|
| (1) |
030109101B |
camshaft |
|
| (1) |
030109101AF |
camshaft |
|
| (1) |
031109101E |
camshaft also use: >>80-M-500000 031 109 112 A |
|
| (10) |
031109623 |
spring - valve outer |
|
| (12) |
031109633 |
spring - valve inner |
|
| (13) |
021109641C |
spring disc F 80-PW000 001>> |
|
| (14) |
021109651 |
cotter, split F 80-PW000 001>> |
|
| (15) |
027109675 |
seal - valve stem F 80-PW000 001>> 7MM |
|
| (3) |
031109111C |
toothed belt pulley front |
|
| (3A) |
031109112A |
toothed belt pulley F 80-N-000 001>> rear |
|
| (4) |
027109143 |
washer |
|
| (5) |
N 90502102 |
hexagon head bolt (combi) M12X1,5X35SW18 front |
|
| (8) |
030109601B |
intake valve 100,4 |
|
| (8) |
030109601N |
intake valve F 80-PW000 001>> 99,3 |
|
| (8) |
030109601E |
intake valve F >> 80-NW500 000 99,2 |
|
| (8) |
030109601L |
intake valve F 80-PW000 001>> 99,3 LANG |
|
| (8) |
030109601D |
intake valve F >> 80-NW500 000 99,3 |
|
| (8) |
030109601G |
intake valve F 80-PW000 001>> 99,1 |
|
| (9) |
030109611B |
exhaust valve 99,2 |
|
| (9) |
030109611D |
exhaust valve F 80-PW000 001>> 99,1 |
|
| 1 |
030109101D |
camshaft |
|
| 10 |
030109623B |
spring - valve outer |
|
| 12 |
030109633B |
spring - valve inner |
|
| 13 |
049109641A |
spring disc F >> 80-NW500 000 upper |
|
| 14 |
113109651A |
cotter, split F >> 80-NW500 000 |
|
| 15 |
026109675 |
seal - valve stem F >> 80-NW500 000 8MM |
|
| 3 |
030109111B |
toothed belt pulley |
|
| 3A |
031109112 |
toothed belt pulley F >> 80-M-500 000 rear |
|
| 5 |
N 90256201 |
hexagonal head bolt M10X1,25X30 |
|
| 5A |
N 0101371 |
hexagonal head bolt M12X1,5X35 rear |
|
| 6 |
034109309AD |
cam follower |
|
| 8 |
030109601 |
intake valve F >> 80-NW500 000 99,1 |
|
| 9 |
030109611A |
exhaust valve F >> 80-NW500 000 99,1 |
|
