Оригинальный номер |
Название |
Заказ |

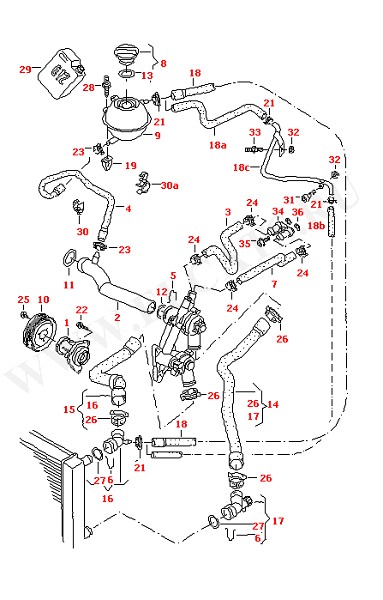

(1) |
03D121005 |
water pump with adhesive gasket |
|
(1) |
03D121005 X |
water pump with adhesive gasket |
|
(14) |
6Y0121086H |
water hose with quick- coupling piece (thermostat > radiator) F 9N-4-350 001>>* return |
|
(14) |
6Y0121086E |
water hose with quick- coupling piece (thermostat > radiator) F >> 9N-4-350 000* return |
|
(15) |
6Y0121049G |
water hose with quick- coupling piece (coolant thermostat housing > radiator) F >> 9N-4-350 000* feed |
|
(15) |
6Y0121049H |
water hose with quick- coupling piece (coolant thermostat housing > radiator) F 9N-4-350 001>>* feed |
|
(16) |
1J0122291F |
quick coupling piece F 9N-4-350 001>>* |
|
(16) |
6Q0122291E |
quick coupling piece |
|
(16) |
6Q0122291E |
quick coupling piece F >> 9N-4-350 000* |
|
(17) |
6Q0122291F |
quick coupling piece |
|
(18A) |
6Y0121107G |
water hose F 9N-4-350 001>>* |
|
(18B) |
6Y0121108K |
water hose F 9N-4-350 001>>* |
|
(18C) |
03D103211B |
breather tube F 9N-4-350 001>>* see illustration: 103-03 POS.40 |
|
(2) |
03E121065A |
water pipe |
|
(2) |
03D121065B |
water pipe |
|
(29) |
G 012A8FA1 |
coolant additive, plus servicing materials 1.5ltr. |
|
(29) |
G 012A8FA8 |
coolant additive, plus servicing materials 55 ltr. |
|
(3) |
6Y0122157B |
water hose (coolant thermostat housing > heat exchanger) feed |
|
(30A) |
N 10461101 |
retainer A14-17XC01-22 |
|
(4) |
6Y0121109E |
water hose (expansion chamber > water pipe) F >> 9N-2D030 000* F >> 9N-2Y042 000* |
|
(4) |
6Y0121109F |
water hose (expansion chamber > water pipe) F 9N-2D030 001>>* F 9N-2Y042 001>>* |
|
(4) |
6Y0121109F |
water hose (expansion chamber > water pipe) |
|
(4) |
6Q0121109BN |
water hose (expansion chamber > water pipe) |
|
(7) |
6Y0122073B |
water hose (coolant thermostat housing > heat exchanger) return |
|
(9) |
6Q0121407A |
expansion tank F 9N-4-090 001>>* |
|
10 |
03D121028B |
v-belt pulley |
|
11 |
032121665A |
round seal 37,5X4 |
|
12 |
03C121666 |
round seal |
|
13 |
1H0121687A |
round seal 28,5X3,8 |
|
14 |
6Q0122051BP |
water hose (coolant thermostat housing > radiator) return |
|
15 |
6Q0122101BE |
water hose (thermostat > radiator) feed |
|
18 |
6Q0121447AJ |
water hose (reservoir > adapter) |
|
18A |
6Y0121107E |
water hose F >> 9N-4-350 000* |
|
18B |
6Y0121108G |
water hose F >> 9N-4-350 000* |
|
18C |
6Y0121164D |
water pipe F >> 9N-4-350 000* |
|
19 |
811807577C |
insert nut |
|
21 |
N 10292201 |
spring-type clip A14X12 |
|
22 |
N 90339603 |
cheese head bolt M8X37 |
|
23 |
N 90655501 |
spring-type clip 23X12 |
|
24 |
N 90655601 |
spring-type clip 27X12 |
|
25 |
N 90544202 |
hexagon socket head bolt with collar M8X11 |
|
26 |
N 90655801 |
spring-type clip 40X12 |
|
27 |
N 90765301 |
round seal 32X4-N |
|
28 |
N 90847201 |
double stud with hexagon drive 8X19/M6X15,5 |
|
3 |
6Q0121157S |
water hose (coolant thermostat housing > heat exchanger) feed |
|
30 |
6Q0121120E |
retainer |
|
30A |
N 10574901 |
retainer A1-8XC1-16 |
|
31 |
N 10226101 |
cheese head bolt M6X16 |
|
32 |
N 0150825 |
hexagon nut, shouldered M6 |
|
33 |
N 90971901 |
double stud with hexagon drive M6X14-M6X14 |
|
34 |
6Q0121065D |
water pipe heat exchanger |
|
35 |
N 01472613 |
allen key head bolt M8X30 |
|
36 |
N 90890501 |
round seal 17,12X2,62-N |
|
5 |
03C121142 |
retaining spring |
|
6 |
1J0121142 |
retaining spring |
|
7 |
6Q0121073AP |
water hose (coolant thermostat housing > heat exchanger) return |
|
8 |
1J0121321B |
locking cover |
|
9 |
6Q0121407 |
expansion tank F >> 9N-4-090 000* |
|
