Оригинальный
номер |
Название |
Заказ |

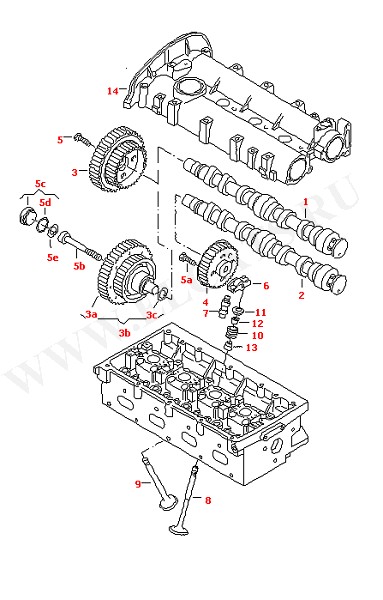

| (1) |
036109101DG |
camshaft intake |
|
| (1) |
036109101DH |
camshaft intake |
|
| (1) |
036109101BC |
camshaft F >> 6N-Y-650 000 intake |
|
| (1) |
036109101BP |
camshaft F 6N-1-000 001>> 6N-2-002 408* intake |
|
| (1) |
036109101CQ |
camshaft F 6N-2-002 409>>* intake |
|
| (1) |
036109101BP |
camshaft F >> 6N-2Y002 408* intake |
|
| (1) |
036109101CQ |
camshaft F 6N-2Y002 409>>* intake |
|
| (13) |
036109675A |
seal - valve stem 6MM |
|
| (2) |
036109101AG |
camshaft exhaust |
|
| (2) |
036109101BT |
camshaft exhaust |
|
| (3) |
036109111Q |
toothed belt pulley Z=48/33 |
|
| (3B) |
036109088L |
camshaft adjuster unit |
|
| (4) |
036109111G |
toothed belt pulley Z=33 |
|
| (6) |
036109411C |
roller rocker arm |
|
| (8) |
036109601AD |
intake valve 100,6 |
|
| 10 |
036109623H |
spring - valve |
|
| 11 |
036109641B |
spring disc upper |
|
| 12 |
036109651A |
cotter, split |
|
| 2 |
036109101AA |
camshaft exhaust |
|
| 3A |
. |
discontinued / replacement: 036 109 088 L |
|
| 5 |
N 90256201 |
hexagonal head bolt M10X1,25X30 |
|
| 5A |
N 90256201 |
hexagonal head bolt M10X1,25X30 |
|
| 5B |
036109282A |
bolt, with multi-spilne socket head M12X1,5LHX89 |
|
| 5C |
036109254A |
sealing plug also use: M27X1,5 *>>6N-Y-570000 036 109 497 A |
|
| 5E |
036109497A |
washer F 6N-Y-570 001>>* 12X22X1 |
|
| 7 |
030109423 |
equalizing element, hydraulic |
|
| 9 |
036109611K |
exhaust valve 100,9 |
|
